Der zweischneidige Vollhartmetallbohrer ECU-Drill-Steel bietet ein sehr gutes Preis-Leistungs-Verhältnis und ist die erste Wahl bei kleinen bis mittleren Stückzahlen.
Lieferbar innert 1-2 Arbeitstagen

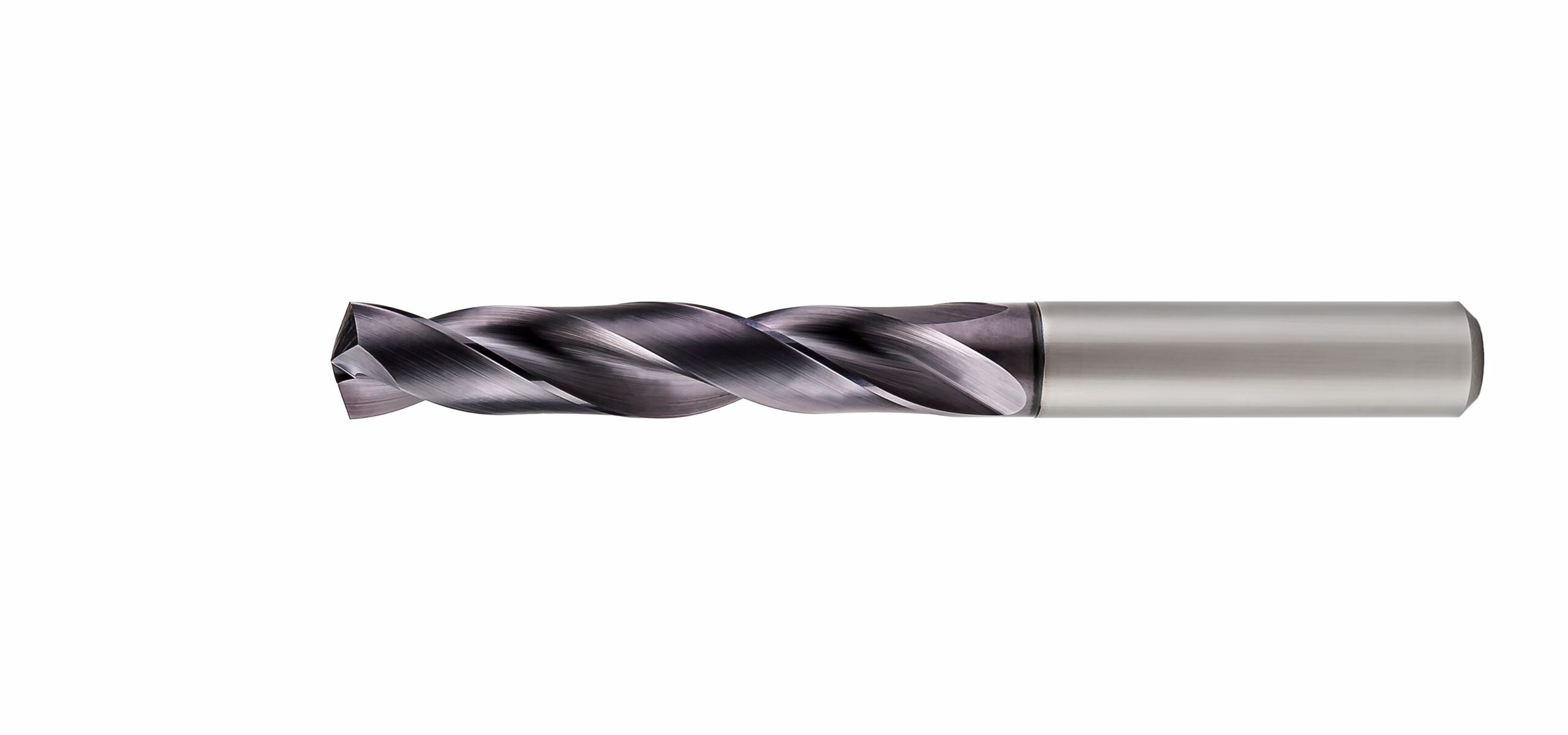

ECU-Drill-Steel 5xD
Produktbeschreibung
Technische Details
| Bohrertyp | Bohrer spiralisiert |
|---|---|
| Produktlinie | ECU-Drill-Steel |
| Schneidstoff | HM |
| Schneidenanzahl (z) | 2 |
| Schaftform | HA |
| BohrtiefexD | 5xD |
| Kühlmittelzufuhr | äussere Kühlmittelzufuhr |
| Marke | Miller |
| Beschichtet | Nein |
Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.
Downloads
Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.
| d1 | l1 | Kühlmittelzufuhr | d2 | l2 | l3 | Artikelnummer | Preis |
|---|---|---|---|---|---|---|---|
| 3.00 mm | 66.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 23.00 mm | M6005-0300AW | CHF 27.95 |
| 3.10 mm | 66.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 23.00 mm | M6005-0310AW | CHF 27.95 |
| 3.20 mm | 66.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 23.00 mm | M6005-0320AW | CHF 27.95 |
| 3.30 mm | 66.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 23.00 mm | M6005-0330AW | CHF 27.95 |
| 3.40 mm | 66.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 23.00 mm | M6005-0340AW | CHF 27.95 |
| 3.50 mm | 66.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 23.00 mm | M6005-0350AW | CHF 27.95 |
| 3.60 mm | 66.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 23.00 mm | M6005-0360AW | CHF 27.95 |
| 3.70 mm | 66.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 23.00 mm | M6005-0370AW | CHF 27.95 |
| 3.80 mm | 74.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M6005-0380AW | CHF 27.95 |
| 3.90 mm | 74.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M6005-0390AW | CHF 27.95 |
| 4.00 mm | 74.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M6005-0400AW | CHF 27.95 |
| 4.10 mm | 74.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M6005-0410AW | CHF 27.95 |
| 4.20 mm | 74.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M6005-0420AW | CHF 27.95 |
| 4.30 mm | 74.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M6005-0430AW | CHF 27.95 |
| 4.40 mm | 74.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M6005-0440AW | CHF 27.95 |
| 4.50 mm | 74.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M6005-0450AW | CHF 27.95 |
| 4.60 mm | 74.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M6005-0460AW | CHF 27.95 |
| 4.65 mm | 74.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M6005-0465AW | CHF 27.95 |
| 4.70 mm | 74.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M6005-0470AW | CHF 27.95 |
| 4.80 mm | 82.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M6005-0480AW | CHF 27.95 |
| 4.90 mm | 82.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M6005-0490AW | CHF 27.95 |
| 5.00 mm | 82.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M6005-0500AW | CHF 27.95 |
| 5.10 mm | 82.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M6005-0510AW | CHF 27.95 |
| 5.20 mm | 82.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M6005-0520AW | CHF 27.95 |
| 5.30 mm | 82.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M6005-0530AW | CHF 27.95 |
| 5.40 mm | 82.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M6005-0540AW | CHF 27.95 |
| 5.50 mm | 82.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M6005-0550AW | CHF 27.95 |
| 5.55 mm | 82.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M6005-0555AW | CHF 27.95 |
| 5.60 mm | 82.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M6005-0560AW | CHF 27.95 |
| 5.70 mm | 82.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M6005-0570AW | CHF 27.95 |
| 5.80 mm | 82.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M6005-0580AW | CHF 27.95 |
| 5.90 mm | 82.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M6005-0590AW | CHF 27.95 |
| 6.00 mm | 82.00 mm | äussere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M6005-0600AW | CHF 27.95 |
| 6.10 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0610AW | CHF 28.55 |
| 6.20 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0620AW | CHF 28.55 |
| 6.30 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0630AW | CHF 28.55 |
| 6.40 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0640AW | CHF 28.55 |
| 6.50 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0650AW | CHF 28.55 |
| 6.60 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0660AW | CHF 28.55 |
| 6.70 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0670AW | CHF 28.55 |
| 6.80 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0680AW | CHF 28.55 |
| 6.90 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0690AW | CHF 28.55 |
| 7.00 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0700AW | CHF 28.55 |
| 7.10 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0710AW | CHF 28.55 |
| 7.20 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0720AW | CHF 28.55 |
| 7.30 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0730AW | CHF 28.55 |
| 7.40 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0740AW | CHF 28.55 |
| 7.50 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0750AW | CHF 28.55 |
| 7.60 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0760AW | CHF 28.55 |
| 7.70 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0770AW | CHF 28.55 |
| 7.80 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0780AW | CHF 28.55 |
| 7.90 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0790AW | CHF 28.55 |
| 8.00 mm | 91.00 mm | äussere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M6005-0800AW | CHF 28.55 |
| 8.10 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0810AW | CHF 31.90 |
| 8.20 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0820AW | CHF 31.90 |
| 8.30 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0830AW | CHF 31.90 |
| 8.40 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0840AW | CHF 31.90 |
| 8.50 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0850AW | CHF 31.90 |
| 8.60 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0860AW | CHF 31.90 |
| 8.70 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0870AW | CHF 31.90 |
| 8.80 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0880AW | CHF 31.90 |
| 8.90 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0890AW | CHF 31.90 |
| 9.00 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0900AW | CHF 31.90 |
| 9.10 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0910AW | CHF 31.90 |
| 9.20 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0920AW | CHF 31.90 |
| 9.30 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0930AW | CHF 31.90 |
| 9.40 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0940AW | CHF 31.90 |
| 9.50 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0950AW | CHF 31.90 |
| 9.60 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0960AW | CHF 31.90 |
| 9.70 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0970AW | CHF 31.90 |
| 9.80 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0980AW | CHF 31.90 |
| 9.90 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-0990AW | CHF 31.90 |
| 10.00 mm | 103.00 mm | äussere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M6005-1000AW | CHF 31.90 |
| 10.10 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1010AW | CHF 47.25 |
| 10.20 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1020AW | CHF 47.25 |
| 10.30 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1030AW | CHF 47.25 |
| 10.40 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1040AW | CHF 47.25 |
| 10.50 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1050AW | CHF 47.25 |
| 10.60 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1060AW | CHF 47.25 |
| 10.80 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1080AW | CHF 47.25 |
| 11.00 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1100AW | CHF 47.25 |
| 11.10 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1110AW | CHF 47.25 |
| 11.20 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1120AW | CHF 47.25 |
| 11.30 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1130AW | CHF 47.25 |
| 11.40 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1140AW | CHF 47.25 |
| 11.50 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1150AW | CHF 47.25 |
| 11.60 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1160AW | CHF 47.25 |
| 11.70 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1170AW | CHF 47.25 |
| 11.80 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1180AW | CHF 47.25 |
| 11.90 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1190AW | CHF 47.25 |
| 12.00 mm | 118.00 mm | äussere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M6005-1200AW | CHF 47.25 |
| 12.20 mm | 124.00 mm | äussere Kühlmittelzufuhr | 14.00 mm | 77.00 mm | 60.00 mm | M6005-1220AW | CHF 62.50 |
| 12.50 mm | 124.00 mm | äussere Kühlmittelzufuhr | 14.00 mm | 77.00 mm | 60.00 mm | M6005-1250AW | CHF 62.50 |
| 12.70 mm | 124.00 mm | äussere Kühlmittelzufuhr | 14.00 mm | 77.00 mm | 60.00 mm | M6005-1270AW | CHF 62.50 |
| 12.80 mm | 124.00 mm | äussere Kühlmittelzufuhr | 14.00 mm | 77.00 mm | 60.00 mm | M6005-1280AW | CHF 62.50 |
| 13.00 mm | 124.00 mm | äussere Kühlmittelzufuhr | 14.00 mm | 77.00 mm | 60.00 mm | M6005-1300AW | CHF 62.50 |
| 13.10 mm | 124.00 mm | äussere Kühlmittelzufuhr | 14.00 mm | 77.00 mm | 60.00 mm | M6005-1310AW | CHF 62.50 |
| 13.50 mm | 124.00 mm | äussere Kühlmittelzufuhr | 14.00 mm | 77.00 mm | 60.00 mm | M6005-1350AW | CHF 62.50 |
| 13.70 mm | 124.00 mm | äussere Kühlmittelzufuhr | 14.00 mm | 77.00 mm | 60.00 mm | M6005-1370AW | CHF 62.50 |
| 13.80 mm | 124.00 mm | äussere Kühlmittelzufuhr | 14.00 mm | 77.00 mm | 60.00 mm | M6005-1380AW | CHF 62.50 |
| 14.00 mm | 124.00 mm | äussere Kühlmittelzufuhr | 14.00 mm | 77.00 mm | 60.00 mm | M6005-1400AW | CHF 62.50 |
| 14.20 mm | 133.00 mm | äussere Kühlmittelzufuhr | 16.00 mm | 83.00 mm | 63.00 mm | M6005-1420AW | CHF 80.90 |
| 14.50 mm | 133.00 mm | äussere Kühlmittelzufuhr | 16.00 mm | 83.00 mm | 63.00 mm | M6005-1450AW | CHF 80.90 |
| 14.70 mm | 133.00 mm | äussere Kühlmittelzufuhr | 16.00 mm | 83.00 mm | 63.00 mm | M6005-1470AW | CHF 80.90 |
| 14.80 mm | 133.00 mm | äussere Kühlmittelzufuhr | 16.00 mm | 83.00 mm | 63.00 mm | M6005-1480AW | CHF 80.90 |
| 15.00 mm | 133.00 mm | äussere Kühlmittelzufuhr | 16.00 mm | 83.00 mm | 63.00 mm | M6005-1500AW | CHF 80.90 |
| 15.50 mm | 133.00 mm | äussere Kühlmittelzufuhr | 16.00 mm | 83.00 mm | 63.00 mm | M6005-1550AW | CHF 80.90 |
| 15.70 mm | 133.00 mm | äussere Kühlmittelzufuhr | 16.00 mm | 83.00 mm | 63.00 mm | M6005-1570AW | CHF 80.90 |
| 15.80 mm | 133.00 mm | äussere Kühlmittelzufuhr | 16.00 mm | 83.00 mm | 63.00 mm | M6005-1580AW | CHF 80.90 |
| 16.00 mm | 133.00 mm | äussere Kühlmittelzufuhr | 16.00 mm | 83.00 mm | 63.00 mm | M6005-1600AW | CHF 80.90 |
| 16.50 mm | 143.00 mm | äussere Kühlmittelzufuhr | 18.00 mm | 93.00 mm | 71.00 mm | M6005-1650AW | CHF 129.00 |
| 17.00 mm | 143.00 mm | äussere Kühlmittelzufuhr | 18.00 mm | 93.00 mm | 71.00 mm | M6005-1700AW | CHF 129.00 |
| 17.50 mm | 143.00 mm | äussere Kühlmittelzufuhr | 18.00 mm | 93.00 mm | 71.00 mm | M6005-1750AW | CHF 129.00 |
| 18.00 mm | 143.00 mm | äussere Kühlmittelzufuhr | 18.00 mm | 93.00 mm | 71.00 mm | M6005-1800AW | CHF 129.00 |
| 18.50 mm | 153.00 mm | äussere Kühlmittelzufuhr | 20.00 mm | 101.00 mm | 77.00 mm | M6005-1850AW | CHF 140.50 |
| 18.80 mm | 153.00 mm | äussere Kühlmittelzufuhr | 20.00 mm | 101.00 mm | 77.00 mm | M6005-1880AW | CHF 140.50 |
| 19.00 mm | 153.00 mm | äussere Kühlmittelzufuhr | 20.00 mm | 101.00 mm | 77.00 mm | M6005-1900AW | CHF 140.50 |
| 19.80 mm | 153.00 mm | äussere Kühlmittelzufuhr | 20.00 mm | 101.00 mm | 77.00 mm | M6005-1980AW | CHF 140.50 |
| 20.00 mm | 153.00 mm | äussere Kühlmittelzufuhr | 20.00 mm | 101.00 mm | 77.00 mm | M6005-2000AW | CHF 140.50 |
Materialeignung
| P | P1 | P2 | P3 | P4 | P5 | P6 |
| M | M1 | M2 | M3 |
| K | K1 | K2 | K3 | K4 |
| N | N1 | N2 | N3 | N4 |
| S | S1 | S2 | S3 | S4 | S5 |
| H | H1 | H2 | H3 |
