Der zweischneidige Vollhartmetallbohrer ECU-Drill-Steel bietet ein sehr gutes Preis-Leistungs-Verhältnis und ist die erste Wahl bei kleinen bis mittleren Stückzahlen.
Lieferbar innert 1-2 Arbeitstagen

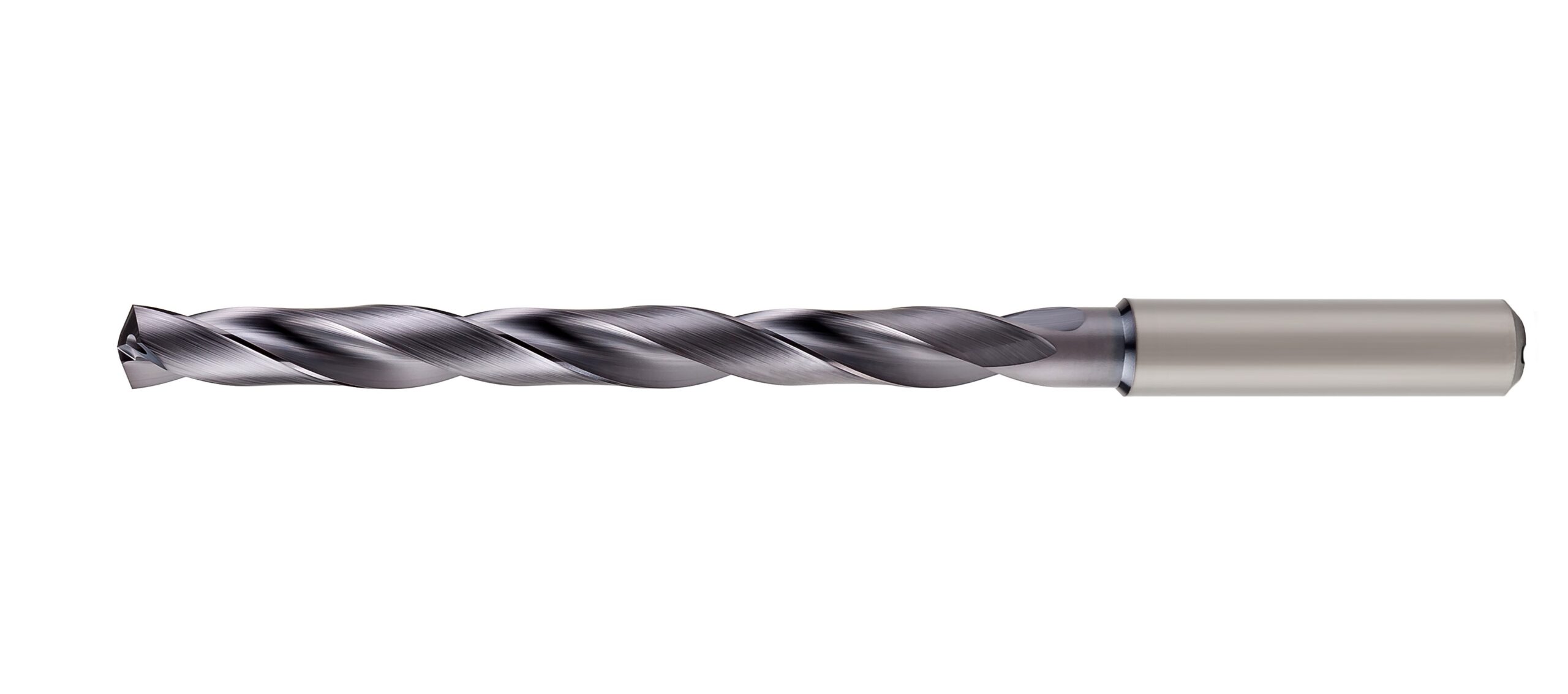

ECU-Drill-Steel 8xD
Produktbeschreibung
Technische Details
| Bohrertyp | Bohrer spiralisiert |
|---|---|
| Produktlinie | ECU-Drill-Steel |
| Schneidstoff | HM |
| Schneidenanzahl (z) | 2 |
| Schaftform | HA |
| BohrtiefexD | 8xD |
| Kühlmittelzufuhr | innere Kühlmittelzufuhr |
| Marke | Miller |
| Beschichtet | Ja |
| Beschichtung | MxF |
Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.
Downloads
Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

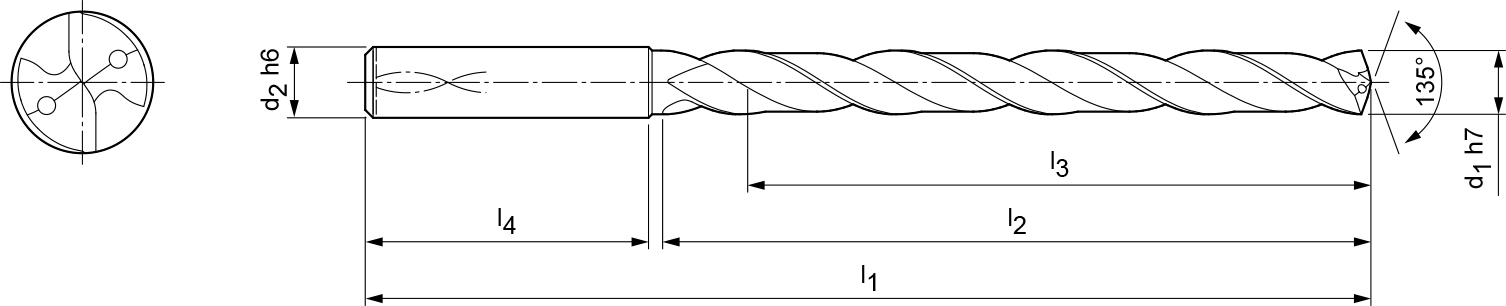

| d1 | l1 | Kühlmittelzufuhr | d2 | l2 | l3 | Artikelnummer | Preis | Lager |
|---|---|---|---|---|---|---|---|---|
| 3.00 mm | 72.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 34.00 mm | 29.00 mm | M6108-0300AE | CHF 81.20 | |
| 3.10 mm | 72.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 34.00 mm | 29.00 mm | M6108-0310AE | CHF 81.20 | |
| 3.20 mm | 72.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 34.00 mm | 29.00 mm | M6108-0320AE | CHF 81.20 | |
| 3.30 mm | 72.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 34.00 mm | 29.00 mm | M6108-0330AE | CHF 81.20 | |
| 3.40 mm | 72.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 34.00 mm | 29.00 mm | M6108-0340AE | CHF 81.20 | |
| 3.50 mm | 72.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 34.00 mm | 29.00 mm | M6108-0350AE | CHF 81.20 | |
| 3.60 mm | 72.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 34.00 mm | 29.00 mm | M6108-0360AE | CHF 81.20 | |
| 3.70 mm | 72.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 34.00 mm | 29.00 mm | M6108-0370AE | CHF 81.20 | |
| 3.80 mm | 81.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 43.00 mm | 36.00 mm | M6108-0380AE | CHF 81.20 | |
| 3.90 mm | 81.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 43.00 mm | 36.00 mm | M6108-0390AE | CHF 81.20 | |
| 4.00 mm | 81.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 43.00 mm | 36.00 mm | M6108-0400AE | CHF 81.20 | |
| 4.10 mm | 81.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 43.00 mm | 36.00 mm | M6108-0410AE | CHF 81.20 | |
| 4.20 mm | 81.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 43.00 mm | 36.00 mm | M6108-0420AE | CHF 81.20 | |
| 4.30 mm | 81.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 43.00 mm | 36.00 mm | M6108-0430AE | CHF 81.20 | |
| 4.40 mm | 81.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 43.00 mm | 36.00 mm | M6108-0440AE | CHF 81.20 | |
| 4.50 mm | 81.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 43.00 mm | 36.00 mm | M6108-0450AE | CHF 81.20 | |
| 4.60 mm | 81.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 43.00 mm | 36.00 mm | M6108-0460AE | CHF 81.20 | |
| 4.70 mm | 81.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 43.00 mm | 36.00 mm | M6108-0470AE | CHF 81.20 | |
| 4.80 mm | 95.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 57.00 mm | 48.00 mm | M6108-0480AE | CHF 81.20 | |
| 4.90 mm | 95.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 57.00 mm | 48.00 mm | M6108-0490AE | CHF 81.20 | |
| 5.00 mm | 95.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 57.00 mm | 48.00 mm | M6108-0500AE | CHF 81.20 | |
| 5.10 mm | 95.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 57.00 mm | 48.00 mm | M6108-0510AE | CHF 81.20 | |
| 5.20 mm | 95.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 57.00 mm | 48.00 mm | M6108-0520AE | CHF 81.20 | |
| 5.30 mm | 95.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 57.00 mm | 48.00 mm | M6108-0530AE | CHF 81.20 | |
| 5.50 mm | 95.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 57.00 mm | 48.00 mm | M6108-0550AE | CHF 81.20 | |
| 5.70 mm | 95.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 57.00 mm | 48.00 mm | M6108-0570AE | CHF 81.20 | |
| 5.80 mm | 95.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 57.00 mm | 48.00 mm | M6108-0580AE | CHF 81.20 | |
| 5.90 mm | 95.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 57.00 mm | 48.00 mm | M6108-0590AE | CHF 81.20 | |
| 6.00 mm | 95.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 57.00 mm | 48.00 mm | M6108-0600AE | CHF 81.20 | |
| 6.10 mm | 114.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 76.00 mm | 64.00 mm | M6108-0610AE | CHF 101.00 | |
| 6.20 mm | 114.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 76.00 mm | 64.00 mm | M6108-0620AE | CHF 101.00 | |
| 6.30 mm | 114.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 76.00 mm | 64.00 mm | M6108-0630AE | CHF 101.00 | |
| 6.50 mm | 114.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 76.00 mm | 64.00 mm | M6108-0650AE | CHF 101.00 | |
| 6.60 mm | 114.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 76.00 mm | 64.00 mm | M6108-0660AE | CHF 101.00 | |
| 6.70 mm | 114.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 76.00 mm | 64.00 mm | M6108-0670AE | CHF 101.00 | |
| 6.80 mm | 114.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 76.00 mm | 64.00 mm | M6108-0680AE | CHF 101.00 | |
| 6.90 mm | 114.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 76.00 mm | 64.00 mm | M6108-0690AE | CHF 101.00 | |
| 7.00 mm | 114.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 76.00 mm | 64.00 mm | M6108-0700AE | CHF 101.00 | |
| 7.10 mm | 114.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 76.00 mm | 64.00 mm | M6108-0710AE | CHF 101.00 | |
| 7.40 mm | 114.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 76.00 mm | 64.00 mm | M6108-0740AE | CHF 101.00 | |
| 7.50 mm | 114.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 76.00 mm | 64.00 mm | M6108-0750AE | CHF 101.00 | |
| 7.70 mm | 114.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 76.00 mm | 64.00 mm | M6108-0770AE | CHF 101.00 | |
| 7.80 mm | 114.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 76.00 mm | 64.00 mm | M6108-0780AE | CHF 101.00 | |
| 7.90 mm | 114.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 76.00 mm | 64.00 mm | M6108-0790AE | CHF 101.00 | |
| 8.00 mm | 114.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 76.00 mm | 64.00 mm | M6108-0800AE | CHF 101.00 | |
| 8.10 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-0810AE | CHF 124.00 | |
| 8.20 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-0820AE | CHF 124.00 | |
| 8.30 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-0830AE | CHF 124.00 | |
| 8.50 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-0850AE | CHF 124.00 | |
| 8.60 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-0860AE | CHF 124.00 | |
| 8.70 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-0870AE | CHF 124.00 | |
| 8.80 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-0880AE | CHF 124.00 | |
| 9.00 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-0900AE | CHF 124.00 | |
| 9.10 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-0910AE | CHF 124.00 | |
| 9.20 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-0920AE | CHF 124.00 | |
| 9.30 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-0930AE | CHF 124.00 | |
| 9.40 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-0940AE | CHF 124.00 | |
| 9.50 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-0950AE | CHF 124.00 | |
| 9.70 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-0970AE | CHF 124.00 | |
| 9.80 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-0980AE | CHF 124.00 | |
| 9.90 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-0990AE | CHF 124.00 | |
| 10.00 mm | 142.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 95.00 mm | 80.00 mm | M6108-1000AE | CHF 124.00 | |
| 10.20 mm | 162.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 114.00 mm | 96.00 mm | M6108-1020AE | CHF 170.00 | |
| 10.30 mm | 162.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 114.00 mm | 96.00 mm | M6108-1030AE | CHF 170.00 | |
| 10.50 mm | 162.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 114.00 mm | 96.00 mm | M6108-1050AE | CHF 170.00 | |
| 10.80 mm | 162.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 114.00 mm | 96.00 mm | M6108-1080AE | CHF 170.00 | |
| 11.00 mm | 162.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 114.00 mm | 96.00 mm | M6108-1100AE | CHF 170.00 | |
| 11.20 mm | 162.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 114.00 mm | 96.00 mm | M6108-1120AE | CHF 170.00 | |
| 11.50 mm | 162.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 114.00 mm | 96.00 mm | M6108-1150AE | CHF 170.00 | |
| 11.70 mm | 162.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 114.00 mm | 96.00 mm | M6108-1170AE | CHF 170.00 | |
| 11.80 mm | 162.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 114.00 mm | 96.00 mm | M6108-1180AE | CHF 170.00 | |
| 12.00 mm | 162.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 114.00 mm | 96.00 mm | M6108-1200AE | CHF 170.00 | |
| 12.20 mm | 178.00 mm | innere Kühlmittelzufuhr | 14.00 mm | 133.00 mm | 112.00 mm | M6108-1220AE | CHF 254.50 | |
| 12.50 mm | 178.00 mm | innere Kühlmittelzufuhr | 14.00 mm | 133.00 mm | 112.00 mm | M6108-1250AE | CHF 254.50 | |
| 12.80 mm | 178.00 mm | innere Kühlmittelzufuhr | 14.00 mm | 133.00 mm | 112.00 mm | M6108-1280AE | CHF 254.50 | |
| 13.00 mm | 178.00 mm | innere Kühlmittelzufuhr | 14.00 mm | 133.00 mm | 112.00 mm | M6108-1300AE | CHF 254.50 | |
| 13.50 mm | 178.00 mm | innere Kühlmittelzufuhr | 14.00 mm | 133.00 mm | 112.00 mm | M6108-1350AE | CHF 254.50 | |
| 13.80 mm | 178.00 mm | innere Kühlmittelzufuhr | 14.00 mm | 133.00 mm | 112.00 mm | M6108-1380AE | CHF 254.50 | |
| 14.00 mm | 178.00 mm | innere Kühlmittelzufuhr | 14.00 mm | 133.00 mm | 112.00 mm | M6108-1400AE | CHF 254.50 | |
| 14.50 mm | 203.00 mm | innere Kühlmittelzufuhr | 16.00 mm | 152.00 mm | 128.00 mm | M6108-1450AE | CHF 335.50 | |
| 15.00 mm | 203.00 mm | innere Kühlmittelzufuhr | 16.00 mm | 152.00 mm | 128.00 mm | M6108-1500AE | CHF 335.50 | |
| 15.50 mm | 203.00 mm | innere Kühlmittelzufuhr | 16.00 mm | 152.00 mm | 128.00 mm | M6108-1550AE | CHF 335.50 | |
| 15.80 mm | 203.00 mm | innere Kühlmittelzufuhr | 16.00 mm | 152.00 mm | 128.00 mm | M6108-1580AE | CHF 335.50 | |
| 16.00 mm | 203.00 mm | innere Kühlmittelzufuhr | 16.00 mm | 152.00 mm | 128.00 mm | M6108-1600AE | CHF 335.50 | |
| 16.50 mm | 222.00 mm | innere Kühlmittelzufuhr | 18.00 mm | 171.00 mm | 144.00 mm | M6108-1650AE | CHF 423.00 | |
| 17.00 mm | 222.00 mm | innere Kühlmittelzufuhr | 18.00 mm | 171.00 mm | 144.00 mm | M6108-1700AE | CHF 423.00 | |
| 17.50 mm | 222.00 mm | innere Kühlmittelzufuhr | 18.00 mm | 171.00 mm | 144.00 mm | M6108-1750AE | CHF 423.00 | |
| 18.00 mm | 222.00 mm | innere Kühlmittelzufuhr | 18.00 mm | 171.00 mm | 144.00 mm | M6108-1800AE | CHF 423.00 | |
| 18.50 mm | 243.00 mm | innere Kühlmittelzufuhr | 20.00 mm | 190.00 mm | 160.00 mm | M6108-1850AE | CHF 485.00 | |
| 19.00 mm | 243.00 mm | innere Kühlmittelzufuhr | 20.00 mm | 190.00 mm | 160.00 mm | M6108-1900AE | CHF 485.00 | |
| 20.00 mm | 243.00 mm | innere Kühlmittelzufuhr | 20.00 mm | 190.00 mm | 160.00 mm | M6108-2000AE | CHF 485.00 |
Materialeignung
| P | P1 | P2 | P3 | P4 | P5 | P6 |
| M | M1 | M2 | M3 |
| K | K1 | K2 | K3 | K4 |
| N | N1 | N2 | N3 | N4 |
| S | S1 | S2 | S3 | S4 | S5 |
| H | H1 | H2 | H3 |
