MEGA-Drill-Inox 3xD

Artikelnummer:

Lieferbar innert 1-2 Arbeitstagen

Lieferbar ab externem Lager innert

Durchmesser (d1)

Gesamtlänge (l1)

Kühlmittelzufuhr

Zurücksetzen

Produktbeschreibung

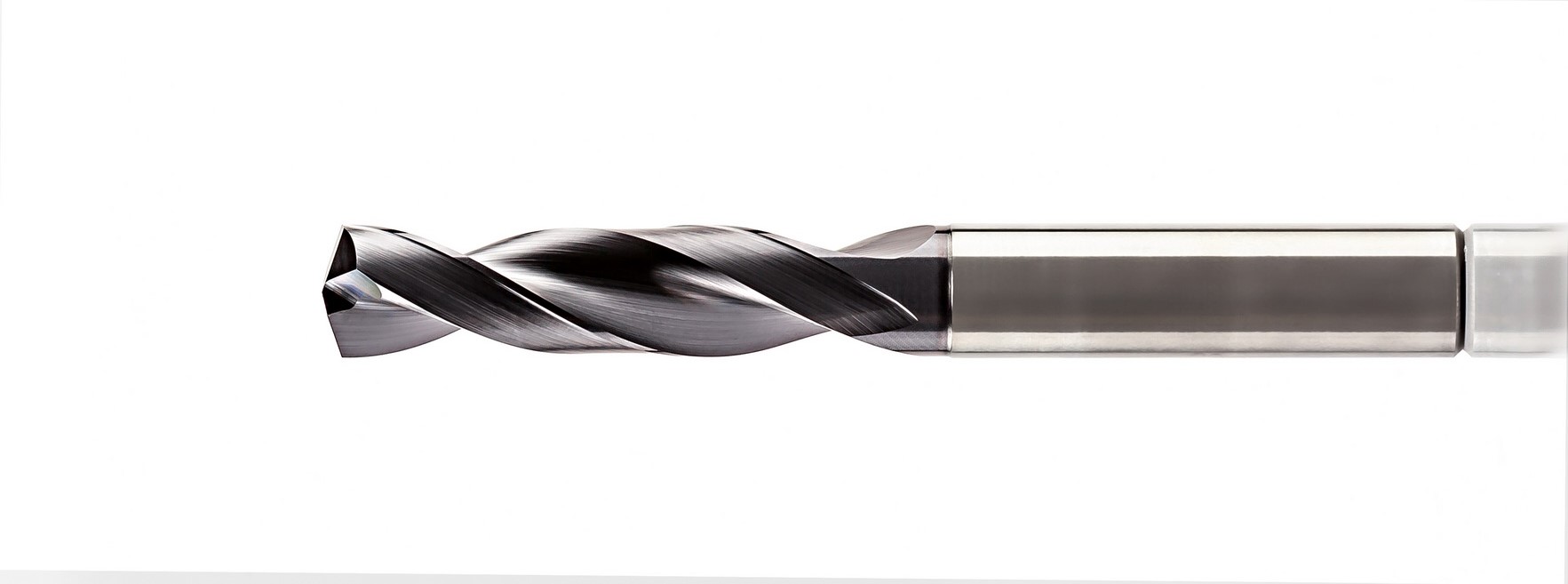

Der MEGA-Drill-Inox hat zusätzlich zu seiner sehr scharfen Schneide mit spezieller Schneidkantenpräparation eine optimierte Spankammer mit einer abgerundeten Geometrie.

Zum Katalog

Technische Details

Bohrertyp	Bohrer spiralisiert
Produktlinie	MEGA-Drill-Inox
Schneidstoff	HM
Schneidenanzahl (z)	2
Schaftform	HA
BohrtiefexD	3xD
Kühlmittelzufuhr	äussere Kühlmittelzufuhr
Marke	Miller
Beschichtet	Ja
Beschichtung	MxF

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Downloads

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

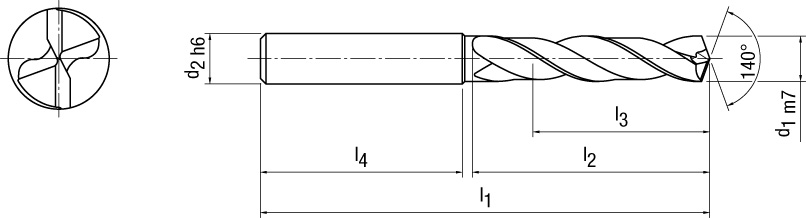

d1	l1	d2	l2	l3	Artikelnummer	Preis
2.00 mm	58.00 mm	6.00 mm	16.00 mm	14.00 mm	M1703-0200AE	CHF 57.20
2.10 mm	58.00 mm	6.00 mm	16.00 mm	14.00 mm	M1703-0210AE	CHF 57.20
2.30 mm	58.00 mm	6.00 mm	16.00 mm	14.00 mm	M1703-0230AE	CHF 57.20
2.40 mm	58.00 mm	6.00 mm	16.00 mm	14.00 mm	M1703-0240AE	CHF 57.20
2.50 mm	58.00 mm	6.00 mm	16.00 mm	14.00 mm	M1703-0250AE	CHF 57.20
2.70 mm	58.00 mm	6.00 mm	16.00 mm	14.00 mm	M1703-0270AE	CHF 57.20
3.00 mm	62.00 mm	6.00 mm	22.00 mm	14.00 mm	M1703-0300AE	CHF 57.20
3.10 mm	62.00 mm	6.00 mm	22.00 mm	14.00 mm	M1703-0310AE	CHF 57.20
3.20 mm	62.00 mm	6.00 mm	22.00 mm	14.00 mm	M1703-0320AE	CHF 57.20
3.22 mm	62.00 mm	6.00 mm	22.00 mm	14.00 mm	M1703-0322AE	CHF 57.20
3.25 mm	62.00 mm	6.00 mm	22.00 mm	14.00 mm	M1703-0325AE	CHF 57.20
3.30 mm	62.00 mm	6.00 mm	22.00 mm	14.00 mm	M1703-0330AE	CHF 57.20
3.40 mm	62.00 mm	6.00 mm	22.00 mm	14.00 mm	M1703-0340AE	CHF 57.20
3.50 mm	62.00 mm	6.00 mm	22.00 mm	14.00 mm	M1703-0350AE	CHF 57.20
3.60 mm	62.00 mm	6.00 mm	22.00 mm	14.00 mm	M1703-0360AE	CHF 57.20
3.70 mm	62.00 mm	6.00 mm	22.00 mm	14.00 mm	M1703-0370AE	CHF 57.20
3.80 mm	66.00 mm	6.00 mm	26.00 mm	17.00 mm	M1703-0380AE	CHF 57.20
3.90 mm	66.00 mm	6.00 mm	26.00 mm	17.00 mm	M1703-0390AE	CHF 57.20
4.00 mm	66.00 mm	6.00 mm	26.00 mm	17.00 mm	M1703-0400AE	CHF 57.20
4.05 mm	66.00 mm	6.00 mm	26.00 mm	17.00 mm	M1703-0405AE	CHF 57.20
4.10 mm	66.00 mm	6.00 mm	26.00 mm	17.00 mm	M1703-0410AE	CHF 57.20
4.20 mm	66.00 mm	6.00 mm	26.00 mm	17.00 mm	M1703-0420AE	CHF 57.20
4.30 mm	66.00 mm	6.00 mm	26.00 mm	17.00 mm	M1703-0430AE	CHF 57.20
4.35 mm	66.00 mm	6.00 mm	26.00 mm	17.00 mm	M1703-0435AE	CHF 57.20
4.40 mm	66.00 mm	6.00 mm	26.00 mm	17.00 mm	M1703-0440AE	CHF 57.20
4.50 mm	66.00 mm	6.00 mm	26.00 mm	17.00 mm	M1703-0450AE	CHF 57.20
4.60 mm	66.00 mm	6.00 mm	26.00 mm	17.00 mm	M1703-0460AE	CHF 57.20
4.65 mm	66.00 mm	6.00 mm	26.00 mm	17.00 mm	M1703-0465AE	CHF 57.20
4.70 mm	66.00 mm	6.00 mm	26.00 mm	17.00 mm	M1703-0470AE	CHF 57.20
4.80 mm	66.00 mm	6.00 mm	30.00 mm	20.00 mm	M1703-0480AE	CHF 57.20
4.90 mm	66.00 mm	6.00 mm	30.00 mm	20.00 mm	M1703-0490AE	CHF 57.20
5.00 mm	66.00 mm	6.00 mm	30.00 mm	20.00 mm	M1703-0500AE	CHF 57.20
5.03 mm	66.00 mm	6.00 mm	30.00 mm	20.00 mm	M1703-0503AE	CHF 57.20
5.10 mm	66.00 mm	6.00 mm	30.00 mm	20.00 mm	M1703-0510AE	CHF 57.20
5.20 mm	66.00 mm	6.00 mm	30.00 mm	20.00 mm	M1703-0520AE	CHF 57.20
5.30 mm	66.00 mm	6.00 mm	30.00 mm	20.00 mm	M1703-0530AE	CHF 57.20
5.40 mm	66.00 mm	6.00 mm	30.00 mm	20.00 mm	M1703-0540AE	CHF 57.20
5.50 mm	66.00 mm	6.00 mm	30.00 mm	20.00 mm	M1703-0550AE	CHF 57.20
5.55 mm	66.00 mm	6.00 mm	30.00 mm	20.00 mm	M1703-0555AE	CHF 57.20
5.60 mm	66.00 mm	6.00 mm	30.00 mm	20.00 mm	M1703-0560AE	CHF 57.20
5.70 mm	66.00 mm	6.00 mm	30.00 mm	20.00 mm	M1703-0570AE	CHF 57.20
5.80 mm	66.00 mm	6.00 mm	30.00 mm	20.00 mm	M1703-0580AE	CHF 57.20
5.90 mm	66.00 mm	6.00 mm	30.00 mm	20.00 mm	M1703-0590AE	CHF 57.20
6.00 mm	66.00 mm	6.00 mm	30.00 mm	20.00 mm	M1703-0600AE	CHF 57.20
6.10 mm	79.00 mm	8.00 mm	38.00 mm	24.00 mm	M1703-0610AE	CHF 73.90
6.20 mm	79.00 mm	8.00 mm	38.00 mm	24.00 mm	M1703-0620AE	CHF 73.90
6.30 mm	79.00 mm	8.00 mm	38.00 mm	24.00 mm	M1703-0630AE	CHF 73.90
6.40 mm	79.00 mm	8.00 mm	38.00 mm	24.00 mm	M1703-0640AE	CHF 73.90
6.50 mm	79.00 mm	8.00 mm	38.00 mm	24.00 mm	M1703-0650AE	CHF 73.90
6.60 mm	79.00 mm	8.00 mm	38.00 mm	24.00 mm	M1703-0660AE	CHF 73.90
6.70 mm	79.00 mm	8.00 mm	38.00 mm	24.00 mm	M1703-0670AE	CHF 73.90
6.80 mm	79.00 mm	8.00 mm	38.00 mm	24.00 mm	M1703-0680AE	CHF 73.90
6.90 mm	79.00 mm	8.00 mm	38.00 mm	24.00 mm	M1703-0690AE	CHF 73.90
7.00 mm	79.00 mm	8.00 mm	38.00 mm	24.00 mm	M1703-0700AE	CHF 73.90
7.20 mm	79.00 mm	8.00 mm	42.00 mm	29.00 mm	M1703-0720AE	CHF 73.90
7.40 mm	79.00 mm	8.00 mm	42.00 mm	29.00 mm	M1703-0740AE	CHF 73.90
7.45 mm	79.00 mm	8.00 mm	42.00 mm	29.00 mm	M1703-0745AE	CHF 73.90
7.50 mm	79.00 mm	8.00 mm	42.00 mm	29.00 mm	M1703-0750AE	CHF 73.90
7.70 mm	79.00 mm	8.00 mm	42.00 mm	29.00 mm	M1703-0770AE	CHF 73.90
7.80 mm	79.00 mm	8.00 mm	42.00 mm	29.00 mm	M1703-0780AE	CHF 73.90
7.90 mm	79.00 mm	8.00 mm	42.00 mm	29.00 mm	M1703-0790AE	CHF 73.90
8.00 mm	79.00 mm	8.00 mm	42.00 mm	29.00 mm	M1703-0800AE	CHF 73.90
8.10 mm	89.00 mm	10.00 mm	49.00 mm	35.00 mm	M1703-0810AE	CHF 95.90
8.20 mm	89.00 mm	10.00 mm	49.00 mm	35.00 mm	M1703-0820AE	CHF 95.90
8.30 mm	89.00 mm	10.00 mm	49.00 mm	35.00 mm	M1703-0830AE	CHF 95.90
8.40 mm	89.00 mm	10.00 mm	49.00 mm	35.00 mm	M1703-0840AE	CHF 95.90
8.50 mm	89.00 mm	10.00 mm	49.00 mm	35.00 mm	M1703-0850AE	CHF 95.90
8.60 mm	89.00 mm	10.00 mm	49.00 mm	35.00 mm	M1703-0860AE	CHF 95.90
8.70 mm	89.00 mm	10.00 mm	49.00 mm	35.00 mm	M1703-0870AE	CHF 95.90
8.80 mm	89.00 mm	10.00 mm	49.00 mm	35.00 mm	M1703-0880AE	CHF 95.90
8.90 mm	89.00 mm	10.00 mm	49.00 mm	35.00 mm	M1703-0890AE	CHF 95.90
9.00 mm	89.00 mm	10.00 mm	49.00 mm	35.00 mm	M1703-0900AE	CHF 95.90
9.10 mm	89.00 mm	10.00 mm	49.00 mm	35.00 mm	M1703-0910AE	CHF 95.90
9.50 mm	89.00 mm	10.00 mm	49.00 mm	35.00 mm	M1703-0950AE	CHF 95.90
9.80 mm	89.00 mm	10.00 mm	49.00 mm	35.00 mm	M1703-0980AE	CHF 95.90
9.90 mm	89.00 mm	10.00 mm	49.00 mm	35.00 mm	M1703-0990AE	CHF 95.90
10.00 mm	89.00 mm	10.00 mm	49.00 mm	35.00 mm	M1703-1000AE	CHF 95.90
10.10 mm	102.00 mm	12.00 mm	56.00 mm	40.00 mm	M1703-1010AE	CHF 133.00
10.20 mm	102.00 mm	12.00 mm	56.00 mm	40.00 mm	M1703-1020AE	CHF 133.00
10.30 mm	102.00 mm	12.00 mm	56.00 mm	40.00 mm	M1703-1030AE	CHF 133.00
10.50 mm	102.00 mm	12.00 mm	56.00 mm	40.00 mm	M1703-1050AE	CHF 133.00
11.00 mm	102.00 mm	12.00 mm	56.00 mm	40.00 mm	M1703-1100AE	CHF 133.00
11.50 mm	102.00 mm	12.00 mm	56.00 mm	40.00 mm	M1703-1150AE	CHF 133.00
11.80 mm	102.00 mm	12.00 mm	56.00 mm	40.00 mm	M1703-1180AE	CHF 133.00
12.00 mm	102.00 mm	12.00 mm	56.00 mm	40.00 mm	M1703-1200AE	CHF 133.00
12.15 mm	107.00 mm	14.00 mm	61.00 mm	43.00 mm	M1703-1215AE	CHF 165.50
12.50 mm	107.00 mm	14.00 mm	61.00 mm	43.00 mm	M1703-1250AE	CHF 165.50
12.80 mm	107.00 mm	14.00 mm	61.00 mm	43.00 mm	M1703-1280AE	CHF 165.50
13.00 mm	107.00 mm	14.00 mm	61.00 mm	43.00 mm	M1703-1300AE	CHF 165.50
13.80 mm	107.00 mm	14.00 mm	61.00 mm	43.00 mm	M1703-1380AE	CHF 165.50
14.00 mm	107.00 mm	14.00 mm	61.00 mm	43.00 mm	M1703-1400AE	CHF 165.50
15.00 mm	115.00 mm	16.00 mm	65.00 mm	45.00 mm	M1703-1500AE	CHF 229.50
16.00 mm	115.00 mm	16.00 mm	65.00 mm	45.00 mm	M1703-1600AE	CHF 229.50
17.00 mm	123.00 mm	18.00 mm	73.00 mm	51.00 mm	M1703-1700AE	CHF 340.50
18.00 mm	123.00 mm	18.00 mm	73.00 mm	51.00 mm	M1703-1800AE	CHF 340.50
19.00 mm	131.00 mm	20.00 mm	79.00 mm	55.00 mm	M1703-1900AE	CHF 377.00

Materialeignung

P	P1	P2	P3	P4	P5	P6
P

M	M1	M2	M3
M

K	K1	K2	K3	K4
K

N	N1	N2	N3	N4
N

S	S1	S2	S3	S4	S5
S

H	H1	H2	H3
H
