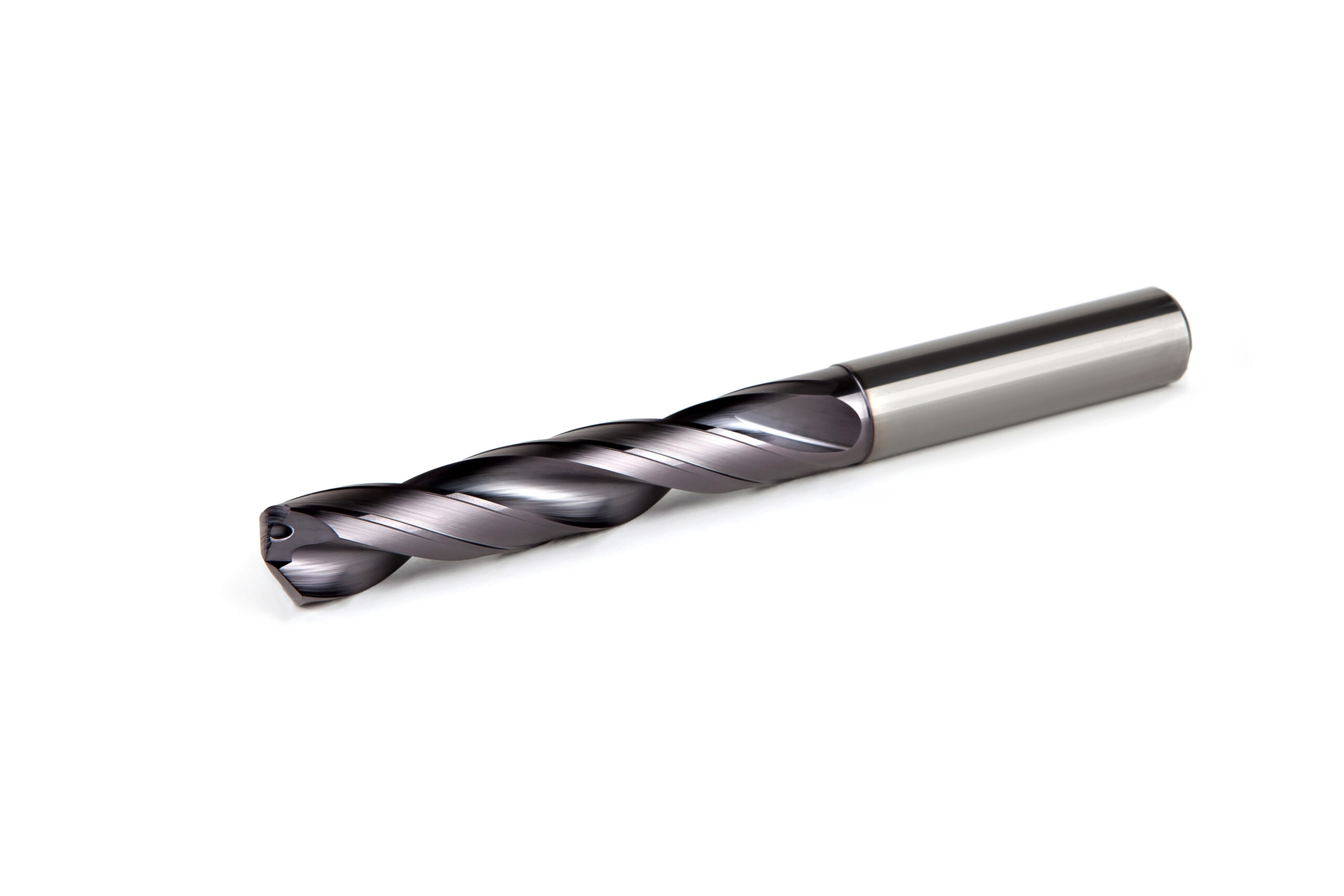

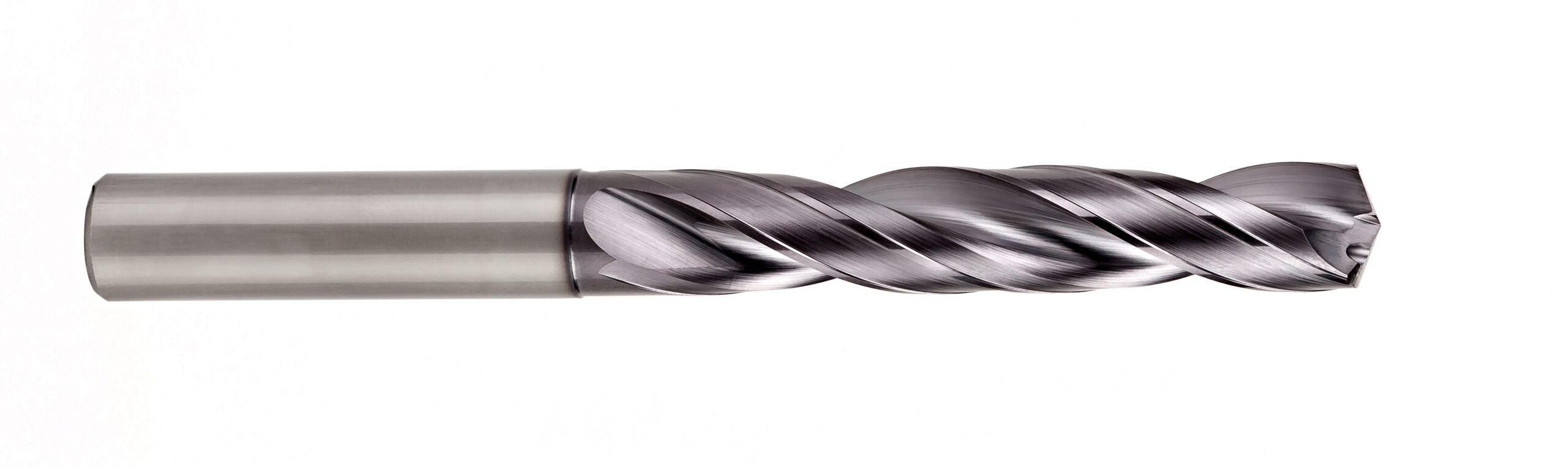

«Der zweischneidige Vollhartmetallbohrer MEGA-Quadro-Drill-Plus wurde speziell für präzise Bohrungen entwickelt. Die insgesamt vier Führungsfasen ermöglichen maximale Bohrungsqualität hinsichtlich Fluchtgenauigkeit, Koaxialität und Positionsgenauigkeit.
| Bohrertyp | Bohrer spiralisiert |
|---|---|
| Produktlinie | MEGA-Quadro-Drill-Plus |
| Schneidstoff | HM |
| Schneidenanzahl (z) | 2 |
| Schaftform | HA |
| BohrtiefexD | 5xD |
| Kühlmittelzufuhr | innere Kühlmittelzufuhr |
| Marke | Miller |
| Beschichtet | Ja |
| Beschichtung | Mx2 |
Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.
Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

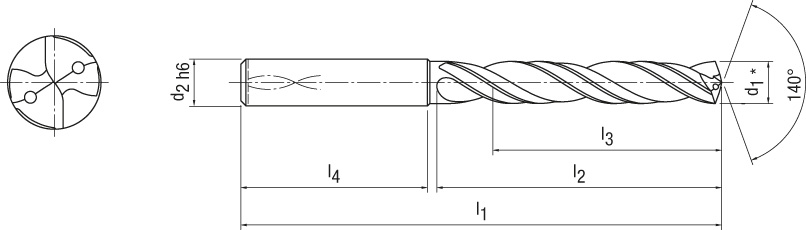

| d1 | l1 | Kühlmittelzufuhr | d2 | l2 | l3 | Artikelnummer | Preis |
|---|---|---|---|---|---|---|---|
| 3.00 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 23.00 mm | M2175P-0300AR | CHF 94.60 |
| 3.10 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 23.00 mm | M2175P-0310AR | CHF 94.60 |
| 3.20 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 23.00 mm | M2175P-0320AR | CHF 94.60 |
| 3.30 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 23.00 mm | M2175P-0330AR | CHF 94.60 |
| 3.40 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 23.00 mm | M2175P-0340AR | CHF 94.60 |
| 3.50 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 23.00 mm | M2175P-0350AR | CHF 94.60 |
| 3.70 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 23.00 mm | M2175P-0370AR | CHF 94.60 |
| 3.80 mm | 74.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M2175P-0380AR | CHF 94.60 |
| 3.90 mm | 74.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M2175P-0390AR | CHF 94.60 |
| 4.00 mm | 74.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M2175P-0400AR | CHF 94.60 |
| 4.20 mm | 74.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M2175P-0420AR | CHF 94.60 |
| 4.30 mm | 74.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M2175P-0430AR | CHF 94.60 |
| 4.50 mm | 74.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 36.00 mm | 29.00 mm | M2175P-0450AR | CHF 94.60 |
| 4.80 mm | 82.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M2175P-0480AR | CHF 94.60 |
| 5.00 mm | 82.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M2175P-0500AR | CHF 94.60 |
| 5.10 mm | 82.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M2175P-0510AR | CHF 94.60 |
| 5.20 mm | 82.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M2175P-0520AR | CHF 94.60 |
| 5.30 mm | 82.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M2175P-0530AR | CHF 94.60 |
| 5.50 mm | 82.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M2175P-0550AR | CHF 94.60 |
| 5.60 mm | 82.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M2175P-0560AR | CHF 94.60 |
| 5.80 mm | 82.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M2175P-0580AR | CHF 94.60 |
| 5.90 mm | 82.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M2175P-0590AR | CHF 94.60 |
| 6.00 mm | 82.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 44.00 mm | 35.00 mm | M2175P-0600AR | CHF 94.60 |
| 6.40 mm | 91.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M2175P-0640AR | CHF 106.50 |
| 6.50 mm | 91.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M2175P-0650AR | CHF 106.50 |
| 6.60 mm | 91.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M2175P-0660AR | CHF 106.50 |
| 6.70 mm | 91.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M2175P-0670AR | CHF 106.50 |
| 6.80 mm | 91.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M2175P-0680AR | CHF 106.50 |
| 6.90 mm | 91.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M2175P-0690AR | CHF 106.50 |
| 7.00 mm | 91.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M2175P-0700AR | CHF 106.50 |
| 7.20 mm | 91.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M2175P-0720AR | CHF 106.50 |
| 7.40 mm | 91.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M2175P-0740AR | CHF 106.50 |
| 7.50 mm | 91.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M2175P-0750AR | CHF 106.50 |
| 7.80 mm | 91.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M2175P-0780AR | CHF 106.50 |
| 7.90 mm | 91.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M2175P-0790AR | CHF 106.50 |
| 8.00 mm | 91.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 53.00 mm | 43.00 mm | M2175P-0800AR | CHF 106.50 |
| 8.10 mm | 103.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M2175P-0810AR | CHF 153.50 |
| 8.30 mm | 103.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M2175P-0830AR | CHF 153.50 |
| 8.40 mm | 103.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M2175P-0840AR | CHF 153.50 |
| 8.50 mm | 103.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M2175P-0850AR | CHF 153.50 |
| 8.60 mm | 103.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M2175P-0860AR | CHF 153.50 |
| 8.80 mm | 103.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M2175P-0880AR | CHF 153.50 |
| 9.00 mm | 103.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M2175P-0900AR | CHF 153.50 |
| 9.20 mm | 103.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M2175P-0920AR | CHF 153.50 |
| 9.30 mm | 103.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M2175P-0930AR | CHF 153.50 |
| 9.50 mm | 103.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M2175P-0950AR | CHF 153.50 |
| 9.80 mm | 103.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M2175P-0980AR | CHF 153.50 |
| 9.90 mm | 103.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M2175P-0990AR | CHF 153.50 |
| 10.00 mm | 103.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 61.00 mm | 49.00 mm | M2175P-1000AR | CHF 153.50 |
| 10.20 mm | 118.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M2175P-1020AR | CHF 217.00 |
| 10.30 mm | 118.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M2175P-1030AR | CHF 217.00 |
| 10.40 mm | 118.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M2175P-1040AR | CHF 217.00 |
| 10.50 mm | 118.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M2175P-1050AR | CHF 217.00 |
| 10.90 mm | 118.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M2175P-1090AR | CHF 217.00 |
| 11.00 mm | 118.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M2175P-1100AR | CHF 217.00 |
| 11.50 mm | 118.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M2175P-1150AR | CHF 217.00 |
| 11.70 mm | 118.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M2175P-1170AR | CHF 217.00 |
| 11.80 mm | 118.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M2175P-1180AR | CHF 217.00 |
| 12.00 mm | 118.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 71.00 mm | 56.00 mm | M2175P-1200AR | CHF 217.00 |
| P | P1 | P2 | P3 | P4 | P5 | P6 |
| M | M1 | M2 | M3 |
| K | K1 | K2 | K3 | K4 |
| N | N1 | N2 | N3 | N4 |
| S | S1 | S2 | S3 | S4 | S5 |
| H | H1 | H2 | H3 |
