MEGA-Speed-Drill-Uni 3xD
Technische Details
| Bohrertyp | Bohrer spiralisiert |
|---|---|
| Produktlinie | MEGA-Speed-Drill-Uni |
| Schneidstoff | HM |
| Schneidenanzahl (z) | 2 |
| Schaftform | HA |
| BohrtiefexD | 3xD |
| Kühlmittelzufuhr | innere Kühlmittelzufuhr |
| Marke | Miller |
| Beschichtet | Nein |
Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.
Downloads
Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

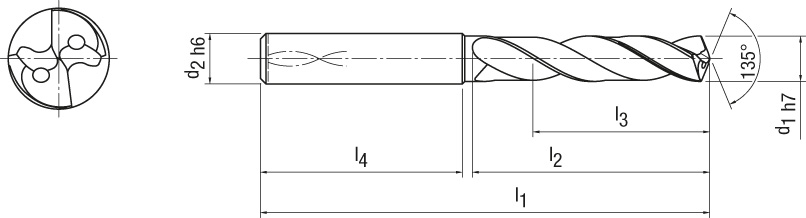

| d1 | l1 | Kühlmittelzufuhr | d2 | l2 | l3 | Artikelnummer | Preis | Lager |
|---|---|---|---|---|---|---|---|---|
| 3.00 mm | 62.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 20.00 mm | 14.00 mm | M9103-0300AK | CHF 82.20 | |
| 3.10 mm | 62.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 20.00 mm | 14.00 mm | M9103-0310AK | CHF 82.20 | |
| 3.20 mm | 62.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 20.00 mm | 14.00 mm | M9103-0320AK | CHF 82.20 | |
| 3.30 mm | 62.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 20.00 mm | 14.00 mm | M9103-0330AK | CHF 82.20 | |
| 3.40 mm | 62.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 20.00 mm | 14.00 mm | M9103-0340AK | CHF 82.20 | |
| 3.50 mm | 62.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 20.00 mm | 14.00 mm | M9103-0350AK | CHF 82.20 | |
| 3.70 mm | 62.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 20.00 mm | 14.00 mm | M9103-0370AK | CHF 82.20 | |
| 4.00 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 24.00 mm | 17.00 mm | M9103-0400AK | CHF 82.20 | |
| 4.20 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 24.00 mm | 17.00 mm | M9103-0420AK | CHF 82.20 | |
| 4.30 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 24.00 mm | 17.00 mm | M9103-0430AK | CHF 82.20 | |
| 4.50 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 24.00 mm | 17.00 mm | M9103-0450AK | CHF 82.20 | |
| 5.00 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 20.00 mm | M9103-0500AK | CHF 82.20 | |
| 5.10 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 20.00 mm | M9103-0510AK | CHF 82.20 | |
| 5.20 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 20.00 mm | M9103-0520AK | CHF 82.20 | |
| 5.50 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 20.00 mm | M9103-0550AK | CHF 82.20 | |
| 5.55 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 20.00 mm | M9103-0555AK | CHF 82.20 | |
| 5.60 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 20.00 mm | M9103-0560AK | CHF 82.20 | |
| 5.80 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 20.00 mm | M9103-0580AK | CHF 82.20 | |
| 6.00 mm | 66.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 28.00 mm | 20.00 mm | M9103-0600AK | CHF 82.20 | |
| 6.30 mm | 79.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 34.00 mm | 24.00 mm | M9103-0630AK | CHF 100.50 | |
| 6.50 mm | 79.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 34.00 mm | 24.00 mm | M9103-0650AK | CHF 100.50 | |
| 6.80 mm | 79.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 34.00 mm | 24.00 mm | M9103-0680AK | CHF 100.50 | |
| 6.90 mm | 79.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 34.00 mm | 24.00 mm | M9103-0690AK | CHF 100.50 | |
| 7.00 mm | 79.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 34.00 mm | 24.00 mm | M9103-0700AK | CHF 100.50 | |
| 7.40 mm | 79.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 41.00 mm | 29.00 mm | M9103-0740AK | CHF 100.50 | |
| 7.50 mm | 79.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 41.00 mm | 29.00 mm | M9103-0750AK | CHF 100.50 | |
| 7.80 mm | 79.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 41.00 mm | 29.00 mm | M9103-0780AK | CHF 100.50 | |
| 8.00 mm | 79.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 41.00 mm | 29.00 mm | M9103-0800AK | CHF 100.50 | |
| 8.50 mm | 89.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 47.00 mm | 35.00 mm | M9103-0850AK | CHF 138.50 | |
| 8.60 mm | 89.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 47.00 mm | 35.00 mm | M9103-0860AK | CHF 138.50 | |
| 8.80 mm | 89.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 47.00 mm | 35.00 mm | M9103-0880AK | CHF 138.50 | |
| 9.00 mm | 89.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 47.00 mm | 35.00 mm | M9103-0900AK | CHF 138.50 | |
| 9.50 mm | 89.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 47.00 mm | 35.00 mm | M9103-0950AK | CHF 138.50 | |
| 9.80 mm | 89.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 47.00 mm | 35.00 mm | M9103-0980AK | CHF 138.50 | |
| 9.90 mm | 89.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 47.00 mm | 35.00 mm | M9103-0990AK | CHF 138.50 | |
| 10.00 mm | 89.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 47.00 mm | 35.00 mm | M9103-1000AK | CHF 138.50 | |
| 10.20 mm | 102.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 55.00 mm | 40.00 mm | M9103-1020AK | CHF 174.50 | |
| 10.30 mm | 102.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 55.00 mm | 40.00 mm | M9103-1030AK | CHF 174.50 | |
| 10.50 mm | 102.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 55.00 mm | 40.00 mm | M9103-1050AK | CHF 174.50 | |
| 10.60 mm | 102.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 55.00 mm | 40.00 mm | M9103-1060AK | CHF 174.50 | |
| 11.00 mm | 102.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 55.00 mm | 40.00 mm | M9103-1100AK | CHF 174.50 | |
| 11.50 mm | 102.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 55.00 mm | 40.00 mm | M9103-1150AK | CHF 174.50 | |
| 11.60 mm | 102.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 55.00 mm | 40.00 mm | M9103-1160AK | CHF 174.50 | |
| 11.80 mm | 102.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 55.00 mm | 40.00 mm | M9103-1180AK | CHF 174.50 | |
| 12.00 mm | 102.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 55.00 mm | 40.00 mm | M9103-1200AK | CHF 174.50 | |
| 12.50 mm | 107.00 mm | innere Kühlmittelzufuhr | 14.00 mm | 60.00 mm | 43.00 mm | M9103-1250AK | CHF 284.00 | |
| 13.00 mm | 107.00 mm | innere Kühlmittelzufuhr | 14.00 mm | 60.00 mm | 43.00 mm | M9103-1300AK | CHF 284.00 | |
| 13.50 mm | 107.00 mm | innere Kühlmittelzufuhr | 14.00 mm | 60.00 mm | 43.00 mm | M9103-1350AK | CHF 284.00 | |
| 14.00 mm | 107.00 mm | innere Kühlmittelzufuhr | 14.00 mm | 60.00 mm | 43.00 mm | M9103-1400AK | CHF 284.00 | |
| 14.50 mm | 115.00 mm | innere Kühlmittelzufuhr | 16.00 mm | 65.00 mm | 45.00 mm | M9103-1450AK | CHF 358.00 | |
| 15.00 mm | 115.00 mm | innere Kühlmittelzufuhr | 16.00 mm | 65.00 mm | 45.00 mm | M9103-1500AK | CHF 358.00 | |
| 16.00 mm | 115.00 mm | innere Kühlmittelzufuhr | 16.00 mm | 65.00 mm | 45.00 mm | M9103-1600AK | CHF 358.00 | |
| 17.00 mm | 123.00 mm | innere Kühlmittelzufuhr | 18.00 mm | 73.00 mm | 51.00 mm | M9103-1700AK | CHF 482.00 | |
| 17.50 mm | 123.00 mm | innere Kühlmittelzufuhr | 18.00 mm | 73.00 mm | 51.00 mm | M9103-1750AK | CHF 482.00 | |
| 17.80 mm | 123.00 mm | innere Kühlmittelzufuhr | 18.00 mm | 73.00 mm | 51.00 mm | M9103-1780AK | CHF 482.00 | |
| 18.00 mm | 123.00 mm | innere Kühlmittelzufuhr | 18.00 mm | 73.00 mm | 51.00 mm | M9103-1800AK | CHF 482.00 | |
| 18.50 mm | 131.00 mm | innere Kühlmittelzufuhr | 20.00 mm | 79.00 mm | 55.00 mm | M9103-1850AK | CHF 587.00 | |
| 19.50 mm | 131.00 mm | innere Kühlmittelzufuhr | 20.00 mm | 79.00 mm | 55.00 mm | M9103-1950AK | CHF 587.00 | |
| 20.00 mm | 131.00 mm | innere Kühlmittelzufuhr | 20.00 mm | 79.00 mm | 55.00 mm | M9103-2000AK | CHF 587.00 |
Materialeignung
| P | P1 | P2 | P3 | P4 | P5 | P6 |
| M | M1 | M2 | M3 |
| K | K1 | K2 | K3 | K4 |
| N | N1 | N2 | N3 | N4 |
| S | S1 | S2 | S3 | S4 | S5 |
| H | H1 | H2 | H3 |
