Tritan-Drill-Steel 5xD

Artikelnummer:

Lieferbar innert 1-2 Arbeitstagen

Lieferbar ab externem Lager innert

Durchmesser (d1)

Gesamtlänge (l1)

Kühlmittelzufuhr

Zurücksetzen

Produktbeschreibung

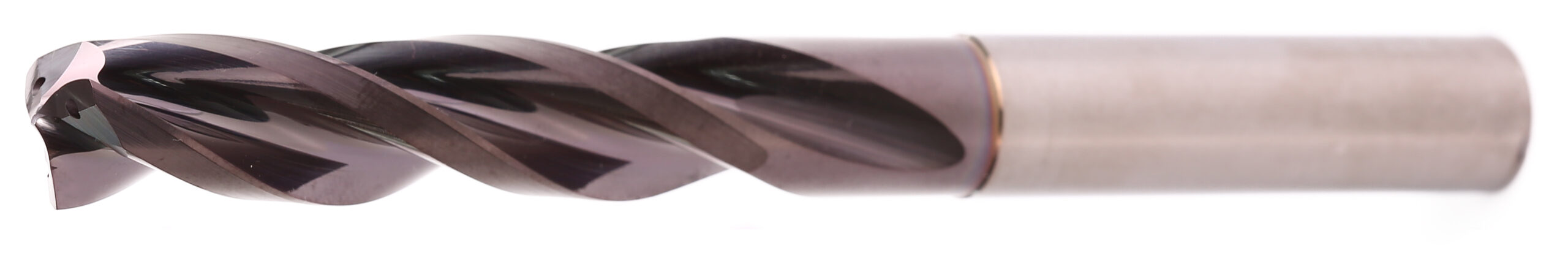

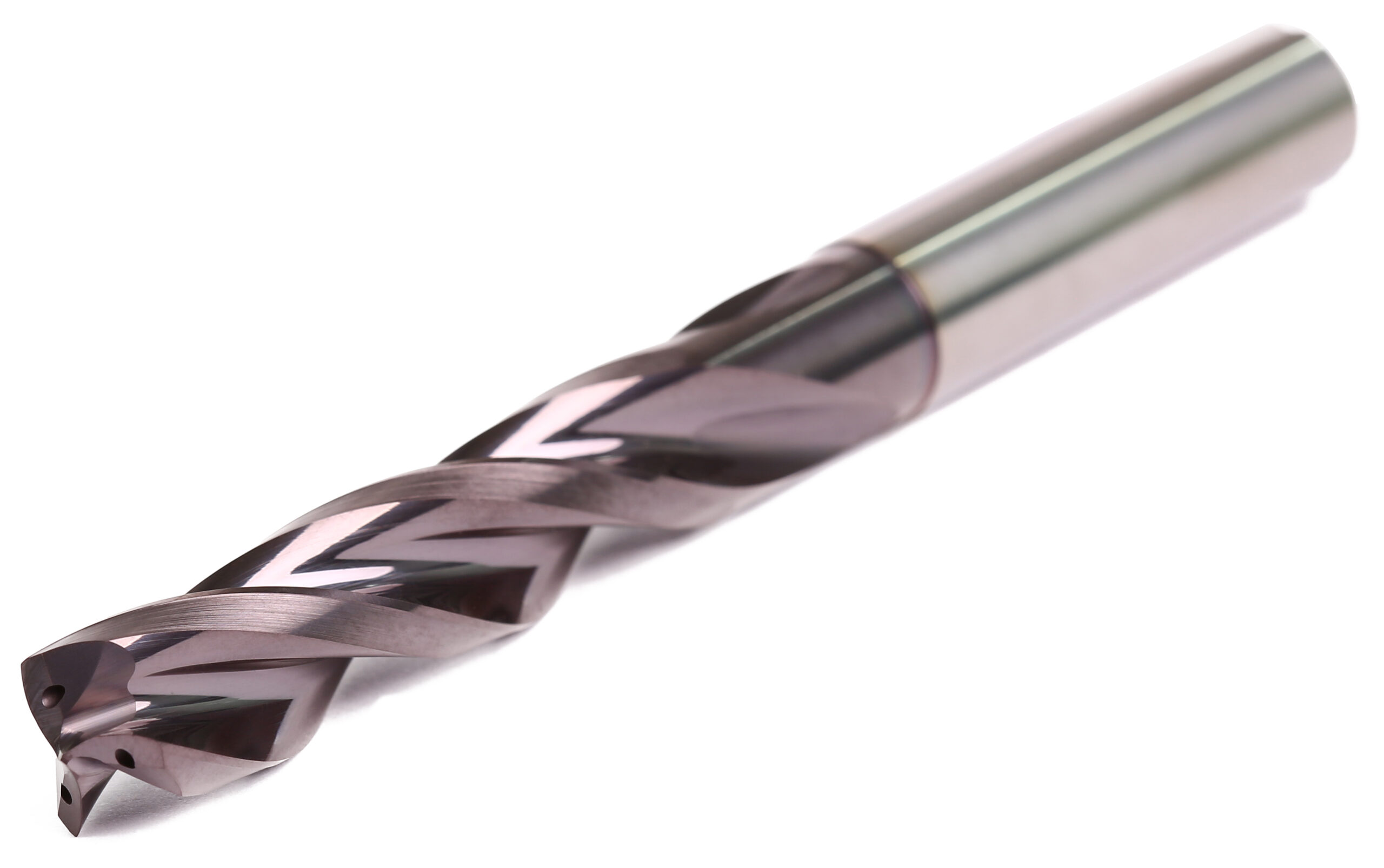

Der dreischneidige Vollhartmetallbohrer Tritan-Drill-Steel bietet sehr hohe Wirtschaftlichkeit durch hohe Vorschubwerte bei langer Standzeit. Er zeichnet sich durch eine selbstzentrierender Querschneide aus und eignet sich besonders gut bei schwierigen Anbohrsituationen.

Zum Katalog

Technische Details

Bohrertyp	Bohrer spiralisiert
Produktlinie	Tritan-Drill-Steel
Schneidstoff	HM
Schneidenanzahl (z)	3
Schaftform	HA
BohrtiefexD	5xD
Kühlmittelzufuhr	innere Kühlmittelzufuhr
Marke	Miller
Beschichtet	Ja
Beschichtung	Mx2

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Downloads

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

d1	l1	d2	l2	l3	Artikelnummer	Preis
4.00 mm	74.00 mm	6.00 mm	36.00 mm	29.00 mm	M9935-0400AR	CHF 105.50
4.10 mm	74.00 mm	6.00 mm	36.00 mm	29.00 mm	M9935-0410AR	CHF 105.50
4.20 mm	74.00 mm	6.00 mm	36.00 mm	29.00 mm	M9935-0420AR	CHF 105.50
4.30 mm	74.00 mm	6.00 mm	36.00 mm	29.00 mm	M9935-0430AR	CHF 105.50
4.40 mm	74.00 mm	6.00 mm	36.00 mm	29.00 mm	M9935-0440AR	CHF 105.50
4.50 mm	74.00 mm	6.00 mm	36.00 mm	29.00 mm	M9935-0450AR	CHF 105.50
4.60 mm	74.00 mm	6.00 mm	36.00 mm	29.00 mm	M9935-0460AR	CHF 105.50
4.65 mm	74.00 mm	6.00 mm	36.00 mm	29.00 mm	M9935-0465AR	CHF 105.50
4.70 mm	74.00 mm	6.00 mm	36.00 mm	29.00 mm	M9935-0470AR	CHF 105.50
4.80 mm	82.00 mm	6.00 mm	44.00 mm	35.00 mm	M9935-0480AR	CHF 105.50
4.90 mm	82.00 mm	6.00 mm	44.00 mm	35.00 mm	M9935-0490AR	CHF 105.50
5.00 mm	82.00 mm	6.00 mm	44.00 mm	35.00 mm	M9935-0500AR	CHF 105.50
5.10 mm	82.00 mm	6.00 mm	44.00 mm	35.00 mm	M9935-0510AR	CHF 105.50
5.20 mm	82.00 mm	6.00 mm	44.00 mm	35.00 mm	M9935-0520AR	CHF 105.50
5.30 mm	82.00 mm	6.00 mm	44.00 mm	35.00 mm	M9935-0530AR	CHF 105.50
5.40 mm	82.00 mm	6.00 mm	44.00 mm	35.00 mm	M9935-0540AR	CHF 105.50
5.50 mm	82.00 mm	6.00 mm	44.00 mm	35.00 mm	M9935-0550AR	CHF 105.50
5.55 mm	82.00 mm	6.00 mm	44.00 mm	35.00 mm	M9935-0555AR	CHF 105.50
5.60 mm	82.00 mm	6.00 mm	44.00 mm	35.00 mm	M9935-0560AR	CHF 105.50
5.70 mm	82.00 mm	6.00 mm	44.00 mm	35.00 mm	M9935-0570AR	CHF 105.50
5.80 mm	82.00 mm	6.00 mm	44.00 mm	35.00 mm	M9935-0580AR	CHF 105.50
5.90 mm	82.00 mm	6.00 mm	44.00 mm	35.00 mm	M9935-0590AR	CHF 105.50
6.00 mm	82.00 mm	6.00 mm	44.00 mm	35.00 mm	M9935-0600AR	CHF 105.50
6.05 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0605AR	CHF 118.50
6.10 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0610AR	CHF 118.50
6.20 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0620AR	CHF 118.50
6.30 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0630AR	CHF 118.50
6.40 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0640AR	CHF 118.50
6.50 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0650AR	CHF 118.50
6.60 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0660AR	CHF 118.50
6.80 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0680AR	CHF 118.50
6.90 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0690AR	CHF 118.50
7.00 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0700AR	CHF 118.50
7.10 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0710AR	CHF 118.50
7.20 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0720AR	CHF 118.50
7.30 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0730AR	CHF 118.50
7.40 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0740AR	CHF 118.50
7.45 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0745AR	CHF 118.50
7.50 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0750AR	CHF 118.50
7.60 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0760AR	CHF 118.50
7.70 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0770AR	CHF 114.00
7.80 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0780AR	CHF 118.50
7.90 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0790AR	CHF 118.50
8.00 mm	91.00 mm	8.00 mm	53.00 mm	43.00 mm	M9935-0800AR	CHF 118.50
8.10 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0810AR	CHF 171.50
8.20 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0820AR	CHF 171.50
8.30 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0830AR	CHF 171.50
8.40 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0840AR	CHF 171.50
8.50 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0850AR	CHF 171.50
8.60 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0860AR	CHF 171.50
8.70 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0870AR	CHF 171.50
8.80 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0880AR	CHF 171.50
8.90 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0890AR	CHF 171.50
9.00 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0900AR	CHF 171.50
9.10 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0910AR	CHF 171.50
9.20 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0920AR	CHF 171.50
9.30 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0930AR	CHF 171.50
9.35 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0935AR	CHF 171.50
9.40 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0940AR	CHF 171.50
9.50 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0950AR	CHF 171.50
9.70 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0970AR	CHF 171.50
9.80 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0980AR	CHF 171.50
9.90 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-0990AR	CHF 171.50
10.00 mm	103.00 mm	10.00 mm	61.00 mm	49.00 mm	M9935-1000AR	CHF 171.50
10.10 mm	118.00 mm	12.00 mm	71.00 mm	56.00 mm	M9935-1010AR	CHF 239.00
10.20 mm	118.00 mm	12.00 mm	71.00 mm	56.00 mm	M9935-1020AR	CHF 239.00
10.30 mm	118.00 mm	12.00 mm	71.00 mm	56.00 mm	M9935-1030AR	CHF 239.00
10.40 mm	118.00 mm	12.00 mm	71.00 mm	56.00 mm	M9935-1040AR	CHF 239.00
10.50 mm	118.00 mm	12.00 mm	71.00 mm	56.00 mm	M9935-1050AR	CHF 239.00
10.80 mm	118.00 mm	12.00 mm	71.00 mm	56.00 mm	M9935-1080AR	CHF 239.00
11.00 mm	118.00 mm	12.00 mm	71.00 mm	56.00 mm	M9935-1100AR	CHF 239.00
11.10 mm	118.00 mm	12.00 mm	71.00 mm	56.00 mm	M9935-1110AR	CHF 239.00
11.20 mm	118.00 mm	12.00 mm	71.00 mm	56.00 mm	M9935-1120AR	CHF 239.00
11.30 mm	118.00 mm	12.00 mm	71.00 mm	56.00 mm	M9935-1130AR	CHF 239.00
11.40 mm	118.00 mm	12.00 mm	71.00 mm	56.00 mm	M9935-1140AR	CHF 239.00
11.50 mm	118.00 mm	12.00 mm	71.00 mm	56.00 mm	M9935-1150AR	CHF 239.00
11.80 mm	118.00 mm	12.00 mm	71.00 mm	56.00 mm	M9935-1180AR	CHF 239.00
11.90 mm	118.00 mm	12.00 mm	71.00 mm	56.00 mm	M9935-1190AR	CHF 239.00
12.00 mm	118.00 mm	12.00 mm	71.00 mm	56.00 mm	M9935-1200AR	CHF 239.00
12.20 mm	124.00 mm	14.00 mm	77.00 mm	60.00 mm	M9935-1220AR	CHF 325.50
12.50 mm	124.00 mm	14.00 mm	77.00 mm	60.00 mm	M9935-1250AR	CHF 325.50
12.80 mm	124.00 mm	14.00 mm	77.00 mm	60.00 mm	M9935-1280AR	CHF 325.50
13.00 mm	124.00 mm	14.00 mm	77.00 mm	60.00 mm	M9935-1300AR	CHF 325.50
13.50 mm	124.00 mm	14.00 mm	77.00 mm	60.00 mm	M9935-1350AR	CHF 325.50
13.80 mm	124.00 mm	14.00 mm	77.00 mm	60.00 mm	M9935-1380AR	CHF 325.50
14.00 mm	124.00 mm	14.00 mm	77.00 mm	60.00 mm	M9935-1400AR	CHF 325.50
14.20 mm	133.00 mm	16.00 mm	83.00 mm	63.00 mm	M9935-1420AR	CHF 405.00
14.50 mm	133.00 mm	16.00 mm	83.00 mm	63.00 mm	M9935-1450AR	CHF 405.00
14.80 mm	133.00 mm	16.00 mm	83.00 mm	63.00 mm	M9935-1480AR	CHF 405.00
15.00 mm	133.00 mm	16.00 mm	83.00 mm	63.00 mm	M9935-1500AR	CHF 405.00
15.10 mm	133.00 mm	16.00 mm	83.00 mm	63.00 mm	M9935-1510AR	CHF 405.00
15.20 mm	133.00 mm	16.00 mm	83.00 mm	63.00 mm	M9935-1520AR	CHF 405.00
15.25 mm	133.00 mm	16.00 mm	83.00 mm	63.00 mm	M9935-1525AR	CHF 405.00
15.50 mm	133.00 mm	16.00 mm	83.00 mm	63.00 mm	M9935-1550AR	CHF 405.00
15.80 mm	133.00 mm	16.00 mm	83.00 mm	63.00 mm	M9935-1580AR	CHF 405.00
16.00 mm	133.00 mm	16.00 mm	83.00 mm	63.00 mm	M9935-1600AR	CHF 405.00
16.20 mm	143.00 mm	18.00 mm	93.00 mm	71.00 mm	M9935-1620AR	CHF 536.00
16.50 mm	143.00 mm	18.00 mm	93.00 mm	71.00 mm	M9935-1650AR	CHF 536.00
16.80 mm	143.00 mm	18.00 mm	93.00 mm	71.00 mm	M9935-1680AR	CHF 536.00
17.00 mm	143.00 mm	18.00 mm	93.00 mm	71.00 mm	M9935-1700AR	CHF 536.00
17.50 mm	143.00 mm	18.00 mm	93.00 mm	71.00 mm	M9935-1750AR	CHF 536.00
18.00 mm	143.00 mm	18.00 mm	93.00 mm	71.00 mm	M9935-1800AR	CHF 536.00
18.50 mm	153.00 mm	20.00 mm	101.00 mm	77.00 mm	M9935-1850AR	CHF 692.00
18.80 mm	153.00 mm	20.00 mm	101.00 mm	77.00 mm	M9935-1880AR	CHF 692.00
19.00 mm	153.00 mm	20.00 mm	101.00 mm	77.00 mm	M9935-1900AR	CHF 692.00
19.50 mm	153.00 mm	20.00 mm	101.00 mm	77.00 mm	M9935-1950AR	CHF 692.00
19.80 mm	153.00 mm	20.00 mm	101.00 mm	77.00 mm	M9935-1980AR	CHF 692.00
20.00 mm	153.00 mm	20.00 mm	101.00 mm	77.00 mm	M9935-2000AR	CHF 692.00

Materialeignung

P	P1	P2	P3	P4	P5	P6
P

M	M1	M2	M3
M

K	K1	K2	K3	K4
K

N	N1	N2	N3	N4
N

S	S1	S2	S3	S4	S5
S

H	H1	H2	H3
H
