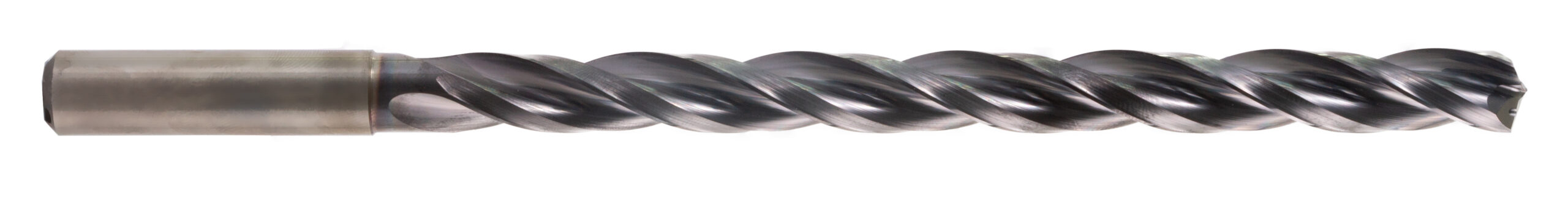

«Der Tritan-Drll-Uni-Plus wurde speziell für die Hochvorschubbearbeitung von Stahl, rostfreiem Stahl, Gusseisen und Aluminium entwickelt. Dieser dreischneidige Vollhartmetallbohrer verfügt über ein optimiertes Nutprofil.
| Bohrertyp | Bohrer spiralisiert |
|---|---|
| Produktlinie | Tritan-Drill-Uni-Plus |
| Schneidstoff | HM |
| Schneidenanzahl (z) | 3 |
| Schaftform | HA |
| BohrtiefexD | 12xD |
| Kühlmittelzufuhr | innere Kühlmittelzufuhr |
| Marke | Miller |
| Beschichtet | Ja |
| Beschichtung | Mx2 |
Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.
Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.
| d1 | l1 | Kühlmittelzufuhr | d2 | l2 | l3 | Artikelnummer | Preis | Lager |
|---|---|---|---|---|---|---|---|---|
| 4.00 mm | 102.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 64.00 mm | 58.00 mm | M9542P-0400AR | CHF 208.00 | |
| 4.10 mm | 102.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 64.00 mm | 58.00 mm | M9542P-0410AR | CHF 208.00 | |
| 4.20 mm | 102.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 64.00 mm | 58.00 mm | M9542P-0420AR | CHF 208.00 | |
| 4.30 mm | 102.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 64.00 mm | 58.00 mm | M9542P-0430AR | CHF 208.00 | |
| 4.50 mm | 102.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 64.00 mm | 58.00 mm | M9542P-0450AR | CHF 208.00 | |
| 4.60 mm | 102.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 64.00 mm | 58.00 mm | M9542P-0460AR | CHF 208.00 | |
| 4.70 mm | 102.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 64.00 mm | 58.00 mm | M9542P-0470AR | CHF 208.00 | |
| 4.80 mm | 116.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 78.00 mm | 70.00 mm | M9542P-0480AR | CHF 208.00 | |
| 5.00 mm | 116.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 78.00 mm | 70.00 mm | M9542P-0500AR | CHF 208.00 | |
| 5.10 mm | 116.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 78.00 mm | 70.00 mm | M9542P-0510AR | CHF 208.00 | |
| 5.20 mm | 116.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 78.00 mm | 70.00 mm | M9542P-0520AR | CHF 208.00 | |
| 5.40 mm | 116.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 78.00 mm | 70.00 mm | M9542P-0540AR | CHF 208.00 | |
| 5.50 mm | 116.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 78.00 mm | 70.00 mm | M9542P-0550AR | CHF 208.00 | |
| 5.80 mm | 116.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 78.00 mm | 70.00 mm | M9542P-0580AR | CHF 208.00 | |
| 6.00 mm | 116.00 mm | innere Kühlmittelzufuhr | 6.00 mm | 78.00 mm | 70.00 mm | M9542P-0600AR | CHF 208.00 | |
| 6.10 mm | 146.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 108.00 mm | 94.00 mm | M9542P-0610AR | CHF 278.00 | |
| 6.20 mm | 146.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 108.00 mm | 94.00 mm | M9542P-0620AR | CHF 278.00 | |
| 6.50 mm | 146.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 108.00 mm | 94.00 mm | M9542P-0650AR | CHF 278.00 | |
| 6.60 mm | 146.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 108.00 mm | 94.00 mm | M9542P-0660AR | CHF 278.00 | |
| 6.80 mm | 146.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 108.00 mm | 94.00 mm | M9542P-0680AR | CHF 278.00 | |
| 7.00 mm | 146.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 108.00 mm | 94.00 mm | M9542P-0700AR | CHF 278.00 | |
| 7.50 mm | 146.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 108.00 mm | 94.00 mm | M9542P-0750AR | CHF 278.00 | |
| 7.80 mm | 146.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 108.00 mm | 94.00 mm | M9542P-0780AR | CHF 278.00 | |
| 8.00 mm | 146.00 mm | innere Kühlmittelzufuhr | 8.00 mm | 108.00 mm | 94.00 mm | M9542P-0800AR | CHF 278.00 | |
| 8.50 mm | 162.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 120.00 mm | 110.00 mm | M9542P-0850AR | CHF 404.00 | |
| 9.00 mm | 162.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 120.00 mm | 110.00 mm | M9542P-0900AR | CHF 404.00 | |
| 9.50 mm | 162.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 120.00 mm | 110.00 mm | M9542P-0950AR | CHF 404.00 | |
| 9.80 mm | 162.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 120.00 mm | 110.00 mm | M9542P-0980AR | CHF 404.00 | |
| 9.90 mm | 162.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 120.00 mm | 110.00 mm | M9542P-0990AR | CHF 404.00 | |
| 10.00 mm | 162.00 mm | innere Kühlmittelzufuhr | 10.00 mm | 120.00 mm | 110.00 mm | M9542P-1000AR | CHF 404.00 | |
| 10.20 mm | 204.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 156.00 mm | 142.00 mm | M9542P-1020AR | CHF 518.00 | |
| 10.50 mm | 204.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 156.00 mm | 142.00 mm | M9542P-1050AR | CHF 518.00 | |
| 11.00 mm | 204.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 156.00 mm | 142.00 mm | M9542P-1100AR | CHF 518.00 | |
| 11.30 mm | 204.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 156.00 mm | 142.00 mm | M9542P-1130AR | CHF 518.00 | |
| 11.80 mm | 204.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 156.00 mm | 142.00 mm | M9542P-1180AR | CHF 518.00 | |
| 12.00 mm | 204.00 mm | innere Kühlmittelzufuhr | 12.00 mm | 156.00 mm | 142.00 mm | M9542P-1200AR | CHF 518.00 | |
| 12.50 mm | 230.00 mm | innere Kühlmittelzufuhr | 14.00 mm | 182.00 mm | 166.00 mm | M9542P-1250AR | CHF 623.00 | |
| 13.00 mm | 230.00 mm | innere Kühlmittelzufuhr | 14.00 mm | 182.00 mm | 166.00 mm | M9542P-1300AR | CHF 623.00 | |
| 13.50 mm | 230.00 mm | innere Kühlmittelzufuhr | 14.00 mm | 182.00 mm | 166.00 mm | M9542P-1350AR | CHF 623.00 | |
| 13.80 mm | 230.00 mm | innere Kühlmittelzufuhr | 14.00 mm | 182.00 mm | 166.00 mm | M9542P-1380AR | CHF 623.00 | |
| 14.00 mm | 230.00 mm | innere Kühlmittelzufuhr | 14.00 mm | 182.00 mm | 166.00 mm | M9542P-1400AR | CHF 623.00 | |
| 15.00 mm | 260.00 mm | innere Kühlmittelzufuhr | 16.00 mm | 208.00 mm | 192.00 mm | M9542P-1500AR | CHF 840.00 | |
| 15.80 mm | 260.00 mm | innere Kühlmittelzufuhr | 16.00 mm | 208.00 mm | 192.00 mm | M9542P-1580AR | CHF 840.00 | |
| 16.00 mm | 260.00 mm | innere Kühlmittelzufuhr | 16.00 mm | 208.00 mm | 192.00 mm | M9542P-1600AR | CHF 840.00 |
| P | P1 | P2 | P3 | P4 | P5 | P6 |
| M | M1 | M2 | M3 |
| K | K1 | K2 | K3 | K4 |
| N | N1 | N2 | N3 | N4 |
| S | S1 | S2 | S3 | S4 | S5 |
| H | H1 | H2 | H3 |
