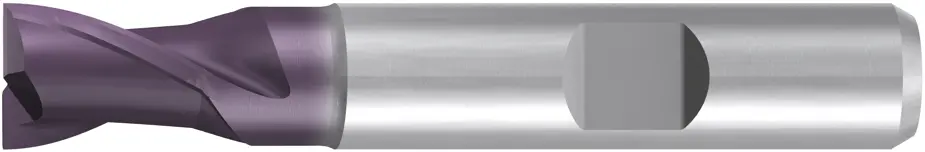

HSS Langlochfräser TOP-Cut 2300C

Artikelnummer:

Lieferbar innert 1-2 Arbeitstagen

Lieferbar ab externem Lager innert

HSS Langlochfräser TOP-Cut 2300C - Image 3

Durchmesser (d1)

Gesamtlänge (l1)

Leeren

Produktbeschreibung

HSS-Langlochfräser Top-Cut mit seitlicher Mitnahmefläche und kurzer Ausführung, DIN 327, zum universellen Einsatz in fast allen Werkstoffen.

Produktmerkmale und Vorteile:

Zentrumschneidende, scharfkantige Ausführung mit zwei Schneiden.
Zur Herstellung von Passfedernuten nach DIN 6885-1 oder zum Bohrfräsen verwendbar.
TICN-Beschichtung für höhere Standzeit.

Internationaler Werkstoffvergleich

Zur Herstellerseite

Technische Details

Fräsertyp	Schaftfräser/Hochvorschubfräser
Schneidstoff	HSS / HSSE
Schneidenanzahl (z)	2
Schaftform	HB
Kühlmittelzufuhr	äussere Kühlmittelzufuhr
Marke	Franken
Drallwinkel	30°
Beschichtet	Ja
Beschichtung	TICN

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

d1	l1	d2	l2	Abmessung	Artikelnummer	Preis
1.00 mm	47.00 mm	6.00 mm	2.50 mm	Ø1	FR2300C.001	CHF 39.65
1.50 mm	47.00 mm	6.00 mm	3.00 mm	Ø1,5	FR2300C.0015	CHF 37.50
1.80 mm	48.00 mm	6.00 mm	4.00 mm	Ø1,8	FR2300C.0018	CHF 34.55
2.00 mm	48.00 mm	6.00 mm	4.00 mm	Ø2	FR2300C.002	CHF 25.20
2.50 mm	49.00 mm	6.00 mm	5.00 mm	Ø2,5	FR2300C.0025	CHF 25.20
2.80 mm	49.00 mm	6.00 mm	5.00 mm	Ø2,8	FR2300C.0028	CHF 34.55
3.00 mm	49.00 mm	6.00 mm	5.00 mm	Ø3	FR2300C.003	CHF 25.20
3.50 mm	50.00 mm	6.00 mm	6.00 mm	Ø3,5	FR2300C.0035	CHF 26.25
3.80 mm	51.00 mm	6.00 mm	7.00 mm	Ø3,8	FR2300C.0038	CHF 30.60
4.00 mm	51.00 mm	6.00 mm	7.00 mm	Ø4	FR2300C.004	CHF 25.20
4.50 mm	51.00 mm	6.00 mm	7.00 mm	Ø4,5	FR2300C.0045	CHF 29.65
4.80 mm	52.00 mm	6.00 mm	8.00 mm	Ø4,8	FR2300C.0048	CHF 30.60
5.00 mm	52.00 mm	6.00 mm	8.00 mm	Ø5	FR2300C.005	CHF 25.20
5.50 mm	52.00 mm	6.00 mm	8.00 mm	Ø5,5	FR2300C.0055	CHF 29.65
5.75 mm	52.00 mm	6.00 mm	8.00 mm	Ø5,75	FR2300C.00575	CHF 30.60
6.00 mm	52.00 mm	6.00 mm	8.00 mm	Ø6	FR2300C.006	CHF 25.20
6.50 mm	60.00 mm	10.00 mm	10.00 mm	Ø6,5	FR2300C.0065	CHF 43.80
6.75 mm	60.00 mm	10.00 mm	10.00 mm	Ø6,75	FR2300C.00675	CHF 45.90
7.00 mm	60.00 mm	10.00 mm	10.00 mm	Ø7	FR2300C.007	CHF 39.75
7.50 mm	60.00 mm	10.00 mm	10.00 mm	Ø7,5	FR2300C.0075	CHF 43.80
7.75 mm	61.00 mm	10.00 mm	11.00 mm	Ø7,75	FR2300C.00775	CHF 40.25
8.00 mm	61.00 mm	10.00 mm	11.00 mm	Ø8	FR2300C.008	CHF 35.95
8.50 mm	61.00 mm	10.00 mm	11.00 mm	Ø8,5	FR2300C.0085	CHF 44.15
8.70 mm	61.00 mm	10.00 mm	11.00 mm	Ø8,7	FR2300C.0087	CHF 49.40
9.00 mm	61.00 mm	10.00 mm	11.00 mm	Ø9	FR2300C.009	CHF 43.80
9.50 mm	61.00 mm	10.00 mm	11.00 mm	Ø9,5	FR2300C.0095	CHF 44.15
9.70 mm	63.00 mm	10.00 mm	13.00 mm	Ø9,7	FR2300C.0097	CHF 42.95
10.00 mm	63.00 mm	10.00 mm	13.00 mm	Ø10	FR2300C.010	CHF 38.10
10.50 mm	70.00 mm	12.00 mm	13.00 mm	Ø10,5	FR2300C.0105	CHF 49.40
10.70 mm	70.00 mm	12.00 mm	13.00 mm	Ø10,7	FR2300C.0107	CHF 57.50
11.00 mm	70.00 mm	12.00 mm	13.00 mm	Ø11	FR2300C.011	CHF 45.90
11.50 mm	70.00 mm	12.00 mm	13.00 mm	Ø11,5	FR2300C.0115	CHF 51.20
11.70 mm	73.00 mm	12.00 mm	16.00 mm	Ø11,7	FR2300C.0117	CHF 51.00
12.00 mm	73.00 mm	12.00 mm	16.00 mm	Ø12	FR2300C.012	CHF 42.35
12.70 mm	73.00 mm	12.00 mm	16.00 mm	Ø12,7	FR2300C.0127	CHF 75.90
13.00 mm	73.00 mm	12.00 mm	16.00 mm	Ø13	FR2300C.013	CHF 68.80
13.70 mm	73.00 mm	12.00 mm	16.00 mm	Ø13,7	FR2300C.0137	CHF 73.20
14.00 mm	73.00 mm	12.00 mm	16.00 mm	Ø14	FR2300C.014	CHF 56.90
14.70 mm	73.00 mm	12.00 mm	16.00 mm	Ø14,7	FR2300C.0147	CHF 77.60
15.00 mm	73.00 mm	12.00 mm	16.00 mm	Ø15	FR2300C.015	CHF 68.80
15.70 mm	79.00 mm	16.00 mm	19.00 mm	Ø15,7	FR2300C.0157	CHF 78.60
16.00 mm	79.00 mm	16.00 mm	19.00 mm	Ø16	FR2300C.016	CHF 63.30
16.70 mm	79.00 mm	16.00 mm	19.00 mm	Ø16,7	FR2300C.0167	CHF 113.00
17.00 mm	79.00 mm	16.00 mm	19.00 mm	Ø17	FR2300C.017	CHF 100.50
17.70 mm	79.00 mm	16.00 mm	19.00 mm	Ø17,7	FR2300C.0177	CHF 98.90
18.00 mm	79.00 mm	16.00 mm	19.00 mm	Ø18	FR2300C.018	CHF 80.50
19.00 mm	79.00 mm	16.00 mm	19.00 mm	Ø19	FR2300C.019	CHF 108.50
19.70 mm	88.00 mm	20.00 mm	22.00 mm	Ø19,7	FR2300C.0197	CHF 108.50
20.00 mm	88.00 mm	20.00 mm	22.00 mm	Ø20	FR2300C.020	CHF 85.80
21.70 mm	88.00 mm	20.00 mm	22.00 mm	Ø21,7	FR2300C.0217	CHF 156.50
22.00 mm	88.00 mm	20.00 mm	22.00 mm	Ø22	FR2300C.022	CHF 136.00
23.70 mm	102.00 mm	25.00 mm	26.00 mm	Ø23,7	FR2300C.0237	CHF 180.00
24.00 mm	102.00 mm	25.00 mm	26.00 mm	Ø24	FR2300C.024	CHF 162.50
24.70 mm	102.00 mm	25.00 mm	26.00 mm	Ø24,7	FR2300C.0247	CHF 186.00
25.00 mm	102.00 mm	25.00 mm	26.00 mm	Ø25	FR2300C.025	CHF 148.00
26.00 mm	102.00 mm	25.00 mm	26.00 mm	Ø26	FR2300C.026	CHF 212.00
27.70 mm	102.00 mm	25.00 mm	26.00 mm	Ø27,7	FR2300C.0277	CHF 265.50
28.00 mm	102.00 mm	25.00 mm	26.00 mm	Ø28	FR2300C.028	CHF 226.00
30.00 mm	102.00 mm	25.00 mm	26.00 mm	Ø30	FR2300C.030	CHF 235.50
31.70 mm	112.00 mm	32.00 mm	32.00 mm	Ø31,7	FR2300C.0317	CHF 273.50
32.00 mm	112.00 mm	32.00 mm	32.00 mm	Ø32	FR2300C.032	CHF 232.00
35.00 mm	112.00 mm	32.00 mm	32.00 mm	Ø35	FR2300C.035	CHF 332.00
36.00 mm	112.00 mm	32.00 mm	32.00 mm	Ø36	FR2300C.036	CHF 323.00

Materialeignung

P	P1	P2	P3	P4	P5	P6
P

M	M1	M2	M3
M

K	K1	K2	K3	K4
K

N	N1	N2	N3	N4
N

S	S1	S2	S3	S4	S5
S

H	H1	H2	H3
H
