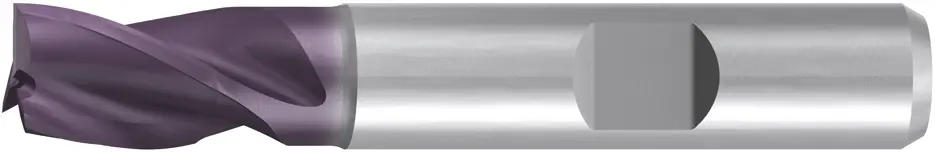

HSS Langlochfräser TOP-Cut 2310C

Artikelnummer:

Lieferbar innert 1-2 Arbeitstagen

Lieferbar ab externem Lager innert

Durchmesser (d1)

Gesamtlänge (l1)

Leeren

Produktbeschreibung

HSS-Langlochfräser Top-Cut mit seitlicher Mitnahmefläche und kurzer Ausführung, DIN 327, zum universellen Einsatz in fast allen Stahlwerkstoffen und Buntmetallen.

Produktmerkmale und Vorteile:

Zentrumschneidende, scharfkantige Ausführung mit drei Schneiden.
Zur Herstellung von Passfedernuten nach DIN 6885-1 verwendbar.
TICN-Beschichtung für höhere Standzeit.

Internationaler Werkstoffvergleich

Zur Herstellerseite

Technische Details

Fräsertyp	Schaftfräser/Hochvorschubfräser
Schneidstoff	HSS / HSSE
Schneidenanzahl (z)	2
Schaftform	HB
Kühlmittelzufuhr	äussere Kühlmittelzufuhr
Marke	Franken
Drallwinkel	30°
Beschichtet	Ja
Beschichtung	TICN

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

d1	l1	d2	l2	Abmessung	Artikelnummer	Preis
1.50 mm	47.00 mm	6.00 mm	3.00 mm	Ø1,5	FR2310C.0015	CHF 35.70
1.80 mm	48.00 mm	6.00 mm	4.00 mm	Ø1,8	FR2310C.0018	CHF 35.70
2.00 mm	48.00 mm	6.00 mm	4.00 mm	Ø2	FR2310C.002	CHF 25.75
2.50 mm	49.00 mm	6.00 mm	5.00 mm	Ø2,5	FR2310C.0025	CHF 29.30
2.80 mm	49.00 mm	6.00 mm	5.00 mm	Ø2,8	FR2310C.0028	CHF 35.70
3.00 mm	49.00 mm	6.00 mm	5.00 mm	Ø3	FR2310C.003	CHF 25.75
3.50 mm	50.00 mm	6.00 mm	6.00 mm	Ø3,5	FR2310C.0035	CHF 31.85
3.80 mm	51.00 mm	6.00 mm	7.00 mm	Ø3,8	FR2310C.0038	CHF 35.70
4.00 mm	51.00 mm	6.00 mm	7.00 mm	Ø4	FR2310C.004	CHF 25.75
4.50 mm	51.00 mm	6.00 mm	7.00 mm	Ø4,5	FR2310C.0045	CHF 31.85
4.80 mm	52.00 mm	6.00 mm	8.00 mm	Ø4,8	FR2310C.0048	CHF 35.70
5.00 mm	52.00 mm	6.00 mm	8.00 mm	Ø5	FR2310C.005	CHF 25.75
5.50 mm	52.00 mm	6.00 mm	8.00 mm	Ø5,5	FR2310C.0055	CHF 31.85
5.75 mm	52.00 mm	6.00 mm	8.00 mm	Ø5,75	FR2310C.00575	CHF 35.70
6.00 mm	52.00 mm	6.00 mm	8.00 mm	Ø6	FR2310C.006	CHF 25.75
6.50 mm	60.00 mm	10.00 mm	10.00 mm	Ø6,5	FR2310C.0065	CHF 44.15
6.75 mm	60.00 mm	10.00 mm	10.00 mm	Ø6,75	FR2310C.00675	CHF 51.20
7.00 mm	60.00 mm	10.00 mm	10.00 mm	Ø7	FR2310C.007	CHF 43.80
7.50 mm	60.00 mm	10.00 mm	10.00 mm	Ø7,5	FR2310C.0075	CHF 44.15
7.75 mm	61.00 mm	10.00 mm	11.00 mm	Ø7,75	FR2310C.00775	CHF 45.90
8.00 mm	61.00 mm	10.00 mm	11.00 mm	Ø8	FR2310C.008	CHF 37.50
8.50 mm	61.00 mm	10.00 mm	11.00 mm	Ø8,5	FR2310C.0085	CHF 45.00
8.70 mm	61.00 mm	10.00 mm	11.00 mm	Ø8,7	FR2310C.0087	CHF 51.20
9.00 mm	61.00 mm	10.00 mm	11.00 mm	Ø9	FR2310C.009	CHF 43.80
9.50 mm	61.00 mm	10.00 mm	11.00 mm	Ø9,5	FR2310C.0095	CHF 45.90
9.70 mm	63.00 mm	10.00 mm	13.00 mm	Ø9,7	FR2310C.0097	CHF 46.75
10.00 mm	63.00 mm	10.00 mm	13.00 mm	Ø10	FR2310C.010	CHF 39.20
10.50 mm	70.00 mm	12.00 mm	13.00 mm	Ø10,5	FR2310C.0105	CHF 53.10
10.70 mm	70.00 mm	12.00 mm	13.00 mm	Ø10,7	FR2310C.0107	CHF 59.20
11.00 mm	70.00 mm	12.00 mm	13.00 mm	Ø11	FR2310C.011	CHF 48.60
11.50 mm	70.00 mm	12.00 mm	13.00 mm	Ø11,5	FR2310C.0115	CHF 53.10
11.70 mm	73.00 mm	12.00 mm	16.00 mm	Ø11,7	FR2310C.0117	CHF 60.00
12.00 mm	73.00 mm	12.00 mm	16.00 mm	Ø12	FR2310C.012	CHF 44.00
12.70 mm	73.00 mm	12.00 mm	16.00 mm	Ø12,7	FR2310C.0127	CHF 81.30
13.00 mm	73.00 mm	12.00 mm	16.00 mm	Ø13	FR2310C.013	CHF 71.50
13.70 mm	73.00 mm	12.00 mm	16.00 mm	Ø13,7	FR2310C.0137	CHF 75.90
14.00 mm	73.00 mm	12.00 mm	16.00 mm	Ø14	FR2310C.014	CHF 62.20
14.70 mm	73.00 mm	12.00 mm	16.00 mm	Ø14,7	FR2310C.0147	CHF 88.30
15.00 mm	73.00 mm	12.00 mm	16.00 mm	Ø15	FR2310C.015	CHF 71.50
15.70 mm	79.00 mm	16.00 mm	19.00 mm	Ø15,7	FR2310C.0157	CHF 86.50
16.00 mm	79.00 mm	16.00 mm	19.00 mm	Ø16	FR2310C.016	CHF 68.60
16.70 mm	79.00 mm	16.00 mm	19.00 mm	Ø16,7	FR2310C.0167	CHF 122.50
17.00 mm	79.00 mm	16.00 mm	19.00 mm	Ø17	FR2310C.017	CHF 106.00
17.70 mm	79.00 mm	16.00 mm	19.00 mm	Ø17,7	FR2310C.0177	CHF 108.50
18.00 mm	79.00 mm	16.00 mm	19.00 mm	Ø18	FR2310C.018	CHF 86.90
19.00 mm	79.00 mm	16.00 mm	19.00 mm	Ø19	FR2310C.019	CHF 115.50
19.70 mm	88.00 mm	20.00 mm	22.00 mm	Ø19,7	FR2310C.0197	CHF 114.00
20.00 mm	88.00 mm	20.00 mm	22.00 mm	Ø20	FR2310C.020	CHF 91.10
21.70 mm	88.00 mm	20.00 mm	22.00 mm	Ø21,7	FR2310C.0217	CHF 164.00
22.00 mm	88.00 mm	20.00 mm	22.00 mm	Ø22	FR2310C.022	CHF 143.00
23.70 mm	102.00 mm	25.00 mm	26.00 mm	Ø23,7	FR2310C.0237	CHF 191.50
24.00 mm	102.00 mm	25.00 mm	26.00 mm	Ø24	FR2310C.024	CHF 172.00
24.70 mm	102.00 mm	25.00 mm	26.00 mm	Ø24,7	FR2310C.0247	CHF 197.00
25.00 mm	102.00 mm	25.00 mm	26.00 mm	Ø25	FR2310C.025	CHF 170.50
26.00 mm	102.00 mm	25.00 mm	26.00 mm	Ø26	FR2310C.026	CHF 212.00
27.70 mm	102.00 mm	25.00 mm	26.00 mm	Ø27,7	FR2310C.0277	CHF 281.50
28.00 mm	102.00 mm	25.00 mm	26.00 mm	Ø28	FR2310C.028	CHF 239.00
29.70 mm	102.00 mm	25.00 mm	26.00 mm	Ø29,7	FR2310C.0297	CHF 294.00
30.00 mm	102.00 mm	25.00 mm	26.00 mm	Ø30	FR2310C.030	CHF 249.00
31.70 mm	112.00 mm	32.00 mm	32.00 mm	Ø31,7	FR2310C.0317	CHF 294.00
32.00 mm	112.00 mm	32.00 mm	32.00 mm	Ø32	FR2310C.032	CHF 246.00
34.00 mm	112.00 mm	32.00 mm	32.00 mm	Ø34	FR2310C.034	CHF 403.00
35.00 mm	112.00 mm	32.00 mm	32.00 mm	Ø35	FR2310C.035	CHF 374.00
36.00 mm	112.00 mm	32.00 mm	32.00 mm	Ø36	FR2310C.036	CHF 341.50

Materialeignung

P	P1	P2	P3	P4	P5	P6
P

M	M1	M2	M3
M

K	K1	K2	K3	K4
K

N	N1	N2	N3	N4
N

S	S1	S2	S3	S4	S5
S

H	H1	H2	H3
H
