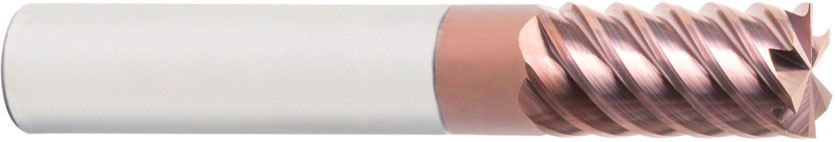

OptiMill-Hardened-HPC-Finish

Artikelnummer:

Lieferbar innert 1-2 Arbeitstagen

Lieferbar ab externem Lager innert

Durchmesser (d1)

Gesamtlänge (l1)

Eckradius (r1)

Zurücksetzen

Zum Katalog

Technische Details

Schneidstoff	HM
Schaftform	HA
Kühlmittelzufuhr	äussere Kühlmittelzufuhr
Marke	Miller
Beschichtet	Ja
Beschichtung	MFS

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Downloads

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

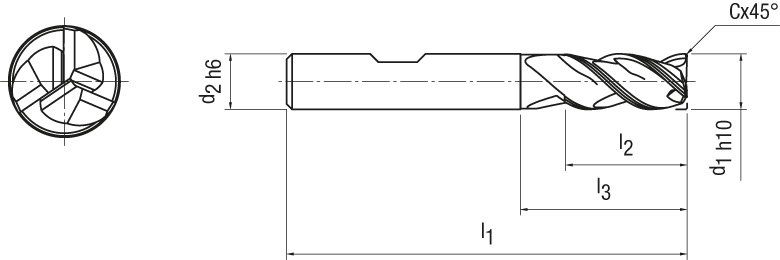

d1	r1	l1	d2	l2	Artikelnummer	Preis
4.00 mm	kein Eckradius	57.00 mm	6.00 mm	11.00 mm	M3276-2D-0400A08	CHF 82.20
4.00 mm	kein Eckradius	62.00 mm	6.00 mm	16.00 mm	M3276-3D-0400A08	CHF 86.30
4.00 mm	0.50 mm	57.00 mm	6.00 mm	11.00 mm	M3276-2D-0400A08-R0050	CHF 86.20
4.00 mm	0.50 mm	62.00 mm	6.00 mm	16.00 mm	M3276-3D-0400A08-R0050	CHF 90.40
5.00 mm	kein Eckradius	57.00 mm	6.00 mm	13.00 mm	M3276-2D-0500A08	CHF 82.20
5.00 mm	kein Eckradius	62.00 mm	6.00 mm	17.00 mm	M3276-3D-0500A08	CHF 86.30
5.00 mm	0.50 mm	57.00 mm	6.00 mm	13.00 mm	M3276-2D-0500A08-R0050	CHF 86.20
5.00 mm	0.50 mm	62.00 mm	6.00 mm	17.00 mm	M3276-3D-0500A08-R0050	CHF 90.40
5.00 mm	1.00 mm	57.00 mm	6.00 mm	13.00 mm	M3276-2D-0500A08-R0100	CHF 86.20
5.00 mm	1.00 mm	62.00 mm	6.00 mm	17.00 mm	M3276-3D-0500A08-R0100	CHF 90.40
6.00 mm	kein Eckradius	57.00 mm	6.00 mm	13.00 mm	M3276-2D-0600A08	CHF 82.20
6.00 mm	kein Eckradius	62.00 mm	6.00 mm	18.00 mm	M3276-3D-0600A08	CHF 86.30
6.00 mm	0.50 mm	57.00 mm	6.00 mm	13.00 mm	M3276-2D-0600A08-R0050	CHF 86.20
6.00 mm	0.50 mm	62.00 mm	6.00 mm	18.00 mm	M3276-3D-0600A08-R0050	CHF 90.40
6.00 mm	1.00 mm	57.00 mm	6.00 mm	13.00 mm	M3276-2D-0600A08-R0100	CHF 86.20
6.00 mm	1.00 mm	62.00 mm	6.00 mm	18.00 mm	M3276-3D-0600A08-R0100	CHF 90.40
8.00 mm	kein Eckradius	63.00 mm	8.00 mm	19.00 mm	M3276-2D-0800A08	CHF 97.20
8.00 mm	kein Eckradius	68.00 mm	8.00 mm	24.00 mm	M3276-3D-0800A08	CHF 111.50
8.00 mm	0.50 mm	63.00 mm	8.00 mm	19.00 mm	M3276-2D-0800A08-R0050	CHF 101.50
8.00 mm	0.50 mm	68.00 mm	8.00 mm	24.00 mm	M3276-3D-0800A08-R0050	CHF 117.50
8.00 mm	1.00 mm	63.00 mm	8.00 mm	19.00 mm	M3276-2D-0800A08-R0100	CHF 101.50
8.00 mm	1.00 mm	68.00 mm	8.00 mm	24.00 mm	M3276-3D-0800A08-R0100	CHF 117.50
10.00 mm	kein Eckradius	72.00 mm	10.00 mm	22.00 mm	M3276-2D-1000A08	CHF 115.00
10.00 mm	kein Eckradius	80.00 mm	10.00 mm	30.00 mm	M3276-3D-1000A08	CHF 143.50
10.00 mm	0.50 mm	72.00 mm	10.00 mm	22.00 mm	M3276-2D-1000A08-R0050	CHF 120.50
10.00 mm	0.50 mm	80.00 mm	10.00 mm	30.00 mm	M3276-3D-1000A08-R0050	CHF 151.00
10.00 mm	1.00 mm	72.00 mm	10.00 mm	22.00 mm	M3276-2D-1000A08-R0100	CHF 120.50
10.00 mm	1.00 mm	80.00 mm	10.00 mm	30.00 mm	M3276-3D-1000A08-R0100	CHF 151.00
12.00 mm	kein Eckradius	83.00 mm	12.00 mm	26.00 mm	M3276-2D-1200A08	CHF 152.50
12.00 mm	kein Eckradius	93.00 mm	12.00 mm	36.00 mm	M3276-3D-1200A08	CHF 187.00
12.00 mm	0.50 mm	83.00 mm	12.00 mm	26.00 mm	M3276-2D-1200A08-R0050	CHF 160.00
12.00 mm	0.50 mm	93.00 mm	12.00 mm	36.00 mm	M3276-3D-1200A08-R0050	CHF 196.00
12.00 mm	1.00 mm	83.00 mm	12.00 mm	26.00 mm	M3276-2D-1200A08-R0100	CHF 160.00
12.00 mm	1.00 mm	93.00 mm	12.00 mm	36.00 mm	M3276-3D-1200A08-R0100	CHF 196.00
16.00 mm	kein Eckradius	92.00 mm	16.00 mm	32.00 mm	M3276-2D-1600A08	CHF 235.50
16.00 mm	kein Eckradius	108.00 mm	16.00 mm	48.00 mm	M3276-3D-1600A08	CHF 298.00
16.00 mm	0.50 mm	92.00 mm	16.00 mm	32.00 mm	M3276-2D-1600A08-R0050	CHF 247.00
16.00 mm	0.50 mm	108.00 mm	16.00 mm	48.00 mm	M3276-3D-1600A08-R0050	CHF 313.00
16.00 mm	1.00 mm	92.00 mm	16.00 mm	32.00 mm	M3276-2D-1600A08-R0100	CHF 247.00
16.00 mm	1.00 mm	108.00 mm	16.00 mm	48.00 mm	M3276-3D-1600A08-R0100	CHF 313.00
16.00 mm	2.00 mm	92.00 mm	16.00 mm	32.00 mm	M3276-2D-1600A08-R0200	CHF 247.00
16.00 mm	2.00 mm	108.00 mm	16.00 mm	48.00 mm	M3276-3D-1600A08-R0200	CHF 313.00

Materialeignung

P	P1	P2	P3	P4	P5	P6
P

M	M1	M2	M3
M

K	K1	K2	K3	K4
K

N	N1	N2	N3	N4
N

S	S1	S2	S3	S4	S5
S

H	H1	H2	H3
H
