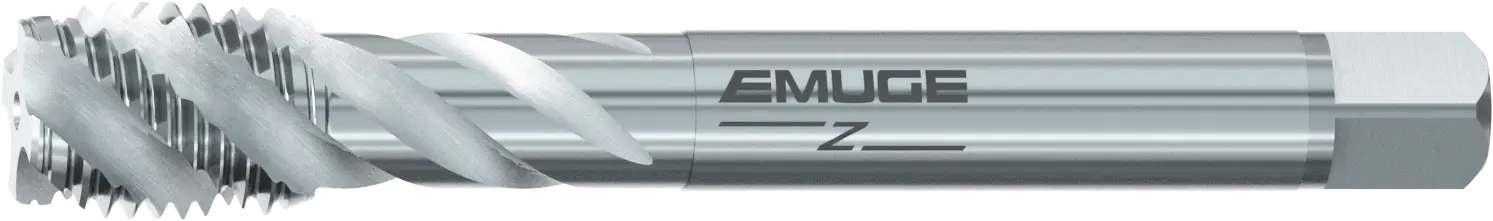

Enorm 2-Z/E Maschinen-Gewindebohrer

Artikelnummer:

Lieferbar innert 1-2 Arbeitstagen

Lieferbar ab externem Lager innert

Abmessung

Zurücksetzen

Produktbeschreibung

HSSE-Gewindebohrer für Anwendungen in vielen Werkstoffen.

Produktmerkmale und Vorteile:

Für den Einsatz in CNC-gesteuerten Maschinen ausgelegt.

Internationaler Werkstoffvergleich

Zur Herstellerseite

Technische Details

Schema Enorm 2-Z/E Maschinen-Gewindebohrer

Werkzeugtyp Gewinde	Gewindebohrer
Schneidstoff	HSS / HSSE
Schneidenanzahl (z)	2
Kühlmittelzufuhr	äussere Kühlmittelzufuhr
Marke	Emuge
Bearbeitungsfall / Lochform	Sackloch
Gewindedrehrichtung	RH
Beschichtet	Nein
Anschnittform	Form E
Nutenform	Enorm – Rechtsspirale über R25
Geometrie	Z

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Downloads

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Abmessung	d1	d2	l1	l2	Steigung	Artikelnummer	Preis
M 12-ISo2/6H	12.00 mm	9.00 mm	110.00 mm	18.00 mm	1.75 mm	C0513500.0112	CHF 75.70
M 12-ISo3/6G	12.00 mm	9.00 mm	110.00 mm	18.00 mm	1.75 mm	C0513520.0112	CHF 76.40
M 14-ISo2/6H	14.00 mm	11.00 mm	110.00 mm	20.00 mm	2.00 mm	C0513500.0114	CHF 112.00
M 16-ISo2/6H	16.00 mm	12.00 mm	110.00 mm	22.00 mm	2.00 mm	C0513500.0116	CHF 105.50
M 16-ISo3/6G	16.00 mm	12.00 mm	110.00 mm	22.00 mm	2.00 mm	C0513520.0116	CHF 108.50
M 18-ISo2/6H	18.00 mm	14.00 mm	125.00 mm	25.00 mm	2.50 mm	C0513500.0118	CHF 173.00
M 20-ISo2/6H	20.00 mm	16.00 mm	140.00 mm	25.00 mm	2.50 mm	C0513500.0120	CHF 160.50
M 20-ISo3/6G	20.00 mm	16.00 mm	140.00 mm	25.00 mm	2.50 mm	C0513520.0120	CHF 160.50
M 22-ISo2/6H	22.00 mm	18.00 mm	140.00 mm	27.00 mm	2.50 mm	C0513500.0122	CHF 236.00
M 24-ISo2/6H	24.00 mm	18.00 mm	160.00 mm	30.00 mm	3.00 mm	C0513500.0124	CHF 204.50
7/16-20 UNF-2B	11.11 mm	8.00 mm	100.00 mm	13.00 mm	1.27 mm	C0513500.5046	CHF 91.00
1/2-20 UNF-2B	12.70 mm	9.00 mm	100.00 mm	13.00 mm	1.27 mm	C0513500.5047	CHF 91.50
9/16-18 UNF-2B	14.29 mm	11.00 mm	100.00 mm	15.00 mm	1.41 mm	C0513500.5048	CHF 137.00
5/8-18 UNF-2B	15.88 mm	12.00 mm	100.00 mm	15.00 mm	1.41 mm	C0513500.5049	CHF 121.00
3/4-16 UNF-2B	19.05 mm	14.00 mm	110.00 mm	17.00 mm	1.59 mm	C0513500.5050	CHF 158.50
7/8-14 UNF-2B	22.22 mm	18.00 mm	125.00 mm	17.00 mm	1.81 mm	C0513500.5051	CHF 196.00
1"-12 UNF-2B	25.40 mm	18.00 mm	140.00 mm	20.00 mm	2.12 mm	C0513500.5052	CHF 268.00
EG 3/8-24 UNF-2B STI	10.90 mm	8.00 mm	90.00 mm	11.00 mm	1.06 mm	C0513500.5641	CHF 130.00
EG 1/2-20 UNF-2B STI	14.35 mm	11.00 mm	100.00 mm	15.00 mm	1.27 mm	C0513500.5643	CHF 144.50
EG 5/8-18 UNF-2B STI	17.71 mm	14.00 mm	110.00 mm	17.00 mm	1.41 mm	C0513500.5645	CHF 220.50
EG 3/4-16 UNF-2B STI	21.11 mm	16.00 mm	125.00 mm	17.00 mm	1.59 mm	C0513500.5646	CHF 283.50
7/16-14 UNC-2B	11.11 mm	8.00 mm	100.00 mm	18.00 mm	1.81 mm	C0513500.5012	CHF 91.00
1/2-13 UNC-2B	12.70 mm	9.00 mm	110.00 mm	20.00 mm	1.95 mm	C0513500.5013	CHF 90.00
5/8-11 UNC-2B	15.88 mm	12.00 mm	110.00 mm	22.00 mm	2.31 mm	C0513500.5015	CHF 121.00
3/4-10 UNC-2B	19.05 mm	14.00 mm	125.00 mm	25.00 mm	2.54 mm	C0513500.5016	CHF 152.50
1"-8 UNC-2B	25.40 mm	18.00 mm	160.00 mm	30.00 mm	3.18 mm	C0513500.5018	CHF 241.00
EG 3/8-16 UNC-2B STI	11.59 mm	9.00 mm	100.00 mm	15.00 mm	1.59 mm	C0513500.5619	CHF 142.50
EG 1/2-13 UNC-2B STI	15.24 mm	12.00 mm	110.00 mm	22.00 mm	1.95 mm	C0513500.5621	CHF 134.00
EG 5/8-11 UNC-2B STI	18.88 mm	14.00 mm	125.00 mm	25.00 mm	2.31 mm	C0513500.5623	CHF 184.00
EG 3/4-10 UNC-2B STI	22.35 mm	18.00 mm	140.00 mm	27.00 mm	2.54 mm	C0513500.5624	CHF 228.00
G 1"-X ISo228	33.25 mm	25.00 mm	160.00 mm	24.00 mm	2.31 mm	C0513501.4042	CHF 379.50
G 1/2-X ISo228	20.96 mm	16.00 mm	125.00 mm	17.00 mm	1.81 mm	C0513501.4038	CHF 160.50
G 1/4-X ISo228	13.16 mm	11.00 mm	100.00 mm	15.00 mm	1.34 mm	C0513501.4036	CHF 99.50
G 3/4-X ISo228	26.44 mm	20.00 mm	140.00 mm	20.00 mm	1.81 mm	C0513501.4040	CHF 250.50
G 3/8-X ISo228	16.66 mm	12.00 mm	100.00 mm	15.00 mm	1.34 mm	C0513501.4037	CHF 123.00
EG M10-6H mod STI	11.95 mm	9.00 mm	100.00 mm	15.00 mm	1.50 mm	C0513500.0975	CHF 79.70
EG M12-6H mod STI	14.27 mm	11.00 mm	110.00 mm	20.00 mm	1.75 mm	C0513500.0977	CHF 92.90
EG M16-6H mod STI	18.60 mm	14.00 mm	125.00 mm	20.00 mm	2.00 mm	C0513500.0979	CHF 142.50
EG M20-6H mod STI	23.25 mm	18.00 mm	160.00 mm	30.00 mm	2.50 mm	C0513500.0981	CHF 193.50
LK-M 12-BT Self-Lock	12.00 mm	9.00 mm	110.00 mm	18.00 mm	1.75 mm	C0513500.1058	CHF 115.00
LK-M 16-BT Self-Lock	16.00 mm	12.00 mm	110.00 mm	22.00 mm	2.00 mm	C0513500.1060	CHF 162.00
1/2-14 NPSF	20.82 mm	16.00 mm	125.00 mm	17.00 mm	1.81 mm	C0513500.5908	CHF 196.00
1/4-18 NPSF	13.24 mm	11.00 mm	100.00 mm	15.00 mm	1.41 mm	C0513500.5906	CHF 116.00
1/8-27 NPSF	9.93 mm	7.00 mm	90.00 mm	10.00 mm	0.94 mm	C0513500.5905	CHF 84.10
1/16-27 NPSF	7.58 mm	6.00 mm	90.00 mm	10.00 mm	0.94 mm	C0513500.5904	CHF 114.00
3/8-18 NPSF	16.67 mm	12.00 mm	100.00 mm	15.00 mm	1.41 mm	C0513500.5907	CHF 150.50
Rp 1" DIN EN 10226	33.25 mm	25.00 mm	160.00 mm	24.00 mm	2.31 mm	C0513500.4097	CHF 484.00
Rp 1/2 DIN EN 10226	20.96 mm	16.00 mm	125.00 mm	17.00 mm	1.81 mm	C0513500.4095	CHF 198.50
Rp 1/4 DIN EN 10226	13.16 mm	11.00 mm	100.00 mm	15.00 mm	1.34 mm	C0513500.4093	CHF 137.00
Rp 1/8 DIN EN 10226	9.73 mm	7.00 mm	90.00 mm	10.00 mm	0.91 mm	C0513500.4092	CHF 105.50
Rp 3/4 DIN EN 10226	26.44 mm	20.00 mm	140.00 mm	20.00 mm	1.81 mm	C0513500.4096	CHF 359.00
Rp 3/8 DIN EN 10226	16.66 mm	12.00 mm	100.00 mm	15.00 mm	1.34 mm	C0513500.4094	CHF 183.00

Materialeignung

P	P1	P2	P3	P4	P5	P6
P

M	M1	M2	M3
M

K	K1	K2	K3	K4
K

N	N1	N2	N3	N4
N

S	S1	S2	S3	S4	S5
S

H	H1	H2	H3
H
