GF-MULTI-2xd1-R15-IKZ-HB-AlCr-T42 Gewindefräser aus Vollhartmetall

Artikelnummer:

Lieferbar innert 1-2 Arbeitstagen

Lieferbar ab externem Lager innert

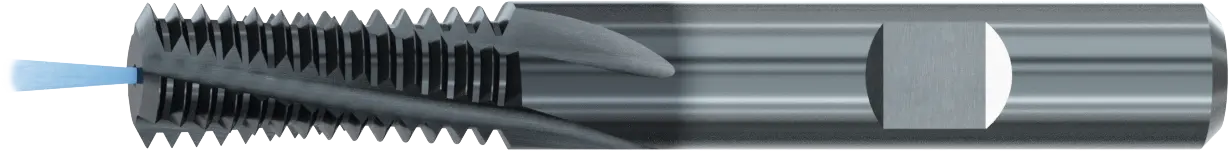

GF-MULTI-2xd1-R15-IKZ-HB-AlCr-T42 Gewindefräser aus Vollhartmetall

GF-MULTI-2xd1-R15-IKZ-HB-AlCr-T42 Gewindefräser aus Vollhartmetall – Bild 2

Abmessung

Leeren

Produktbeschreibung

Bearbeitung von Senkfase und Innengewinde.

Produktmerkmale und Vorteile:

Ruhiges Fräsverhalten durch Nuten mit 15° Drallwinkel.
Vorgebohrtes Kernloch notwendig.
Anfasen des Kernlochs mit Stirnfase möglich.
Steigungsgebunden.
Abmessungsübergreifend.

Internationaler Werkstoffvergleich

Zur Herstellerseite

Technische Details

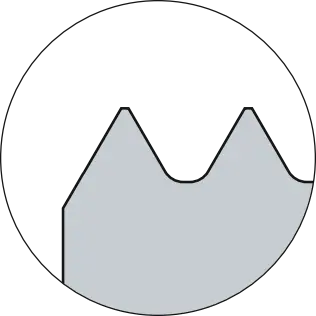

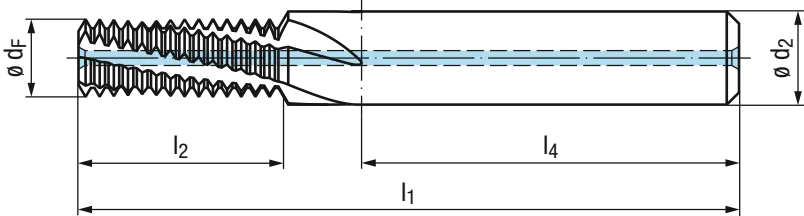

Schema GF-MULTI-2xd1-R15-IKZ-HB-AlCr-T42 Gewindefräser aus Vollhartmetall

Werkzeugtyp Gewinde	Gewindefräser
Gewindefräsertyp	Gewindefräser
Schneidstoff	HM
Schneidenanzahl (z)	2
Schaftform	HB
Marke	Emuge
Beschichtet	Ja

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Abmessung	d1	d2	l1	l2	Steigung	Artikelnummer	Preis
P=1/28 UN ab 1/4-28 UNF	6.35 mm	6.00 mm	58.00 mm	13.12 mm	0.91 mm	GFB6511A.5043	CHF 147.50
P=1/24 UN ab 5/16-24 UNF	7938.00 mm	8.00 mm	62.00 mm	16.37 mm	1.06 mm	GFB6511A.5044	CHF 160.00
P=1/24 UN ab 3/8-24 UNF	9.52 mm	10.00 mm	70.00 mm	19.54 mm	1.06 mm	GFB6511A.5045	CHF 199.00
P=1/20 UN ab 7/16-20 UNF	11.11 mm	10.00 mm	74.00 mm	23.46 mm	1.27 mm	GFB6511A.5046	CHF 199.00
P=1/20 UN ab 1/2-20 UNF	12.65 mm	12.00 mm	80.00 mm	26.00 mm	1.27 mm	GFB6511A.5047	CHF 229.50
P=1/18 UN ab 9/16-18 UNF	14.29 mm	14.00 mm	85.00 mm	28.88 mm	1.41 mm	GFB6511A.5048	CHF 327.00
P=1/18 UN ab 5/8-18 UNF	15.88 mm	14.00 mm	90.00 mm	33.11 mm	1.41 mm	GFB6511A.5049	CHF 327.00
P=1/16 UN ab 3/4-16 UNF	19.05 mm	16.00 mm	100.00 mm	38.84 mm	1.59 mm	GFB6511A.5050	CHF 380.50
P=1/32 UN ab Nr.10-32 UNF	4.80 mm	6.00 mm	55.00 mm	9.90 mm	0.79 mm	GFB6511A.5041	CHF 147.50
P=1/20 UN ab 1/4-20 UNC	6.30 mm	6.00 mm	58.00 mm	13.29 mm	1.27 mm	GFB6511A.5009	CHF 147.50
P=1/18 UN ab 5/16-18 UNC	7.90 mm	8.00 mm	62.00 mm	16.18 mm	1.41 mm	GFB6511A.5010	CHF 160.00
P=1/16 UN ab 3/8-16 UNC	9.50 mm	8.00 mm	65.00 mm	19.80 mm	1.59 mm	GFB6511A.5011	CHF 160.00
P=1/14 UN ab 7/16-14 UNC	11.05 mm	10.00 mm	74.00 mm	22.62 mm	1.81 mm	GFB6511A.5012	CHF 199.00
P=1/13 UN ab 1/2-13 UNC	12.70 mm	12.00 mm	80.00 mm	26.32 mm	1.95 mm	GFB6511A.5013	CHF 229.50
P=1/12 UN ab 9/16-12 UNC	14.20 mm	12.00 mm	85.00 mm	30.64 mm	2.12 mm	GFB6511A.5014	CHF 229.50
P=1/11 UN ab 5/8-11 UNC	15.80 mm	14.00 mm	90.00 mm	33.41 mm	2.31 mm	GFB6511A.5015	CHF 327.00
P=1/10 UN ab 3/4-10 UNC	19.00 mm	16.00 mm	100.00 mm	39.30 mm	2.54 mm	GFB6511A.5016	CHF 380.50
P=1/24 UN ab Nr.10-24 UNC	4.80 mm	6.00 mm	55.00 mm	12.02 mm	1.06 mm	GFB6511A.5007	CHF 147.50
P=0,5 ab M 3	3.00 mm	6.00 mm	51.00 mm	6.00 mm	0.50 mm	GFB6511A.0030	CHF 147.50
P=0,5 ab M5 x 0,5	5.00 mm	6.00 mm	55.00 mm	10.24 mm	0.50 mm	GFB6511A.0218	CHF 147.50
P=0,7 ab M 4	4.00 mm	6.00 mm	55.00 mm	8.72 mm	0.70 mm	GFB6511A.0040	CHF 147.50
P=0,8 ab M 5	5.00 mm	6.00 mm	55.00 mm	10.78 mm	0.80 mm	GFB6511A.0050	CHF 147.50
P=0,75 ab M 6x0,75	6.00 mm	6.00 mm	55.00 mm	12.35 mm	0.75 mm	GFB6511A.0229	CHF 147.50
P=0,75 ab M 8x0,75	8.00 mm	8.00 mm	63.00 mm	16.10 mm	0.75 mm	GFB6511A.0250	CHF 160.00
P=1,0 ab M 6	6.00 mm	6.00 mm	55.00 mm	12.47 mm	1.00 mm	GFB6511A.0060	CHF 147.50
P=1,0 ab M 8x1	8.00 mm	8.00 mm	63.00 mm	16.47 mm	1.00 mm	GFB6511A.0251	CHF 160.00
P=1,0 ab M 10x1	10.00 mm	10.00 mm	70.00 mm	20.47 mm	1.00 mm	GFB6511A.0276	CHF 199.00
P=1,0 ab M 12x1	12.00 mm	10.00 mm	74.00 mm	24.46 mm	1.00 mm	GFB6511A.0301	CHF 199.00
P=1,5 ab M 10	10.00 mm	10.00 mm	70.00 mm	21.71 mm	1.50 mm	GFB6511A.0100	CHF 199.00
P=1,5 ab M 12x1,5	12.00 mm	10.00 mm	74.00 mm	24.70 mm	1.50 mm	GFB6511A.0303	CHF 199.00
P=1,5 ab M 14x1,5	14.00 mm	12.00 mm	85.00 mm	29.20 mm	1.50 mm	GFB6511A.0331	CHF 229.50
P=1,5 ab M 16x1,5	16.00 mm	14.00 mm	90.00 mm	33.70 mm	1.50 mm	GFB6511A.0359	CHF 327.00
P=1,25 ab M 8	8.00 mm	8.00 mm	63.00 mm	16.84 mm	1.25 mm	GFB6511A.0080	CHF 160.00
P=1,75 ab M 12	12.00 mm	10.00 mm	74.00 mm	25.32 mm	1.75 mm	GFB6511A.0112	CHF 199.00
P=2,0 ab M 14	14.00 mm	12.00 mm	85.00 mm	28.94 mm	2.00 mm	GFB6511A.0114	CHF 229.50
P=2,0 ab M 16	15.95 mm	14.00 mm	90.00 mm	32.94 mm	2.00 mm	GFB6511A.0116	CHF 327.00

Materialeignung

P	P1	P2	P3	P4	P5	P6
P

M	M1	M2	M3
M

K	K1	K2	K3	K4
K

N	N1	N2	N3	N4
N

S	S1	S2	S3	S4	S5
S

H	H1	H2	H3
H
