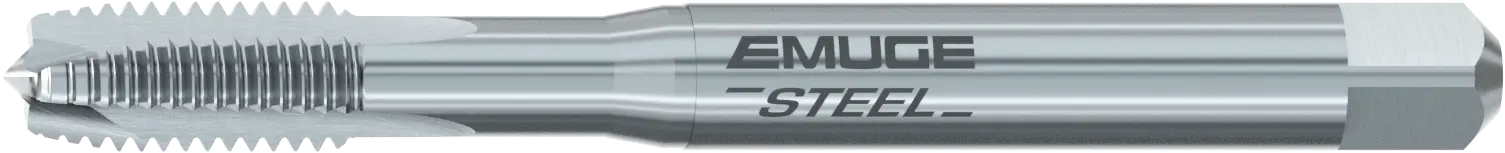

Rekord 1B-STEEL-L Maschinen-Gewindebohrer

Artikelnummer:

Lieferbar innert 1-2 Arbeitstagen

Lieferbar ab externem Lager innert

Abmessung

Zurücksetzen

Produktbeschreibung

HSSE-Gewindebohrer für Anwendungen in vielen Werkstoffen.

Produktmerkmale und Vorteile:

Der Schälanschnitt sorgt für optimale Spanabfuhr in Vorschubrichtung.

Internationaler Werkstoffvergleich

Zur Herstellerseite

Technische Details

Schema Rekord 1B-STEEL-L Maschinen-Gewindebohrer

Werkzeugtyp Gewinde	Gewindebohrer
Schneidstoff	HSS / HSSE
Kühlmittelzufuhr	äussere Kühlmittelzufuhr
Marke	Emuge
Bearbeitungsfall / Lochform	Durchgangsloch
Beschichtet	Nein
Anschnittform	Form B
Nutenform	Rek. B – Schälschnitt
Geometrie	STEEL

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Downloads

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Abmessung	d1	d2	l1	l2	l3	Steigung	Artikelnummer	Preis
M 1-4H/5H	1.00 mm	2.50 mm	40.00 mm	5.00 mm	10.00 mm	0.25 mm	B0208900.0010	CHF 77.20
M 1,1-4H/5H	1.10 mm	2.50 mm	40.00 mm	5.00 mm	10.00 mm	0.25 mm	B0208900.0011	CHF 80.10
M 1,2-4H/5H	1.20 mm	2.50 mm	40.00 mm	5.00 mm	10.00 mm	0.25 mm	B0208900.0012	CHF 73.30
M 1,4-4H/5H	1.40 mm	2.50 mm	40.00 mm	6.00 mm	10.00 mm	0.30 mm	B0208900.0014	CHF 65.60
M 1,7-ISo2/6H	1.70 mm	2.50 mm	40.00 mm	6.00 mm	11.00 mm	0.35 mm	B0208900.0017	CHF 61.70
M 2-7G	2.00 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.40 mm	B0208930.0020	CHF 55.10
M 2-ISo1/4H	2.00 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.40 mm	B0208910.0020	CHF 51.10
M 2-ISo2/6H	2.00 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.40 mm	B0208900.0020	CHF 47.40
M 2-ISo2/6H-LH	2.00 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.40 mm	B0208950.0020	CHF 66.60
M 2-ISo3/6G	2.00 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.40 mm	B0208920.0020	CHF 47.40
M 2,3-ISo2/6H	2.30 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.40 mm	B0208900.0023	CHF 52.60
M 2,5-7G	2.50 mm	2.80 mm	50.00 mm	9.00 mm	14.00 mm	0.45 mm	B0208930.0025	CHF 55.10
M 2,5-ISo1/4H	2.50 mm	2.80 mm	50.00 mm	9.00 mm	14.00 mm	0.45 mm	B0208910.0025	CHF 54.40
M 2,5-ISo2/6H	2.50 mm	2.80 mm	50.00 mm	9.00 mm	14.00 mm	0.45 mm	B0208900.0025	CHF 47.40
M 2,5-ISo2/6H-LH	2.50 mm	2.80 mm	50.00 mm	9.00 mm	14.00 mm	0.45 mm	B0208950.0025	CHF 66.60
M 2,5-ISo3/6G	2.50 mm	2.80 mm	50.00 mm	9.00 mm	14.00 mm	0.45 mm	B0208920.0025	CHF 47.40
M 2,6-ISo2/6H	2.60 mm	2.80 mm	50.00 mm	9.00 mm	14.00 mm	0.45 mm	B0208900.0026	CHF 52.60
M 3-7G	3.00 mm	3.50 mm	56.00 mm	11.00 mm	18.00 mm	0.50 mm	B0208930.0030	CHF 43.50
M 3-ISo1/4H	3.00 mm	3.50 mm	56.00 mm	11.00 mm	18.00 mm	0.50 mm	B0208910.0030	CHF 43.30
M 3-ISo2/6H	3.00 mm	3.50 mm	56.00 mm	11.00 mm	18.00 mm	0.50 mm	B0208900.0030	CHF 32.95
M 3-ISo2/6H-LH	3.00 mm	3.50 mm	56.00 mm	11.00 mm	18.00 mm	0.50 mm	B0208950.0030	CHF 51.60
M 3-ISo3/6G	3.00 mm	3.50 mm	56.00 mm	11.00 mm	18.00 mm	0.50 mm	B0208920.0030	CHF 37.05
M 3,5-ISo2/6H	3.50 mm	4.00 mm	56.00 mm	12.00 mm	20.00 mm	0.60 mm	B0208900.0035	CHF 38.90
M 3,5-ISo3/6G	3.50 mm	4.00 mm	56.00 mm	12.00 mm	20.00 mm	0.60 mm	B0208920.0035	CHF 39.15
M 4-7G	4.00 mm	4.50 mm	63.00 mm	13.00 mm	21.00 mm	0.70 mm	B0208930.0040	CHF 43.80
M 4-ISo1/4H	4.00 mm	4.50 mm	63.00 mm	13.00 mm	21.00 mm	0.70 mm	B0208910.0040	CHF 43.50
M 4-ISo2/6H	4.00 mm	4.50 mm	63.00 mm	13.00 mm	21.00 mm	0.70 mm	B0208900.0040	CHF 35.00
M 4-ISo2/6H-LH	4.00 mm	4.50 mm	63.00 mm	13.00 mm	21.00 mm	0.70 mm	B0208950.0040	CHF 52.00
M 4-ISo3/6G	4.00 mm	4.50 mm	63.00 mm	13.00 mm	21.00 mm	0.70 mm	B0208920.0040	CHF 38.55
M 5-7G	5.00 mm	6.00 mm	70.00 mm	15.00 mm	25.00 mm	0.80 mm	B0208930.0050	CHF 45.30
M 5-ISo1/4H	5.00 mm	6.00 mm	70.00 mm	15.00 mm	25.00 mm	0.80 mm	B0208910.0050	CHF 44.85
M 5-ISo2/6H	5.00 mm	6.00 mm	70.00 mm	15.00 mm	25.00 mm	0.80 mm	B0208900.0050	CHF 35.85
M 5-ISo2/6H-LH	5.00 mm	6.00 mm	70.00 mm	15.00 mm	25.00 mm	0.80 mm	B0208950.0050	CHF 54.70
M 5-ISo3/6G	5.00 mm	6.00 mm	70.00 mm	15.00 mm	25.00 mm	0.80 mm	B0208920.0050	CHF 39.65
M 5,5-ISo2/6H	5.50 mm	6.00 mm	80.00 mm	16.00 mm	30.00 mm	0.90 mm	B0208900.0055	CHF 77.20
M 6-7G	6.00 mm	6.00 mm	80.00 mm	17.00 mm	30.00 mm	1.00 mm	B0208930.0060	CHF 45.30
M 6-ISo1/4H	6.00 mm	6.00 mm	80.00 mm	17.00 mm	30.00 mm	1.00 mm	B0208910.0060	CHF 44.85
M 6-ISo2/6H	6.00 mm	6.00 mm	80.00 mm	17.00 mm	30.00 mm	1.00 mm	B0208900.0060	CHF 35.85
M 6-ISo2/6H-LH	6.00 mm	6.00 mm	80.00 mm	17.00 mm	30.00 mm	1.00 mm	B0208950.0060	CHF 54.70
M 6-ISo3/6G	6.00 mm	6.00 mm	80.00 mm	17.00 mm	30.00 mm	1.00 mm	B0208920.0060	CHF 39.65
M 7-ISo2/6H	7.00 mm	7.00 mm	80.00 mm	17.00 mm	30.00 mm	1.00 mm	B0208900.0070	CHF 45.85
M 8-7G	8.00 mm	8.00 mm	90.00 mm	20.00 mm	35.00 mm	1.25 mm	B0208930.0080	CHF 52.00
M 8-ISo1/4H	8.00 mm	8.00 mm	90.00 mm	20.00 mm	35.00 mm	1.25 mm	B0208910.0080	CHF 51.40
M 8-ISo2/6H	8.00 mm	8.00 mm	90.00 mm	20.00 mm	35.00 mm	1.25 mm	B0208900.0080	CHF 40.95
M 8-ISo2/6H-LH	8.00 mm	8.00 mm	90.00 mm	20.00 mm	35.00 mm	1.25 mm	B0208950.0080	CHF 63.30
M 8-ISo3/6G	8.00 mm	8.00 mm	90.00 mm	20.00 mm	35.00 mm	1.25 mm	B0208920.0080	CHF 45.00
M 9-ISo2/6H	9.00 mm	9.00 mm	90.00 mm	20.00 mm	35.00 mm	1.25 mm	B0208900.0090	CHF 85.50
M 10-7G	10.00 mm	10.00 mm	100.00 mm	22.00 mm	39.00 mm	1.50 mm	B0208930.0100	CHF 64.50
M 10-ISo1/4H	10.00 mm	10.00 mm	100.00 mm	22.00 mm	39.00 mm	1.50 mm	B0208910.0100	CHF 63.30
M 10-ISo2/6H	10.00 mm	10.00 mm	100.00 mm	22.00 mm	39.00 mm	1.50 mm	B0208900.0100	CHF 51.10
M 10-ISo2/6H-LH	10.00 mm	10.00 mm	100.00 mm	22.00 mm	39.00 mm	1.50 mm	B0208950.0100	CHF 78.30
M 10-ISo3/6G	10.00 mm	10.00 mm	100.00 mm	22.00 mm	39.00 mm	1.50 mm	B0208920.0100	CHF 55.50
M 12-ISo2/6H	12.00 mm	12.00 mm	110.00 mm	24.00 mm	44.00 mm	1.75 mm	B0208900.0112	CHF 63.90
M 16-ISo2/6H	1.60 mm	2.50 mm	40.00 mm	6.00 mm	11.00 mm	0.35 mm	B0208900.0016	CHF 62.70
M 18-ISo2/6H	1.80 mm	2.50 mm	40.00 mm	6.00 mm	11.00 mm	0.35 mm	B0208900.0018	CHF 56.00
M 22-ISo2/6H	2.20 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.45 mm	B0208900.0022	CHF 50.70
M 45-ISo2/6H	4.50 mm	6.00 mm	70.00 mm	14.00 mm	25.00 mm	0.75 mm	B0208900.0045	CHF 61.70
M 3,5x0,35-ISo2/6H	3.50 mm	4.00 mm	56.00 mm	9.00 mm	20.00 mm	0.35 mm	B0208900.0205	CHF 80.60
M 4x0,5-ISo2/6H	4.00 mm	4.50 mm	63.00 mm	10.00 mm	21.00 mm	0.50 mm	B0208900.0210	CHF 61.70
M 5x0,5-ISo2/6H	5.00 mm	6.00 mm	70.00 mm	11.00 mm	25.00 mm	0.50 mm	B0208900.0218	CHF 63.90
M 6x0,5-ISo2/6H	6.00 mm	6.00 mm	80.00 mm	13.00 mm	30.00 mm	0.50 mm	B0208900.0228	CHF 63.90
M 6x0,75-ISo2/6H	6.00 mm	6.00 mm	80.00 mm	13.00 mm	30.00 mm	0.75 mm	B0208900.0229	CHF 63.90
M 7x0,75-ISo2/6H	7.00 mm	7.00 mm	80.00 mm	13.00 mm	30.00 mm	0.75 mm	B0208900.0239	CHF 75.40
M 8x0,75-ISo2/6H	8.00 mm	8.00 mm	80.00 mm	14.00 mm	30.00 mm	0.75 mm	B0208900.0250	CHF 67.10
M 8x1-ISo2/6H	8.00 mm	8.00 mm	90.00 mm	17.00 mm	35.00 mm	1.00 mm	B0208900.0251	CHF 63.90
M 9x0,75-ISo2/6H	9.00 mm	9.00 mm	90.00 mm	14.00 mm	35.00 mm	0.75 mm	B0208900.0262	CHF 133.50
M 9x1-ISo2/6H	9.00 mm	9.00 mm	90.00 mm	17.00 mm	35.00 mm	1.00 mm	B0208900.0263	CHF 94.80
M 10x0,75-ISo2/6H	10.00 mm	10.00 mm	90.00 mm	15.00 mm	35.00 mm	0.75 mm	B0208900.0275	CHF 90.50
M 10x1-ISo2/6H	10.00 mm	10.00 mm	90.00 mm	18.00 mm	35.00 mm	1.00 mm	B0208900.0276	CHF 66.10
M 10x1,25-ISo2/6H	10.00 mm	10.00 mm	100.00 mm	18.00 mm	39.00 mm	1.25 mm	B0208900.0277	CHF 78.30
1/4-28 UNF-2B	6.35 mm	7.00 mm	80.00 mm	17.00 mm	30.00 mm	0.91 mm	B0208900.5043	CHF 55.50
1/4-28 UNF-3B	6.35 mm	7.00 mm	80.00 mm	17.00 mm	30.00 mm	0.91 mm	B0208910.5043	CHF 80.10
5/16-24 UNF-2B	7.94 mm	8.00 mm	90.00 mm	17.00 mm	35.00 mm	1.06 mm	B0208900.5044	CHF 63.30
5/16-24 UNF-3B	7.94 mm	8.00 mm	90.00 mm	17.00 mm	35.00 mm	1.06 mm	B0208910.5044	CHF 89.40
3/8-24 UNF-2B	9.52 mm	10.00 mm	90.00 mm	18.00 mm	35.00 mm	1.06 mm	B0208900.5045	CHF 64.50
3/8-24 UNF-3B	9.52 mm	10.00 mm	90.00 mm	18.00 mm	35.00 mm	1.06 mm	B0208910.5045	CHF 91.70
Nr.2-64 UNF-2B	2.18 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.40 mm	B0208900.5035	CHF 63.90
Nr.4-48 UNF-2B	2.84 mm	3.50 mm	56.00 mm	11.00 mm	18.00 mm	0.53 mm	B0208900.5037	CHF 55.30
Nr.6-40 UNF-2B	3.50 mm	4.00 mm	56.00 mm	12.00 mm	20.00 mm	0.64 mm	B0208900.5039	CHF 47.25
Nr.6-40 UNF-3B	3.50 mm	4.00 mm	56.00 mm	12.00 mm	20.00 mm	0.64 mm	B0208910.5039	CHF 70.60
Nr.8-36 UNF-2B	4.17 mm	4.50 mm	63.00 mm	13.00 mm	21.00 mm	0.71 mm	B0208900.5040	CHF 47.25
Nr.8-36 UNF-3B	4.17 mm	4.50 mm	63.00 mm	13.00 mm	21.00 mm	0.71 mm	B0208910.5040	CHF 70.60
Nr.10-32 UNF-2B	4.83 mm	6.00 mm	70.00 mm	15.00 mm	25.00 mm	0.79 mm	B0208900.5041	CHF 52.60
Nr.10-32 UNF-3B	4.83 mm	6.00 mm	70.00 mm	15.00 mm	25.00 mm	0.79 mm	B0208910.5041	CHF 71.70
1/4-20 UNC-2B	6.35 mm	7.00 mm	80.00 mm	17.00 mm	30.00 mm	1.27 mm	B0208900.5009	CHF 46.95
1/4-20 UNC-3B	6.35 mm	7.00 mm	80.00 mm	17.00 mm	30.00 mm	1.27 mm	B0208910.5009	CHF 69.00
5/16-18 UNC-2B	7.94 mm	8.00 mm	90.00 mm	20.00 mm	35.00 mm	1.41 mm	B0208900.5010	CHF 52.90
5/16-18 UNC-3B	7.94 mm	8.00 mm	90.00 mm	20.00 mm	35.00 mm	1.41 mm	B0208910.5010	CHF 77.20
3/8-16 UNC-2B	9.52 mm	10.00 mm	100.00 mm	22.00 mm	39.00 mm	1.59 mm	B0208900.5011	CHF 61.70
Nr.2-56 UNC-2B	2.18 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.45 mm	B0208900.5001	CHF 57.80
Nr.4-40 UNC-2B	2.84 mm	3.50 mm	56.00 mm	11.00 mm	18.00 mm	0.64 mm	B0208900.5003	CHF 48.30
Nr.6-32 UNC-2B	3.50 mm	4.00 mm	56.00 mm	12.00 mm	20.00 mm	0.79 mm	B0208900.5005	CHF 42.90
Nr.6-32 UNC-3B	3.50 mm	4.00 mm	56.00 mm	12.00 mm	20.00 mm	0.79 mm	B0208910.5005	CHF 59.40
Nr.8-32 UNC-2B	4.17 mm	4.50 mm	63.00 mm	13.00 mm	21.00 mm	0.79 mm	B0208900.5006	CHF 40.95
Nr.8-32 UNC-3B	4.17 mm	4.50 mm	63.00 mm	13.00 mm	21.00 mm	0.79 mm	B0208910.5006	CHF 59.40
Nr.10-24 UNC-2B	4.83 mm	6.00 mm	70.00 mm	15.00 mm	25.00 mm	1.06 mm	B0208900.5007	CHF 45.30
Nr.10-24 UNC-3B	4.83 mm	6.00 mm	70.00 mm	15.00 mm	25.00 mm	1.06 mm	B0208910.5007	CHF 62.70

Materialeignung

P	P1	P2	P3	P4	P5	P6
P

M	M1	M2	M3
M

K	K1	K2	K3	K4
K

N	N1	N2	N3	N4
N

S	S1	S2	S3	S4	S5
S

H	H1	H2	H3
H
