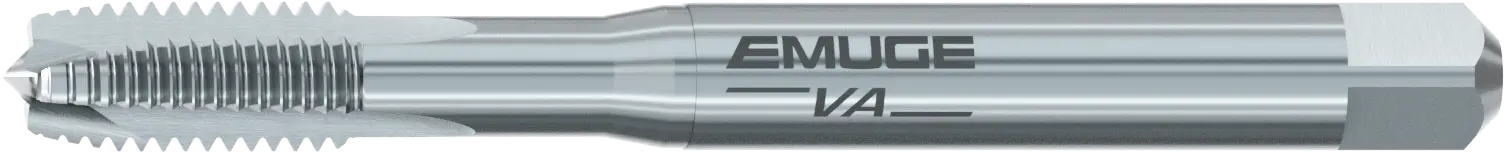

Rekord 1B-VA-NT Maschinen-Gewindebohrer

Artikelnummer:

Lieferbar innert 1-2 Arbeitstagen

Lieferbar ab externem Lager innert

Abmessung

Leeren

Produktbeschreibung

HSSE-Gewindebohrer für Anwendungen in vielen Werkstoffen.

Produktmerkmale und Vorteile:

Der Schälanschnitt sorgt für optimale Spanabfuhr in Vorschubrichtung.

Internationaler Werkstoffvergleich

Zur Herstellerseite

Technische Details

Schema Rekord 1B-VA-NT Maschinen-Gewindebohrer

Werkzeugtyp Gewinde	Gewindebohrer
Schneidstoff	HSS / HSSE
Schneidenanzahl (z)	2
Kühlmittelzufuhr	äussere Kühlmittelzufuhr
Marke	Emuge
Bearbeitungsfall / Lochform	Durchgangsloch
Beschichtet	Nein
Anschnittform	Form B
Nutenform	Rek. B – Schälschnitt
Geometrie	VA

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Downloads

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Abmessung	d1	d2	l1	l2	l3	Steigung	Artikelnummer	Preis
M 1-4H/5H	1.00 mm	2.50 mm	40.00 mm	5.00 mm	10.00 mm	0.25 mm	B0203000.0010	CHF 82.20
M 1,1-4H/5H	1.10 mm	2.50 mm	40.00 mm	5.00 mm	10.00 mm	0.25 mm	B0203000.0011	CHF 84.90
M 1,2-4H/5H	1.20 mm	2.50 mm	40.00 mm	5.00 mm	10.00 mm	0.25 mm	B0203000.0012	CHF 78.40
M 1,4-4H/5H	1.40 mm	2.50 mm	40.00 mm	6.00 mm	10.00 mm	0.30 mm	B0203000.0014	CHF 68.20
M 1,6-6H	1.60 mm	2.50 mm	40.00 mm	6.00 mm	11.00 mm	0.35 mm	B0203000.0016	CHF 65.10
M 1,7-ISo2/6H	1.70 mm	2.50 mm	40.00 mm	6.00 mm	11.00 mm	0.35 mm	B0203000.0017	CHF 64.10
M 1,8-6H	1.80 mm	2.50 mm	40.00 mm	6.00 mm	11.00 mm	0.35 mm	B0203000.0018	CHF 60.30
M 2-7G	2.00 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.40 mm	B0203030.0020	CHF 59.80
M 2-ISo1/4H	2.00 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.40 mm	B0203010.0020	CHF 57.50
M 2-ISo2/6H	2.00 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.40 mm	B0203000.0020	CHF 51.10

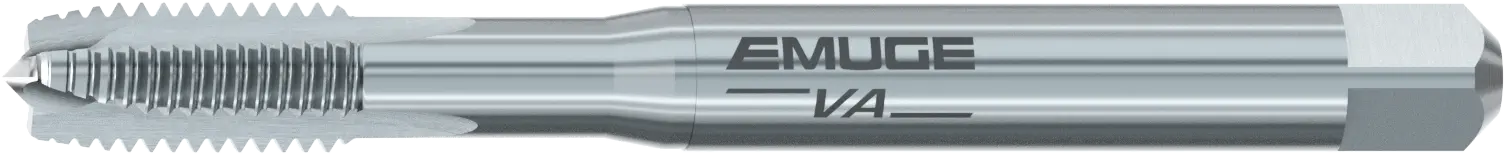

M 2-ISo2/6H-LH	2.00 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.40 mm	B0203050.0020	CHF 70.50
M 2-ISo3/6G	2.00 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.40 mm	B0203020.0020	CHF 51.10
M 2,3-ISo2/6H	2.30 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.40 mm	B0203000.0023	CHF 55.60
M 2,5-7G	2.50 mm	2.80 mm	50.00 mm	9.00 mm	14.00 mm	0.45 mm	B0203030.0025	CHF 58.20
M 2,5-ISo1/4H	2.50 mm	2.80 mm	50.00 mm	9.00 mm	14.00 mm	0.45 mm	B0203010.0025	CHF 57.50
M 2,5-ISo2/6H	2.50 mm	2.80 mm	50.00 mm	9.00 mm	14.00 mm	0.45 mm	B0203000.0025	CHF 50.00
M 2,5-ISo2/6H-LH	2.50 mm	2.80 mm	50.00 mm	9.00 mm	14.00 mm	0.45 mm	B0203050.0025	CHF 70.50
M 2,5-ISo3/6G	2.50 mm	2.80 mm	50.00 mm	9.00 mm	14.00 mm	0.45 mm	B0203020.0025	CHF 50.00
M 2,6-ISo2/6H	2.60 mm	2.80 mm	50.00 mm	9.00 mm	14.00 mm	0.45 mm	B0203000.0026	CHF 53.80
M 3-7G	3.00 mm	3.50 mm	56.00 mm	11.00 mm	18.00 mm	0.50 mm	B0203030.0030	CHF 46.45
M 3-ISo1/4H	3.00 mm	3.50 mm	56.00 mm	11.00 mm	18.00 mm	0.50 mm	B0203010.0030	CHF 45.15
M 3-ISo2/6H	3.00 mm	3.50 mm	56.00 mm	11.00 mm	18.00 mm	0.50 mm	B0203000.0030	CHF 37.65
M 3-ISo2/6H-LH	3.00 mm	3.50 mm	56.00 mm	11.00 mm	18.00 mm	0.50 mm	B0203050.0030	CHF 53.80
M 3-ISo3/6G	3.00 mm	3.50 mm	56.00 mm	11.00 mm	18.00 mm	0.50 mm	B0203020.0030	CHF 41.10
M 3,5-ISo2/6H	3.50 mm	4.00 mm	56.00 mm	12.00 mm	20.00 mm	0.60 mm	B0203000.0035	CHF 41.25
M 4-7G	4.00 mm	4.50 mm	63.00 mm	13.00 mm	21.00 mm	0.70 mm	B0203030.0040	CHF 47.10
M 4-ISo1/4H	4.00 mm	4.50 mm	63.00 mm	13.00 mm	21.00 mm	0.70 mm	B0203010.0040	CHF 45.60
M 4-ISo2/6H	4.00 mm	4.50 mm	63.00 mm	13.00 mm	21.00 mm	0.70 mm	B0203000.0040	CHF 38.15
M 4-ISo2/6H-LH	4.00 mm	4.50 mm	63.00 mm	13.00 mm	21.00 mm	0.70 mm	B0203050.0040	CHF 54.40
M 4-ISo3/6G	4.00 mm	4.50 mm	63.00 mm	13.00 mm	21.00 mm	0.70 mm	B0203020.0040	CHF 41.25
M 5-7G	5.00 mm	6.00 mm	70.00 mm	15.00 mm	25.00 mm	0.80 mm	B0203030.0050	CHF 48.50
M 5-ISo1/4H	5.00 mm	6.00 mm	70.00 mm	15.00 mm	25.00 mm	0.80 mm	B0203010.0050	CHF 48.10
M 5-ISo2/6H	5.00 mm	6.00 mm	70.00 mm	15.00 mm	25.00 mm	0.80 mm	B0203000.0050	CHF 38.60
M 5-ISo2/6H-LH	5.00 mm	6.00 mm	70.00 mm	15.00 mm	25.00 mm	0.80 mm	B0203050.0050	CHF 58.70
M 5-ISo3/6G	5.00 mm	6.00 mm	70.00 mm	15.00 mm	25.00 mm	0.80 mm	B0203020.0050	CHF 41.65
M 5,5-ISo2/6H	5.50 mm	6.00 mm	80.00 mm	16.00 mm	30.00 mm	0.90 mm	B0203000.0055	CHF 82.20
M 6-7G	6.00 mm	6.00 mm	80.00 mm	17.00 mm	30.00 mm	1.00 mm	B0203030.0060	CHF 49.45
M 6-ISo1/4H	6.00 mm	6.00 mm	80.00 mm	17.00 mm	30.00 mm	1.00 mm	B0203010.0060	CHF 48.10
M 6-ISo2/6H	6.00 mm	6.00 mm	80.00 mm	17.00 mm	30.00 mm	1.00 mm	B0203000.0060	CHF 39.35
M 6-ISo2/6H-LH	6.00 mm	6.00 mm	80.00 mm	17.00 mm	30.00 mm	1.00 mm	B0203050.0060	CHF 58.70
M 6-ISo3/6G	6.00 mm	6.00 mm	80.00 mm	17.00 mm	30.00 mm	1.00 mm	B0203020.0060	CHF 42.40
M 7-ISo2/6H	7.00 mm	7.00 mm	80.00 mm	17.00 mm	30.00 mm	1.00 mm	B0203000.0070	CHF 49.45
M 8-7G	8.00 mm	8.00 mm	90.00 mm	20.00 mm	35.00 mm	1.25 mm	B0203030.0080	CHF 53.80
M 8-ISo1/4H	8.00 mm	8.00 mm	90.00 mm	20.00 mm	35.00 mm	1.25 mm	B0203010.0080	CHF 53.80
M 8-ISo2/6H	8.00 mm	8.00 mm	90.00 mm	20.00 mm	35.00 mm	1.25 mm	B0203000.0080	CHF 44.10
M 8-ISo2/6H-LH	8.00 mm	8.00 mm	90.00 mm	20.00 mm	35.00 mm	1.25 mm	B0203050.0080	CHF 66.30
M 8-ISo3/6G	8.00 mm	8.00 mm	90.00 mm	20.00 mm	35.00 mm	1.25 mm	B0203020.0080	CHF 48.30
M 9-ISo2/6H	9.00 mm	9.00 mm	90.00 mm	20.00 mm	35.00 mm	1.25 mm	B0203000.0090	CHF 88.20
M 10-7G	10.00 mm	10.00 mm	100.00 mm	22.00 mm	39.00 mm	1.50 mm	B0203030.0100	CHF 66.30
M 10-ISo1/4H	10.00 mm	10.00 mm	100.00 mm	22.00 mm	39.00 mm	1.50 mm	B0203010.0100	CHF 66.90
M 10-ISo2/6H	10.00 mm	10.00 mm	100.00 mm	22.00 mm	39.00 mm	1.50 mm	B0203000.0100	CHF 53.40
M 10-ISo2/6H-LH	10.00 mm	10.00 mm	100.00 mm	22.00 mm	39.00 mm	1.50 mm	B0203050.0100	CHF 83.30
M 10-ISo3/6G	10.00 mm	10.00 mm	100.00 mm	22.00 mm	39.00 mm	1.50 mm	B0203020.0100	CHF 58.20
M 12-ISo2/6H	12.00 mm	12.00 mm	110.00 mm	24.00 mm	44.00 mm	1.75 mm	B0203000.0112	CHF 66.90
M 22-ISo2/6H	2.20 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.45 mm	B0203000.0022	CHF 53.40
M 45-ISo2/6H	4.50 mm	6.00 mm	70.00 mm	14.00 mm	25.00 mm	0.75 mm	B0203000.0045	CHF 64.10
1/4-28 UNF-2B	6.35 mm	7.00 mm	80.00 mm	17.00 mm	30.00 mm	0.91 mm	B0203000.5043	CHF 60.90
5/16-24 UNF-2B	7.94 mm	8.00 mm	90.00 mm	17.00 mm	35.00 mm	1.06 mm	B0203000.5044	CHF 67.80
3/8-24 UNF-2B	9.52 mm	10.00 mm	90.00 mm	18.00 mm	35.00 mm	1.06 mm	B0203000.5045	CHF 68.90
Nr.4-48 UNF-2B	2.84 mm	3.50 mm	56.00 mm	11.00 mm	18.00 mm	0.53 mm	B0203000.5037	CHF 60.90
Nr.6-40 UNF-2B	3.50 mm	4.00 mm	56.00 mm	12.00 mm	20.00 mm	0.64 mm	B0203000.5039	CHF 53.20
Nr.8-36 UNF-2B	4.17 mm	4.50 mm	63.00 mm	13.00 mm	21.00 mm	0.71 mm	B0203000.5040	CHF 53.20
Nr.10-32 UNF-2B	4.83 mm	6.00 mm	70.00 mm	15.00 mm	25.00 mm	0.79 mm	B0203000.5041	CHF 54.40
1/4-20 UNC-2B	6.35 mm	7.00 mm	80.00 mm	17.00 mm	30.00 mm	1.27 mm	B0203000.5009	CHF 51.10
5/16-18 UNC-2B	7.94 mm	8.00 mm	90.00 mm	20.00 mm	35.00 mm	1.41 mm	B0203000.5010	CHF 59.30
3/8-16 UNC-2B	9.52 mm	10.00 mm	100.00 mm	22.00 mm	39.00 mm	1.59 mm	B0203000.5011	CHF 64.50
Nr.2-56 UNC-2B	2.18 mm	2.80 mm	45.00 mm	7.00 mm	12.00 mm	0.45 mm	B0203000.5001	CHF 61.40
Nr.4-40 UNC-2B	2.84 mm	3.50 mm	56.00 mm	11.00 mm	18.00 mm	0.64 mm	B0203000.5003	CHF 49.45
Nr.6-32 UNC-2B	3.50 mm	4.00 mm	56.00 mm	12.00 mm	20.00 mm	0.79 mm	B0203000.5005	CHF 43.75
Nr.8-32 UNC-2B	4.17 mm	4.50 mm	63.00 mm	13.00 mm	21.00 mm	0.79 mm	B0203000.5006	CHF 43.75
Nr.10-24 UNC-2B	4.83 mm	6.00 mm	70.00 mm	15.00 mm	25.00 mm	1.06 mm	B0203000.5007	CHF 47.10

Materialeignung

P	P1	P2	P3	P4	P5	P6
P

M	M1	M2	M3
M

K	K1	K2	K3	K4
K

N	N1	N2	N3	N4
N

S	S1	S2	S3	S4	S5
S

H	H1	H2	H3
H
