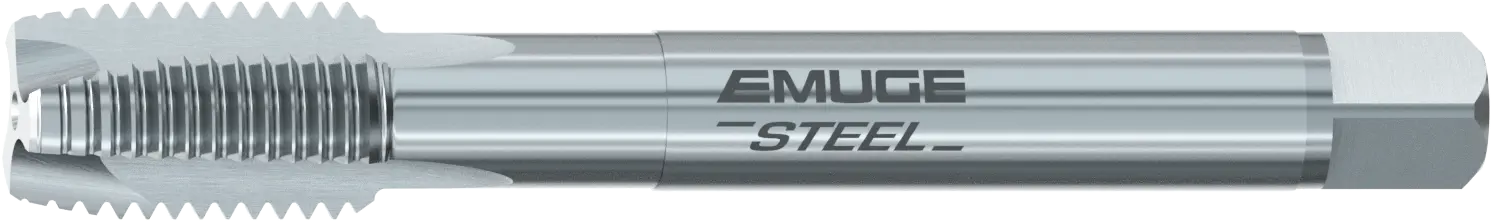

Rekord 2B-STEEL-L Maschinen-Gewindebohrer

Artikelnummer:

Lieferbar innert 1-2 Arbeitstagen

Lieferbar ab externem Lager innert

Rekord 2B-STEEL-L Maschinen-Gewindebohrer

Abmessung

Zurücksetzen

Produktbeschreibung

HSSE-Gewindebohrer für Anwendungen in Stahlwerkstoffen.

Produktmerkmale und Vorteile:

Der Schälanschnitt sorgt für optimale Spanabfuhr in Vorschubrichtung.

Internationaler Werkstoffvergleich

Zur Herstellerseite

Technische Details

Schema Rekord 2B-STEEL-L Maschinen-Gewindebohrer

Werkzeugtyp Gewinde	Gewindebohrer
Schneidenanzahl (z)	2
Kühlmittelzufuhr	äussere Kühlmittelzufuhr
Marke	Emuge
Bearbeitungsfall / Lochform	Durchgangsloch
Beschichtet	Nein
Anschnittform	Form B
Nutenform	Rek. B – Schälschnitt
Geometrie	STEEL

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Downloads

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Abmessung	d1	d2	l1	l2	Steigung	Artikelnummer	Preis
M 5-ISo2/6H	5.00 mm	3.50 mm	70.00 mm	15.00 mm	0.80 mm	C0208900.0050	CHF 44.85
M 6-ISo2/6H	6.00 mm	4.50 mm	80.00 mm	17.00 mm	1.00 mm	C0208900.0060	CHF 44.10
M 8-ISo2/6H	8.00 mm	6.00 mm	90.00 mm	20.00 mm	1.25 mm	C0208900.0080	CHF 49.15
M 10-ISo2/6H	10.00 mm	7.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208900.0100	CHF 57.80
M 11-ISo2/6H	11.00 mm	8.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208900.0111	CHF 101.50
M 12-7G	12.00 mm	9.00 mm	110.00 mm	24.00 mm	1.75 mm	C0208930.0112	CHF 69.00
M 12-ISo1/4H	12.00 mm	9.00 mm	110.00 mm	24.00 mm	1.75 mm	C0208910.0112	CHF 77.20
M 12-ISo2/6H	12.00 mm	9.00 mm	110.00 mm	24.00 mm	1.75 mm	C0208900.0112	CHF 63.30
M 12-ISo2/6H-LH	12.00 mm	9.00 mm	110.00 mm	24.00 mm	1.75 mm	C0208950.0112	CHF 96.50
M 12-ISo3/6G	12.00 mm	9.00 mm	110.00 mm	24.00 mm	1.75 mm	C0208920.0112	CHF 69.00
M 14-ISo2/6H	14.00 mm	11.00 mm	110.00 mm	26.00 mm	2.00 mm	C0208900.0114	CHF 101.50
M 16-7G	16.00 mm	12.00 mm	110.00 mm	27.00 mm	2.00 mm	C0208930.0116	CHF 100.00
M 16-ISo1/4H	16.00 mm	12.00 mm	110.00 mm	27.00 mm	2.00 mm	C0208910.0116	CHF 110.00
M 16-ISo2/6H	16.00 mm	12.00 mm	110.00 mm	27.00 mm	2.00 mm	C0208900.0116	CHF 89.40
M 16-ISo2/6H-LH	16.00 mm	12.00 mm	110.00 mm	27.00 mm	2.00 mm	C0208950.0116	CHF 142.00
M 16-ISo3/6G	16.00 mm	12.00 mm	110.00 mm	27.00 mm	2.00 mm	C0208920.0116	CHF 100.00
M 18-ISo2/6H	18.00 mm	14.00 mm	125.00 mm	30.00 mm	2.50 mm	C0208900.0118	CHF 155.50
M 20-7G	20.00 mm	16.00 mm	140.00 mm	32.00 mm	2.50 mm	C0208930.0120	CHF 154.50
M 20-ISo1/4H	20.00 mm	16.00 mm	140.00 mm	32.00 mm	2.50 mm	C0208910.0120	CHF 173.00
M 20-ISo2/6H	20.00 mm	16.00 mm	140.00 mm	32.00 mm	2.50 mm	C0208900.0120	CHF 140.00
M 20-ISo2/6H-LH	20.00 mm	16.00 mm	140.00 mm	32.00 mm	2.50 mm	C0208950.0120	CHF 210.00
M 20-ISo3/6G	20.00 mm	16.00 mm	140.00 mm	32.00 mm	2.50 mm	C0208920.0120	CHF 154.50
M 22-ISo2/6H	22.00 mm	18.00 mm	140.00 mm	32.00 mm	2.50 mm	C0208900.0122	CHF 246.50
M 24-7G	24.00 mm	18.00 mm	160.00 mm	34.00 mm	3.00 mm	C0208930.0124	CHF 210.00
M 24-ISo1/4H	24.00 mm	18.00 mm	160.00 mm	34.00 mm	3.00 mm	C0208910.0124	CHF 231.00
M 24-ISo2/6H	24.00 mm	18.00 mm	160.00 mm	34.00 mm	3.00 mm	C0208900.0124	CHF 207.50
M 24-ISo2/6H-LH	24.00 mm	18.00 mm	160.00 mm	34.00 mm	3.00 mm	C0208950.0124	CHF 286.50
M 24-ISo3/6G	24.00 mm	18.00 mm	160.00 mm	34.00 mm	3.00 mm	C0208920.0124	CHF 210.00
M 27-ISo2/6H	27.00 mm	20.00 mm	160.00 mm	36.00 mm	3.00 mm	C0208900.0127	CHF 263.50
M 30-ISo2/6H	30.00 mm	22.00 mm	180.00 mm	40.00 mm	3.50 mm	C0208900.0130	CHF 310.50
M 33-ISo2/6H	33.00 mm	25.00 mm	180.00 mm	40.00 mm	3.50 mm	C0208900.0133	CHF 409.00
M 36-ISo2/6H	36.00 mm	28.00 mm	200.00 mm	50.00 mm	4.00 mm	C0208900.0136	CHF 506.00
M 39-ISo2/6H	39.00 mm	32.00 mm	200.00 mm	50.00 mm	4.00 mm	C0208900.0139	CHF 771.00
M 42-ISo2/6H	42.00 mm	32.00 mm	200.00 mm	56.00 mm	4.50 mm	C0208900.0142	CHF 803.00
M 45-ISo2/6H	45.00 mm	36.00 mm	220.00 mm	58.00 mm	4.50 mm	C0208900.0145	CHF 953.00
M 48-ISo2/6H	48.00 mm	36.00 mm	250.00 mm	65.00 mm	5.00 mm	C0208900.0148	CHF 1'092.00
M 52-ISo2/6H	52.00 mm	40.00 mm	250.00 mm	65.00 mm	5.00 mm	C0208900.0152	CHF 1'435.00
M 4x0,5-ISo2/6H	4.00 mm	2.80 mm	63.00 mm	10.00 mm	0.50 mm	C0208900.0210	CHF 69.00
M 4x0,35-ISo2/6H	4.00 mm	2.80 mm	63.00 mm	10.00 mm	0.35 mm	C0208900.0209	CHF 107.00
M 5x0,5-ISo2/6H	5.00 mm	3.50 mm	70.00 mm	11.00 mm	0.50 mm	C0208900.0218	CHF 63.90
M 6x0,5-ISo2/6H	6.00 mm	4.50 mm	80.00 mm	13.00 mm	0.50 mm	C0208900.0228	CHF 63.90
M 6x0,75-ISo2/6H	6.00 mm	4.50 mm	80.00 mm	13.00 mm	0.75 mm	C0208900.0229	CHF 63.90
M 8x0,75-ISo2/6H	8.00 mm	6.00 mm	80.00 mm	14.00 mm	0.75 mm	C0208900.0250	CHF 69.60
M 8x1-ISo2/6H	8.00 mm	6.00 mm	90.00 mm	17.00 mm	1.00 mm	C0208900.0251	CHF 63.90
M 9x1-ISo2/6H	9.00 mm	7.00 mm	90.00 mm	17.00 mm	1.00 mm	C0208900.0263	CHF 96.50
M 10x0,75-ISo2/6H	10.00 mm	7.00 mm	90.00 mm	18.00 mm	0.75 mm	C0208900.0275	CHF 90.50
M 10x1-ISo2/6H	10.00 mm	7.00 mm	90.00 mm	18.00 mm	1.00 mm	C0208900.0276	CHF 66.10
M 10x1,25-ISo2/6H	10.00 mm	7.00 mm	100.00 mm	22.00 mm	1.25 mm	C0208900.0277	CHF 86.60
M 11x1-ISo2/6H	11.00 mm	8.00 mm	90.00 mm	18.00 mm	1.00 mm	C0208900.0288	CHF 109.00
M 12x1-ISo2/6H	12.00 mm	9.00 mm	100.00 mm	18.00 mm	1.00 mm	C0208900.0301	CHF 77.20
M 12x1,5-ISo2/6H	12.00 mm	9.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208900.0303	CHF 73.30
M 12x1,25-ISo2/6H	12.00 mm	9.00 mm	100.00 mm	22.00 mm	1.25 mm	C0208900.0302	CHF 87.10
M 14x1-ISo2/6H	14.00 mm	11.00 mm	100.00 mm	18.00 mm	1.00 mm	C0208900.0329	CHF 103.50
M 14x1,5-ISo2/6H	14.00 mm	11.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208900.0331	CHF 97.70
M 14x1,25-ISo2/6H	14.00 mm	11.00 mm	100.00 mm	22.00 mm	1.25 mm	C0208900.0330	CHF 98.20
M 15x1-ISo2/6H	15.00 mm	12.00 mm	100.00 mm	18.00 mm	1.00 mm	C0208900.0343	CHF 133.50
M 16x1-ISo2/6H	16.00 mm	12.00 mm	100.00 mm	18.00 mm	1.00 mm	C0208900.0357	CHF 115.50
M 16x1,5-ISo2/6H	16.00 mm	12.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208900.0359	CHF 110.00
M 18x1-ISo2/6H	18.00 mm	14.00 mm	110.00 mm	20.00 mm	1.00 mm	C0208900.0388	CHF 160.00
M 18x1,5-ISo2/6H	18.00 mm	14.00 mm	110.00 mm	25.00 mm	1.50 mm	C0208900.0390	CHF 132.00
M 18x2-ISo2/6H	18.00 mm	14.00 mm	125.00 mm	26.00 mm	2.00 mm	C0208900.0391	CHF 143.00
M 20x1-ISo2/6H	20.00 mm	16.00 mm	125.00 mm	20.00 mm	1.00 mm	C0208900.0420	CHF 179.00
M 20x1,5-ISo2/6H	20.00 mm	16.00 mm	125.00 mm	25.00 mm	1.50 mm	C0208900.0422	CHF 154.50
M 20x2-ISo2/6H	20.00 mm	16.00 mm	140.00 mm	27.00 mm	2.00 mm	C0208900.0423	CHF 210.00
M 22x1-ISo2/6H	22.00 mm	18.00 mm	125.00 mm	20.00 mm	1.00 mm	C0208900.0436	CHF 255.00
M 22x1,5-ISo2/6H	22.00 mm	18.00 mm	125.00 mm	25.00 mm	1.50 mm	C0208900.0438	CHF 161.00
M 22x2-ISo2/6H	22.00 mm	18.00 mm	140.00 mm	27.00 mm	2.00 mm	C0208900.0439	CHF 224.50
M 24x1-ISo2/6H	24.00 mm	18.00 mm	140.00 mm	20.00 mm	1.00 mm	C0208900.0450	CHF 266.50
M 24x1,5-ISo2/6H	24.00 mm	18.00 mm	140.00 mm	27.00 mm	1.50 mm	C0208900.0452	CHF 176.50
M 24x2-ISo2/6H	24.00 mm	18.00 mm	140.00 mm	27.00 mm	2.00 mm	C0208900.0453	CHF 205.00
M 25x1,5-ISo2/6H	25.00 mm	18.00 mm	140.00 mm	28.00 mm	1.50 mm	C0208900.0458	CHF 315.00
M 26x1,5-ISo2/6H	26.00 mm	18.00 mm	140.00 mm	28.00 mm	1.50 mm	C0208900.0464	CHF 216.50
M 27x1,5-ISo2/6H	27.00 mm	20.00 mm	140.00 mm	28.00 mm	1.50 mm	C0208900.0470	CHF 285.00
M 27x2-ISo2/6H	27.00 mm	20.00 mm	140.00 mm	28.00 mm	2.00 mm	C0208900.0471	CHF 268.00
M 28x1,5-ISo2/6H	28.00 mm	20.00 mm	140.00 mm	28.00 mm	1.50 mm	C0208900.0476	CHF 263.50
M 28x2-ISo2/6H	28.00 mm	20.00 mm	140.00 mm	28.00 mm	2.00 mm	C0208900.0477	CHF 345.00
M 30x1,5-ISo2/6H	30.00 mm	22.00 mm	150.00 mm	28.00 mm	1.50 mm	C0208900.0490	CHF 268.00
M 30x2-ISo2/6H	30.00 mm	22.00 mm	150.00 mm	28.00 mm	2.00 mm	C0208900.0491	CHF 302.00
M 32x1,5-ISo2/6H	32.00 mm	22.00 mm	150.00 mm	28.00 mm	1.50 mm	C0208900.0504	CHF 340.50
M 32x2-ISo2/6H	32.00 mm	22.00 mm	150.00 mm	28.00 mm	2.00 mm	C0208900.0505	CHF 385.50
M 33x1,5-ISo2/6H	33.00 mm	25.00 mm	160.00 mm	30.00 mm	1.50 mm	C0208900.0511	CHF 385.50
M 33x2-ISo2/6H	33.00 mm	25.00 mm	160.00 mm	30.00 mm	2.00 mm	C0208900.0512	CHF 385.50
M 34x1,5-ISo2/6H	34.00 mm	28.00 mm	170.00 mm	30.00 mm	1.50 mm	C0208900.0518	CHF 473.50
M 35x1,5-ISo2/6H	35.00 mm	28.00 mm	170.00 mm	30.00 mm	1.50 mm	C0208900.0525	CHF 480.00
M 36x1,5-ISo2/6H	36.00 mm	28.00 mm	170.00 mm	30.00 mm	1.50 mm	C0208900.0532	CHF 420.00
M 36x2-ISo2/6H	36.00 mm	28.00 mm	170.00 mm	30.00 mm	2.00 mm	C0208900.0533	CHF 480.00
M 36x3-ISo2/6H	36.00 mm	28.00 mm	200.00 mm	42.00 mm	3.00 mm	C0208900.0534	CHF 529.00
M 38x1,5-ISo2/6H	38.00 mm	28.00 mm	170.00 mm	30.00 mm	1.50 mm	C0208900.0546	CHF 462.50
M 39x1,5-ISo2/6H	39.00 mm	32.00 mm	170.00 mm	30.00 mm	1.50 mm	C0208900.0553	CHF 546.00
M 39x2-ISo2/6H	39.00 mm	32.00 mm	170.00 mm	30.00 mm	2.00 mm	C0208900.0554	CHF 589.00
M 40x1,5-ISo2/6H	40.00 mm	32.00 mm	170.00 mm	30.00 mm	1.50 mm	C0208900.0560	CHF 506.00
M 40x2-ISo2/6H	40.00 mm	32.00 mm	170.00 mm	30.00 mm	2.00 mm	C0208900.0561	CHF 578.00
M 42x1,5-ISo2/6H	42.00 mm	32.00 mm	170.00 mm	30.00 mm	1.50 mm	C0208900.0574	CHF 546.00
M 42x2-ISo2/6H	42.00 mm	32.00 mm	170.00 mm	30.00 mm	2.00 mm	C0208900.0575	CHF 653.00
M 42x3-ISo2/6H	42.00 mm	32.00 mm	200.00 mm	45.00 mm	3.00 mm	C0208900.0576	CHF 760.00
M 45x1,5-ISo2/6H	45.00 mm	36.00 mm	180.00 mm	32.00 mm	1.50 mm	C0208900.0595	CHF 600.00
M 45x2-ISo2/6H	45.00 mm	36.00 mm	180.00 mm	32.00 mm	2.00 mm	C0208900.0596	CHF 803.00
M 45x3-ISo2/6H	45.00 mm	36.00 mm	200.00 mm	45.00 mm	3.00 mm	C0208900.0597	CHF 868.00
M 48x1,5-ISo2/6H	48.00 mm	36.00 mm	190.00 mm	32.00 mm	1.50 mm	C0208900.0616	CHF 760.00
M 48x2-ISo2/6H	48.00 mm	36.00 mm	190.00 mm	32.00 mm	2.00 mm	C0208900.0617	CHF 932.00
M 48x3-ISo2/6H	48.00 mm	36.00 mm	225.00 mm	50.00 mm	3.00 mm	C0208900.0618	CHF 975.00
M 50x1,5-ISo2/6H	50.00 mm	36.00 mm	190.00 mm	32.00 mm	1.50 mm	C0208900.0630	CHF 835.00
M 50x2-ISo2/6H	50.00 mm	36.00 mm	190.00 mm	32.00 mm	2.00 mm	C0208900.0631	CHF 1'071.00
M 52x1,5-ISo2/6H	52.00 mm	40.00 mm	190.00 mm	32.00 mm	1.50 mm	C0208900.0644	CHF 921.00
M 52x2-ISo2/6H	52.00 mm	40.00 mm	190.00 mm	32.00 mm	2.00 mm	C0208900.0645	CHF 1'092.00
M 52x3-ISo2/6H	52.00 mm	40.00 mm	225.00 mm	50.00 mm	3.00 mm	C0208900.0646	CHF 1'135.00
1/4-28 UNF-2B	6.35 mm	4.50 mm	80.00 mm	17.00 mm	0.91 mm	C0208900.5043	CHF 69.60
5/16-24 UNF-2B	7.94 mm	6.00 mm	90.00 mm	17.00 mm	1.06 mm	C0208900.5044	CHF 63.30
3/8-24 UNF-2B	9.52 mm	7.00 mm	90.00 mm	18.00 mm	1.06 mm	C0208900.5045	CHF 64.50
7/16-20 UNF-2B	11.11 mm	8.00 mm	100.00 mm	22.00 mm	1.27 mm	C0208900.5046	CHF 82.10
1/2-20 UNF-2B	12.70 mm	9.00 mm	100.00 mm	22.00 mm	1.27 mm	C0208900.5047	CHF 82.10
1/2-20 UNF-3B	12.70 mm	9.00 mm	100.00 mm	22.00 mm	1.27 mm	C0208910.5047	CHF 111.00
5/8-18 UNF-2B	15.88 mm	12.00 mm	100.00 mm	22.00 mm	1.41 mm	C0208900.5049	CHF 110.00
5/8-18 UNF-3B	15.88 mm	12.00 mm	100.00 mm	22.00 mm	1.41 mm	C0208910.5049	CHF 155.50
3/4-16 UNF-2B	19.05 mm	14.00 mm	110.00 mm	25.00 mm	1.59 mm	C0208900.5050	CHF 143.00
3/4-16 UNF-3B	19.05 mm	14.00 mm	110.00 mm	25.00 mm	1.59 mm	C0208910.5050	CHF 201.00
7/8-14 UNF-2B	22.22 mm	18.00 mm	125.00 mm	25.00 mm	1.81 mm	C0208900.5051	CHF 181.00
1"-12 UNF-2B	25.40 mm	18.00 mm	140.00 mm	28.00 mm	2.12 mm	C0208900.5052	CHF 238.00
1 1/8-12 UNF-2B	28.58 mm	22.00 mm	150.00 mm	28.00 mm	2.12 mm	C0208900.5053	CHF 300.00
1 1/4-12 UNF-2B	31.75 mm	22.00 mm	150.00 mm	28.00 mm	2.12 mm	C0208900.5054	CHF 343.00
1 3/8-12 UNF-2B	34.92 mm	28.00 mm	170.00 mm	30.00 mm	2.12 mm	C0208900.5055	CHF 460.50
1 1/2-12 UNF-2B	38.10 mm	28.00 mm	170.00 mm	30.00 mm	2.12 mm	C0208900.5056	CHF 521.00
1/4-20 UNC-2B	6.35 mm	4.50 mm	80.00 mm	17.00 mm	1.27 mm	C0208900.5009	CHF 52.60
5/16-18 UNC-2B	7.94 mm	6.00 mm	90.00 mm	20.00 mm	1.41 mm	C0208900.5010	CHF 52.60
3/8-16 UNC-2B	9.52 mm	7.00 mm	100.00 mm	22.00 mm	1.59 mm	C0208900.5011	CHF 61.70
7/16-14 UNC-2B	11.11 mm	8.00 mm	100.00 mm	22.00 mm	1.81 mm	C0208900.5012	CHF 75.40
7/16-14 UNC-3B	11.11 mm	8.00 mm	100.00 mm	22.00 mm	1.81 mm	C0208910.5012	CHF 108.50
1/2-13 UNC-2B	12.70 mm	9.00 mm	110.00 mm	25.00 mm	1.95 mm	C0208900.5013	CHF 81.50
1/2-13 UNC-3B	12.70 mm	9.00 mm	110.00 mm	25.00 mm	1.95 mm	C0208910.5013	CHF 118.00
5/8-11 UNC-2B	15.88 mm	12.00 mm	110.00 mm	27.00 mm	2.31 mm	C0208900.5015	CHF 105.50
5/8-11 UNC-3B	15.88 mm	12.00 mm	110.00 mm	27.00 mm	2.31 mm	C0208910.5015	CHF 155.50
3/4-10 UNC-2B	19.05 mm	14.00 mm	125.00 mm	30.00 mm	2.54 mm	C0208900.5016	CHF 135.00
3/4-10 UNC-3B	19.05 mm	14.00 mm	125.00 mm	30.00 mm	2.54 mm	C0208910.5016	CHF 193.00
7/8-9 UNC-2B	22.22 mm	18.00 mm	140.00 mm	32.00 mm	2.82 mm	C0208900.5017	CHF 172.00
1"-8 UNC-2B	25.40 mm	18.00 mm	160.00 mm	36.00 mm	3.18 mm	C0208900.5018	CHF 213.50
1 1/4-7 UNC-2B	31.75 mm	22.00 mm	180.00 mm	40.00 mm	3.63 mm	C0208900.5020	CHF 353.50
1 1/2-6 UNC-2B	38.10 mm	28.00 mm	200.00 mm	50.00 mm	4.23 mm	C0208900.5022	CHF 521.00
1 3/4-5 UNC-2B	44.45 mm	36.00 mm	220.00 mm	58.00 mm	5.08 mm	C0208900.5023	CHF 739.00
2"-4 1/2 UNC-2B	50.80 mm	40.00 mm	250.00 mm	65.00 mm	5.64 mm	C0208900.5024	CHF 953.00
G 1 1/2-X ISo228	47.80 mm	36.00 mm	190.00 mm	32.00 mm	2.31 mm	C0208901.4046	CHF 771.00
G 2"-X ISo228	59.61 mm	45.00 mm	220.00 mm	40.00 mm	2.31 mm	C0208901.4050	CHF 1'135.00

Materialeignung

P	P1	P2	P3	P4	P5	P6
P

M	M1	M2	M3
M

K	K1	K2	K3	K4
K

N	N1	N2	N3	N4
N

S	S1	S2	S3	S4	S5
S

H	H1	H2	H3
H
