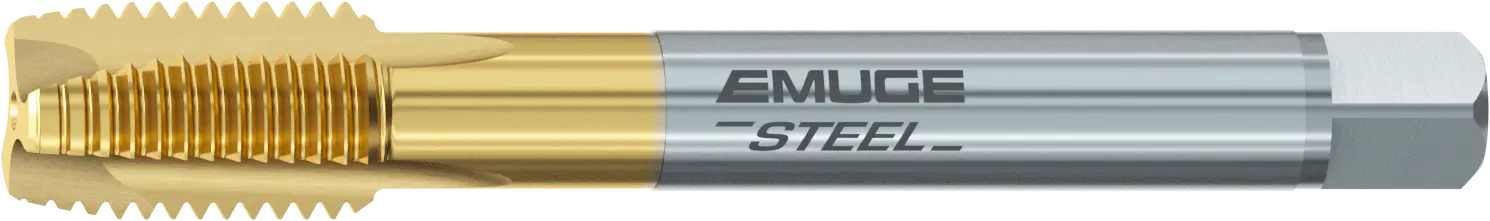

Rekord 2B-STEEL-L-TIN Maschinen-Gewindebohrer

Artikelnummer:

Lieferbar innert 1-2 Arbeitstagen

Lieferbar ab externem Lager innert

Rekord 2B-STEEL-L-TIN Maschinen-Gewindebohrer

Abmessung

Zurücksetzen

Produktbeschreibung

HSSE-Gewindebohrer für Anwendungen in Stahlwerkstoffen.

Produktmerkmale und Vorteile:

Der Schälanschnitt sorgt für optimale Spanabfuhr in Vorschubrichtung.

Internationaler Werkstoffvergleich

Zur Herstellerseite

Technische Details

Schema Rekord 2B-STEEL-L-TIN Maschinen-Gewindebohrer

Werkzeugtyp Gewinde	Gewindebohrer
Schneidstoff	HSS / HSSE
Kühlmittelzufuhr	äussere Kühlmittelzufuhr
Marke	Emuge
Bearbeitungsfall / Lochform	Durchgangsloch
Beschichtet	Ja
Anschnittform	Form B
Nutenform	Rek. B – Schälschnitt
Geometrie	STEEL

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Downloads

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Abmessung	d1	d2	l1	l2	Steigung	Artikelnummer	Preis
M 5-ISo2/6H	5.00 mm	3.50 mm	70.00 mm	15.00 mm	0.80 mm	C0208400.0050	CHF 59.40
M 6-ISo2/6H	6.00 mm	4.50 mm	80.00 mm	17.00 mm	1.00 mm	C0208400.0060	CHF 71.70
M 8-ISo2/6H	8.00 mm	6.00 mm	90.00 mm	20.00 mm	1.25 mm	C0208400.0080	CHF 80.10
M 10-ISo2/6H	10.00 mm	7.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208400.0100	CHF 96.50
M 11-ISo2/6H	11.00 mm	8.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208400.0111	CHF 144.50
M 12-7G	12.00 mm	9.00 mm	110.00 mm	24.00 mm	1.75 mm	C0208430.0112	CHF 109.50
M 12-ISo1/4H	12.00 mm	9.00 mm	110.00 mm	24.00 mm	1.75 mm	C0208410.0112	CHF 118.50
M 12-ISo2/6H	12.00 mm	9.00 mm	110.00 mm	24.00 mm	1.75 mm	C0208400.0112	CHF 100.00
M 12-ISo2/6H-LH	12.00 mm	9.00 mm	110.00 mm	24.00 mm	1.75 mm	C0208450.0112	CHF 141.00
M 12-ISo3/6G	12.00 mm	9.00 mm	110.00 mm	24.00 mm	1.75 mm	C0208420.0112	CHF 109.50
M 14-ISo2/6H	14.00 mm	11.00 mm	110.00 mm	26.00 mm	2.00 mm	C0208400.0114	CHF 152.00
M 16-7G	16.00 mm	12.00 mm	110.00 mm	27.00 mm	2.00 mm	C0208430.0116	CHF 152.00
M 16-ISo1/4H	16.00 mm	12.00 mm	110.00 mm	27.00 mm	2.00 mm	C0208410.0116	CHF 163.00
M 16-ISo2/6H	16.00 mm	12.00 mm	110.00 mm	27.00 mm	2.00 mm	C0208400.0116	CHF 140.00
M 16-ISo2/6H-LH	16.00 mm	12.00 mm	110.00 mm	27.00 mm	2.00 mm	C0208450.0116	CHF 199.50
M 16-ISo3/6G	16.00 mm	12.00 mm	110.00 mm	27.00 mm	2.00 mm	C0208420.0116	CHF 152.00
M 18-ISo2/6H	18.00 mm	14.00 mm	125.00 mm	30.00 mm	2.50 mm	C0208400.0118	CHF 246.50
M 20-7G	20.00 mm	16.00 mm	140.00 mm	32.00 mm	2.50 mm	C0208430.0120	CHF 261.50
M 20-ISo1/4H	20.00 mm	16.00 mm	140.00 mm	32.00 mm	2.50 mm	C0208410.0120	CHF 279.50
M 20-ISo2/6H	20.00 mm	16.00 mm	140.00 mm	32.00 mm	2.50 mm	C0208400.0120	CHF 244.00
M 20-ISo2/6H-LH	20.00 mm	16.00 mm	140.00 mm	32.00 mm	2.50 mm	C0208450.0120	CHF 322.00
M 20-ISo3/6G	20.00 mm	16.00 mm	140.00 mm	32.00 mm	2.50 mm	C0208420.0120	CHF 261.50
M 22-ISo2/6H	22.00 mm	18.00 mm	140.00 mm	32.00 mm	2.50 mm	C0208400.0122	CHF 366.00
M 24-7G	24.00 mm	18.00 mm	160.00 mm	34.00 mm	3.00 mm	C0208430.0124	CHF 301.00
M 24-ISo1/4H	24.00 mm	18.00 mm	160.00 mm	34.00 mm	3.00 mm	C0208410.0124	CHF 328.50
M 24-ISo2/6H	24.00 mm	18.00 mm	160.00 mm	34.00 mm	3.00 mm	C0208400.0124	CHF 297.00
M 24-ISo2/6H-LH	24.00 mm	18.00 mm	160.00 mm	34.00 mm	3.00 mm	C0208450.0124	CHF 391.50
M 24-ISo3/6G	24.00 mm	18.00 mm	160.00 mm	34.00 mm	3.00 mm	C0208420.0124	CHF 301.00
M 27-ISo2/6H	27.00 mm	20.00 mm	160.00 mm	36.00 mm	3.00 mm	C0208400.0127	CHF 396.50
M 30-ISo2/6H	30.00 mm	22.00 mm	180.00 mm	40.00 mm	3.50 mm	C0208400.0130	CHF 439.00
M 33-ISo2/6H	33.00 mm	25.00 mm	180.00 mm	40.00 mm	3.50 mm	C0208400.0133	CHF 579.00
M 36-ISo2/6H	36.00 mm	28.00 mm	200.00 mm	50.00 mm	4.00 mm	C0208400.0136	CHF 732.00
M 39-ISo2/6H	39.00 mm	32.00 mm	200.00 mm	50.00 mm	4.00 mm	C0208400.0139	CHF 1'076.00
M 4x0,5-ISo2/6H	4.00 mm	2.80 mm	63.00 mm	10.00 mm	0.50 mm	C0208400.0210	CHF 86.10
M 4x0,35-ISo2/6H	4.00 mm	2.80 mm	63.00 mm	10.00 mm	0.35 mm	C0208400.0209	CHF 127.50
M 5x0,5-ISo2/6H	5.00 mm	3.50 mm	70.00 mm	11.00 mm	0.50 mm	C0208400.0218	CHF 79.40
M 6x0,5-ISo2/6H	6.00 mm	4.50 mm	80.00 mm	13.00 mm	0.50 mm	C0208400.0228	CHF 94.30
M 6x0,75-ISo2/6H	6.00 mm	4.50 mm	80.00 mm	13.00 mm	0.75 mm	C0208400.0229	CHF 94.80
M 8x0,75-ISo2/6H	8.00 mm	6.00 mm	80.00 mm	14.00 mm	0.75 mm	C0208400.0250	CHF 102.00
M 8x1-ISo1/4H	8.00 mm	6.00 mm	90.00 mm	17.00 mm	1.00 mm	C0208410.0251	CHF 104.00
M 8x1-ISo2/6H	8.00 mm	6.00 mm	90.00 mm	17.00 mm	1.00 mm	C0208400.0251	CHF 94.80
M 8x1-ISo2/6H-LH	8.00 mm	6.00 mm	90.00 mm	17.00 mm	1.00 mm	C0208450.0251	CHF 122.00
M 9x1-ISo2/6H	9.00 mm	7.00 mm	90.00 mm	17.00 mm	1.00 mm	C0208400.0263	CHF 140.00
M 10x0,75-ISo2/6H	10.00 mm	7.00 mm	90.00 mm	18.00 mm	0.75 mm	C0208400.0275	CHF 135.00
M 10x1-ISo1/4H	10.00 mm	7.00 mm	90.00 mm	18.00 mm	1.00 mm	C0208410.0276	CHF 113.00
M 10x1-ISo2/6H	10.00 mm	7.00 mm	90.00 mm	18.00 mm	1.00 mm	C0208400.0276	CHF 105.00
M 10x1-ISo2/6H-LH	10.00 mm	7.00 mm	90.00 mm	18.00 mm	1.00 mm	C0208450.0276	CHF 132.00
M 10x1,25-ISo2/6H	10.00 mm	7.00 mm	100.00 mm	22.00 mm	1.25 mm	C0208400.0277	CHF 129.00
M 11x1-ISo2/6H	11.00 mm	8.00 mm	90.00 mm	18.00 mm	1.00 mm	C0208400.0288	CHF 153.00
M 12x1-ISo1/4H	12.00 mm	9.00 mm	100.00 mm	18.00 mm	1.00 mm	C0208410.0301	CHF 126.50
M 12x1-ISo2/6H	12.00 mm	9.00 mm	100.00 mm	18.00 mm	1.00 mm	C0208400.0301	CHF 122.50
M 12x1-ISo2/6H-LH	12.00 mm	9.00 mm	100.00 mm	18.00 mm	1.00 mm	C0208450.0301	CHF 163.00
M 12x1-ISo3/6G	12.00 mm	9.00 mm	100.00 mm	18.00 mm	1.00 mm	C0208420.0301	CHF 118.50
M 12x1,5-ISo1/4H	12.00 mm	9.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208410.0303	CHF 125.00
M 12x1,5-ISo2/6H	12.00 mm	9.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208400.0303	CHF 111.00
M 12x1,5-ISo2/6H-LH	12.00 mm	9.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208450.0303	CHF 172.50
M 12x1,5-ISo3/6G	12.00 mm	9.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208420.0303	CHF 112.50
M 12x1,25-ISo2/6H	12.00 mm	9.00 mm	100.00 mm	22.00 mm	1.25 mm	C0208400.0302	CHF 131.00
M 14x1-ISo2/6H	14.00 mm	11.00 mm	100.00 mm	18.00 mm	1.00 mm	C0208400.0329	CHF 153.00
M 14x1,5-ISo1/4H	14.00 mm	11.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208410.0331	CHF 162.00
M 14x1,5-ISo2/6H	14.00 mm	11.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208400.0331	CHF 146.50
M 14x1,5-ISo2/6H-LH	14.00 mm	11.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208450.0331	CHF 217.00
M 14x1,5-ISo3/6G	14.00 mm	11.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208420.0331	CHF 146.00
M 14x1,25-ISo2/6H	14.00 mm	11.00 mm	100.00 mm	22.00 mm	1.25 mm	C0208400.0330	CHF 150.00
M 15x1-ISo2/6H	15.00 mm	12.00 mm	100.00 mm	18.00 mm	1.00 mm	C0208400.0343	CHF 186.50
M 16x1-ISo2/6H	16.00 mm	12.00 mm	100.00 mm	18.00 mm	1.00 mm	C0208400.0357	CHF 168.50
M 16x1,5-ISo1/4H	16.00 mm	12.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208410.0359	CHF 176.50
M 16x1,5-ISo2/6H	16.00 mm	12.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208400.0359	CHF 171.00
M 16x1,5-ISo2/6H-LH	16.00 mm	12.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208450.0359	CHF 216.00
M 16x1,5-ISo3/6G	16.00 mm	12.00 mm	100.00 mm	22.00 mm	1.50 mm	C0208420.0359	CHF 169.00
M 18x1-ISo2/6H	18.00 mm	14.00 mm	110.00 mm	20.00 mm	1.00 mm	C0208400.0388	CHF 240.00
M 18x1,5-ISo1/4H	18.00 mm	14.00 mm	110.00 mm	25.00 mm	1.50 mm	C0208410.0390	CHF 225.00
M 18x1,5-ISo2/6H	18.00 mm	14.00 mm	110.00 mm	25.00 mm	1.50 mm	C0208400.0390	CHF 207.50
M 18x1,5-ISo2/6H-LH	18.00 mm	14.00 mm	110.00 mm	25.00 mm	1.50 mm	C0208450.0390	CHF 261.50
M 18x2-ISo2/6H	18.00 mm	14.00 mm	125.00 mm	26.00 mm	2.00 mm	C0208400.0391	CHF 222.00
M 20x1-ISo2/6H	20.00 mm	16.00 mm	125.00 mm	20.00 mm	1.00 mm	C0208400.0420	CHF 293.00
M 20x1,5-ISo1/4H	20.00 mm	16.00 mm	125.00 mm	25.00 mm	1.50 mm	C0208410.0422	CHF 278.00
M 20x1,5-ISo2/6H	20.00 mm	16.00 mm	125.00 mm	25.00 mm	1.50 mm	C0208400.0422	CHF 264.00
M 20x1,5-ISo2/6H-LH	20.00 mm	16.00 mm	125.00 mm	25.00 mm	1.50 mm	C0208450.0422	CHF 325.00
M 20x1,5-ISo3/6G	20.00 mm	16.00 mm	125.00 mm	25.00 mm	1.50 mm	C0208420.0422	CHF 260.50
M 20x2-ISo2/6H	20.00 mm	16.00 mm	140.00 mm	27.00 mm	2.00 mm	C0208400.0423	CHF 322.00
M 22x1-ISo2/6H	22.00 mm	18.00 mm	125.00 mm	20.00 mm	1.00 mm	C0208400.0436	CHF 373.00
M 22x1,5-ISo2/6H	22.00 mm	18.00 mm	125.00 mm	25.00 mm	1.50 mm	C0208400.0438	CHF 273.00
M 22x2-ISo2/6H	22.00 mm	18.00 mm	140.00 mm	27.00 mm	2.00 mm	C0208400.0439	CHF 346.00
M 24x1-ISo2/6H	24.00 mm	18.00 mm	140.00 mm	20.00 mm	1.00 mm	C0208400.0450	CHF 366.50
M 24x1,5-ISo2/6H	24.00 mm	18.00 mm	140.00 mm	27.00 mm	1.50 mm	C0208400.0452	CHF 286.50
M 24x2-ISo2/6H	24.00 mm	18.00 mm	140.00 mm	27.00 mm	2.00 mm	C0208400.0453	CHF 301.00
M 25x1,5-ISo2/6H	25.00 mm	18.00 mm	140.00 mm	28.00 mm	1.50 mm	C0208400.0458	CHF 412.50
M 26x1,5-ISo2/6H	26.00 mm	18.00 mm	140.00 mm	28.00 mm	1.50 mm	C0208400.0464	CHF 313.00
M 27x1,5-ISo2/6H	27.00 mm	20.00 mm	140.00 mm	28.00 mm	1.50 mm	C0208400.0470	CHF 419.00
M 27x2-ISo2/6H	27.00 mm	20.00 mm	140.00 mm	28.00 mm	2.00 mm	C0208400.0471	CHF 400.50
M 28x1,5-ISo2/6H	28.00 mm	20.00 mm	140.00 mm	28.00 mm	1.50 mm	C0208400.0476	CHF 394.50
M 28x2-ISo2/6H	28.00 mm	20.00 mm	140.00 mm	28.00 mm	2.00 mm	C0208400.0477	CHF 483.50
M 30x1,5-ISo2/6H	30.00 mm	22.00 mm	150.00 mm	28.00 mm	1.50 mm	C0208400.0490	CHF 398.50
M 30x2-ISo2/6H	30.00 mm	22.00 mm	150.00 mm	28.00 mm	2.00 mm	C0208400.0491	CHF 435.00
M 32x1,5-ISo2/6H	32.00 mm	22.00 mm	150.00 mm	28.00 mm	1.50 mm	C0208400.0504	CHF 475.50
M 32x2-ISo2/6H	32.00 mm	22.00 mm	150.00 mm	28.00 mm	2.00 mm	C0208400.0505	CHF 516.00
M 33x1,5-ISo2/6H	33.00 mm	25.00 mm	160.00 mm	30.00 mm	1.50 mm	C0208400.0511	CHF 553.00
M 33x2-ISo2/6H	33.00 mm	25.00 mm	160.00 mm	30.00 mm	2.00 mm	C0208400.0512	CHF 553.00
M 34x1,5-ISo2/6H	34.00 mm	28.00 mm	170.00 mm	30.00 mm	1.50 mm	C0208400.0518	CHF 702.00
M 35x1,5-ISo2/6H	35.00 mm	28.00 mm	170.00 mm	30.00 mm	1.50 mm	C0208400.0525	CHF 712.00
M 36x1,5-ISo2/6H	36.00 mm	28.00 mm	170.00 mm	30.00 mm	1.50 mm	C0208400.0532	CHF 647.00
M 36x2-ISo2/6H	36.00 mm	28.00 mm	170.00 mm	30.00 mm	2.00 mm	C0208400.0533	CHF 712.00
M 36x3-ISo2/6H	36.00 mm	28.00 mm	200.00 mm	42.00 mm	3.00 mm	C0208400.0534	CHF 748.00
M 38x1,5-ISo2/6H	38.00 mm	28.00 mm	170.00 mm	30.00 mm	1.50 mm	C0208400.0546	CHF 769.00
M 39x1,5-ISo2/6H	39.00 mm	32.00 mm	170.00 mm	30.00 mm	1.50 mm	C0208400.0553	CHF 853.00
M 39x2-ISo2/6H	39.00 mm	32.00 mm	170.00 mm	30.00 mm	2.00 mm	C0208400.0554	CHF 898.00
M 40x1,5-ISo2/6H	40.00 mm	32.00 mm	170.00 mm	30.00 mm	1.50 mm	C0208400.0560	CHF 885.00
M 40x2-ISo2/6H	40.00 mm	32.00 mm	170.00 mm	30.00 mm	2.00 mm	C0208400.0561	CHF 977.00
M 42x1,5-ISo2/6H	42.00 mm	32.00 mm	170.00 mm	30.00 mm	1.50 mm	C0208400.0574	CHF 926.00
M 42x2-ISo2/6H	42.00 mm	32.00 mm	170.00 mm	30.00 mm	2.00 mm	C0208400.0575	CHF 1'049.00
M 42x3-ISo2/6H	42.00 mm	32.00 mm	200.00 mm	45.00 mm	3.00 mm	C0208400.0576	CHF 1'150.00
M 45x1,5-ISo2/6H	45.00 mm	36.00 mm	180.00 mm	32.00 mm	1.50 mm	C0208400.0595	CHF 1'060.00
M 45x2-ISo2/6H	45.00 mm	36.00 mm	180.00 mm	32.00 mm	2.00 mm	C0208400.0596	CHF 1'258.00
M 45x3-ISo2/6H	45.00 mm	36.00 mm	200.00 mm	45.00 mm	3.00 mm	C0208400.0597	CHF 1'325.00
M 48x1,5-ISo2/6H	48.00 mm	36.00 mm	190.00 mm	32.00 mm	1.50 mm	C0208400.0616	CHF 1'245.00
M 48x2-ISo2/6H	48.00 mm	36.00 mm	190.00 mm	32.00 mm	2.00 mm	C0208400.0617	CHF 1'424.00
M 48x3-ISo2/6H	48.00 mm	36.00 mm	225.00 mm	50.00 mm	3.00 mm	C0208400.0618	CHF 1'508.00
M 50x1,5-ISo2/6H	50.00 mm	36.00 mm	190.00 mm	32.00 mm	1.50 mm	C0208400.0630	CHF 1'335.00
M 50x2-ISo2/6H	50.00 mm	36.00 mm	190.00 mm	32.00 mm	2.00 mm	C0208400.0631	CHF 1'590.00
M 52x1,5-ISo2/6H	52.00 mm	40.00 mm	190.00 mm	32.00 mm	1.50 mm	C0208400.0644	CHF 1'433.00
M 52x2-ISo2/6H	52.00 mm	40.00 mm	190.00 mm	32.00 mm	2.00 mm	C0208400.0645	CHF 1'612.00
M 52x3-ISo2/6H	52.00 mm	40.00 mm	225.00 mm	50.00 mm	3.00 mm	C0208400.0646	CHF 1'657.00
G 1/2-X ISo228	20.96 mm	16.00 mm	125.00 mm	25.00 mm	1.81 mm	C0208401.4038	CHF 261.50
G 1/4-X ISo228	13.16 mm	11.00 mm	100.00 mm	22.00 mm	1.34 mm	C0208401.4036	CHF 143.00
G 3/4-X ISo228	26.44 mm	20.00 mm	140.00 mm	28.00 mm	1.81 mm	C0208401.4040	CHF 329.50
G 3/8-X ISo228	16.66 mm	12.00 mm	100.00 mm	22.00 mm	1.34 mm	C0208401.4037	CHF 172.00

Materialeignung

P	P1	P2	P3	P4	P5	P6
P

M	M1	M2	M3
M

K	K1	K2	K3	K4
K

N	N1	N2	N3	N4
N

S	S1	S2	S3	S4	S5
S

H	H1	H2	H3
H
