ZBGF-HCUT-2xd1-IKZ-HA-TiAlN-T46 Zirkular-Bohrgewindefräser aus Vollhartmetall

Artikelnummer:

Lieferbar innert 1-2 Arbeitstagen

Lieferbar ab externem Lager innert

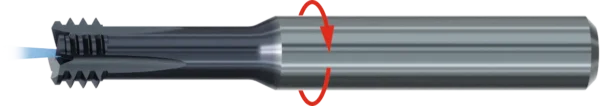

ZBGF-HCUT-2xd1-IKZ-HA-TiAlN-T46 Zirkular-Bohrgewindefräser aus Vollhartmetall

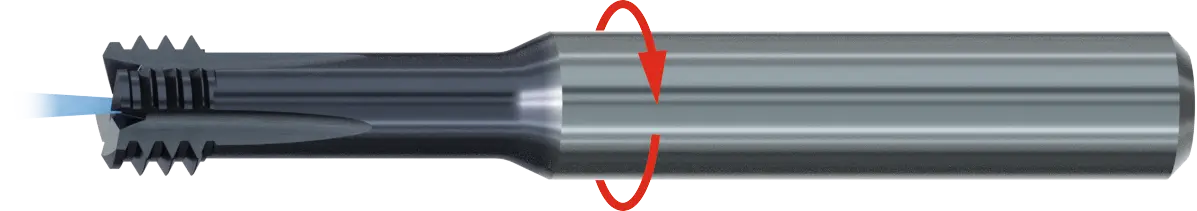

ZBGF-HCUT-2xd1-IKZ-HA-TiAlN-T46 Zirkular-Bohrgewindefräser aus Vollhartmetall – Bild 2

Abmessung

Zurücksetzen

Technische Details

Schema ZBGF-HCUT-2xd1-IKZ-HA-TiAlN-T46 Zirkular-Bohrgewindefräser aus Vollhartmetall

Werkzeugtyp Gewinde	Gewindefräser
Gewindefräsertyp	Zirkular Bohrgewindefräser
Schneidstoff	HM
Schneidenanzahl (z)	2
Schaftform	HA
Marke	Emuge
Beschichtet	Ja

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Downloads

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Abmessung	d1	d2	l1	l2	l3	Steigung	Artikelnummer	Preis
M 3-2xD	2.95 mm	6.00 mm	51.00 mm	2.00 mm	7.00 mm	0.50 mm	GF733709.0030	CHF 297.50
M 4-2xD	3.95 mm	6.00 mm	51.00 mm	2.80 mm	9.40 mm	0.70 mm	GF733709.0040	CHF 297.50
M 5-2xD	4.95 mm	6.00 mm	53.00 mm	3.20 mm	11.60 mm	0.80 mm	GF733709.0050	CHF 297.50
M 6-2xD	5.95 mm	6.00 mm	55.00 mm	4.00 mm	14.00 mm	1.00 mm	GF733709.0060	CHF 297.50
M 8-2xD	7.95 mm	8.00 mm	60.00 mm	5.00 mm	18.50 mm	1.25 mm	GF733709.0080	CHF 326.50
M 10-2xD	9.95 mm	8.00 mm	64.00 mm	6.00 mm	23.00 mm	1.50 mm	GF733709.0100	CHF 326.50
M 12-2xD	11.95 mm	10.00 mm	74.00 mm	7.00 mm	27.50 mm	1.75 mm	GF733709.0112	CHF 354.50
M 14-2xD	13.95 mm	12.00 mm	83.00 mm	8.00 mm	32.00 mm	2.00 mm	GF733709.0114	CHF 421.50
M 16-2xD	15.95 mm	14.00 mm	88.00 mm	8.00 mm	36.00 mm	2.00 mm	GF733709.0116	CHF 476.50
1/4-28 UNF-2xD	6.30 mm	6.00 mm	55.00 mm	3.63 mm	14.51 mm	0.91 mm	GF733709.5043	CHF 312.50
5/16-24 UNF-2xD	7.90 mm	8.00 mm	60.00 mm	4.23 mm	17.99 mm	1.06 mm	GF733709.5044	CHF 342.00
3/8-24 UNF-2xD	9.50 mm	8.00 mm	62.00 mm	4.23 mm	21.17 mm	1.06 mm	GF733709.5045	CHF 342.00
7/16-20 UNF-2xD	11.05 mm	10.00 mm	70.00 mm	5.08 mm	24.76 mm	1.27 mm	GF733709.5046	CHF 372.00
1/2-20 UNF-2xD	12.65 mm	12.00 mm	80.00 mm	5.08 mm	27.94 mm	1.27 mm	GF733709.5047	CHF 434.50
9/16-18 UNF-2xD	14.20 mm	12.00 mm	80.00 mm	5.64 mm	31.40 mm	1.41 mm	GF733709.5048	CHF 434.50
5/8-18 UNF-2xD	15.80 mm	14.00 mm	85.00 mm	5.64 mm	34.57 mm	1.41 mm	GF733709.5049	CHF 500.00
3/4-16 UNF - 2xD	19.00 mm	16.00 mm	95.00 mm	6.35 mm	41.28 mm	1.59 mm	GF733709.5050	CHF 531.00
Nr.10-32 UNF -2xD	4.80 mm	6.00 mm	52.00 mm	3.18 mm	11.24 mm	0.79 mm	GF733709.5041	CHF 312.50
1/4-20 UNC-2xD	6.30 mm	6.00 mm	56.00 mm	5.08 mm	15.24 mm	1.27 mm	GF733709.5009	CHF 312.50
3/4 - 10 UNC - 2xD	19.00 mm	16.00 mm	98.00 mm	10.16 mm	43.18 mm	2.54 mm	GF733709.5016	CHF 531.00
5/16-18 UNC-2xD	7.90 mm	6.00 mm	58.00 mm	5.64 mm	18.70 mm	1.41 mm	GF733709.5010	CHF 312.50
3/8-16 UNC-2xD	9.50 mm	8.00 mm	64.00 mm	6.35 mm	22.23 mm	1.59 mm	GF733709.5011	CHF 342.00
7/16-14 UNC-2xD	11.05 mm	10.00 mm	72.00 mm	7.26 mm	25.85 mm	1.81 mm	GF733709.5012	CHF 372.00
1/2-13 UNC-2xD	12.65 mm	10.00 mm	74.00 mm	7.82 mm	29.31 mm	1.95 mm	GF733709.5013	CHF 372.00
5/8-11 UNC-2xD	15.80 mm	14.00 mm	88.00 mm	9.24 mm	36.37 mm	2.31 mm	GF733709.5015	CHF 500.00
Nr.10-24 UNC - 2xD	4.80 mm	6.00 mm	55.00 mm	4.11 mm	11.77 mm	1.06 mm	GF733709.5007	CHF 312.50

Materialeignung

P	P1	P2	P3	P4	P5	P6
P

M	M1	M2	M3
M

K	K1	K2	K3	K4
K

N	N1	N2	N3	N4
N

S	S1	S2	S3	S4	S5
S

H	H1	H2	H3
H
