ZBGF-S-Cut-2xd1-L10-HA-AlCr-89 Zirkular-Bohrgewindefräser aus Vollhartmetall

Artikelnummer:

Lieferbar innert 1-2 Arbeitstagen

Lieferbar ab externem Lager innert

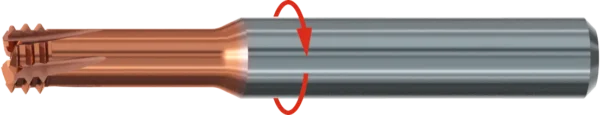

ZBGF-S-Cut-2xd1-L10-HA-AlCr-89 Zirkular-Bohrgewindefräser aus Vollhartmetall

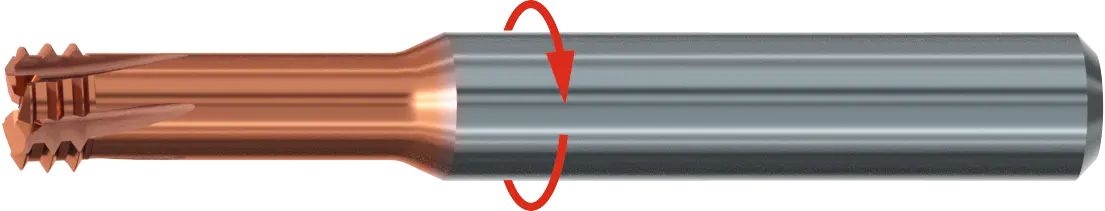

ZBGF-S-Cut-2xd1-L10-HA-AlCr-89 Zirkular-Bohrgewindefräser aus Vollhartmetall – Bild 2

Abmessung

Zurücksetzen

Technische Details

Schema ZBGF-S-Cut-2xd1-L10-HA-AlCr-89 Zirkular-Bohrgewindefräser aus Vollhartmetall

Werkzeugtyp Gewinde	Gewindefräser
Gewindefräsertyp	Zirkular Bohrgewindefräser
Schneidstoff	HM
Schaftform	HA
Marke	Emuge
Beschichtet	Ja

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Downloads

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Abmessung	d1	d2	l1	l2	l3	Steigung	Artikelnummer	Preis
M 3-2xD	2.95 mm	3.00 mm	39.00 mm	1.50 mm	6.75 mm	0.50 mm	GF7B682B.0030	CHF 325.00
M 4-2xD	3.95 mm	4.00 mm	42.00 mm	2.10 mm	9.05 mm	0.70 mm	GF7B682B.0040	CHF 325.00
M 5-2xD	4.95 mm	6.00 mm	52.00 mm	2.40 mm	11.20 mm	0.80 mm	GF7B682B.0050	CHF 312.50
M 6-2xD	5.95 mm	6.00 mm	55.00 mm	3.00 mm	13.50 mm	1.00 mm	GF7B682B.0060	CHF 312.50
M 10-2xD	9.95 mm	10.00 mm	70.00 mm	4.50 mm	22.25 mm	1.50 mm	GF7B682B.0100	CHF 390.50
M 12-2xD	11.95 mm	10.00 mm	74.00 mm	5.25 mm	26.63 mm	1.75 mm	GF7B682B.0112	CHF 390.50
M 14-2xD	13.95 mm	12.00 mm	80.00 mm	6.00 mm	31.00 mm	2.00 mm	GF7B682B.0114	CHF 455.00
M 16-2xD	15.95 mm	14.00 mm	85.00 mm	6.00 mm	35.00 mm	2.00 mm	GF7B682B.0116	CHF 535.00
M 20 - 2xD	19.95 mm	18.00 mm	100.00 mm	7.50 mm	43.75 mm	2.50 mm	GF7B682B.0120	CHF 602.00
M 24 - 2xD	23.95 mm	20.00 mm	110.00 mm	7.50 mm	52.50 mm	3.00 mm	GF7B682B.0124	CHF 615.00
MJ 20 - 2xD	19.95 mm	18.00 mm	100.00 mm	7.50 mm	43.75 mm	2.50 mm	GF7B682B.1954	CHF 662.00
MJ 24 - 2xD	23.95 mm	20.00 mm	110.00 mm	9.00 mm	52.50 mm	3.00 mm	GF7B682B.9222	CHF 676.00
M 8x1-2xD	7.95 mm	8.00 mm	60.00 mm	3.00 mm	17.50 mm	1.00 mm	GF7B682B.0251	CHF 360.00
M 10x1-2xD	9.95 mm	10.00 mm	70.00 mm	3.00 mm	21.50 mm	1.00 mm	GF7B682B.0276	CHF 390.50
M 10x1,25-2xD	9.95 mm	10.00 mm	70.00 mm	3.75 mm	21.88 mm	1.25 mm	GF7B682B.0277	CHF 390.50
M 12x1-2xD	11.95 mm	12.00 mm	80.00 mm	3.00 mm	25.50 mm	1.00 mm	GF7B682B.0301	CHF 455.00
M 12x1,5-2xD	11.95 mm	12.00 mm	80.00 mm	4.50 mm	26.25 mm	1.50 mm	GF7B682B.0303	CHF 455.00
M 12x1,25-2xD	11.95 mm	12.00 mm	80.00 mm	3.75 mm	25.88 mm	1.25 mm	GF7B682B.0302	CHF 455.00
M 14x1,5-2xD	13.95 mm	12.00 mm	80.00 mm	4.50 mm	30.25 mm	1.50 mm	GF7B682B.0331	CHF 455.00
M 16x1,5-2xD	15.95 mm	14.00 mm	84.00 mm	4.50 mm	34.25 mm	1.50 mm	GF7B682B.0359	CHF 535.00
MJ 3x0,5-2xD	2.95 mm	3.00 mm	39.00 mm	1.50 mm	6.75 mm	0.50 mm	GF7B682B.1229	CHF 356.50
MJ 4x0,7-2xD	3.95 mm	4.00 mm	42.00 mm	2.10 mm	9.05 mm	0.70 mm	GF7B682B.1231	CHF 356.50
MJ 5x0,8-2xD	4.95 mm	6.00 mm	52.00 mm	2.40 mm	11.20 mm	0.80 mm	GF7B682B.1232	CHF 343.00
MJ 6x1,0-2xD	5.95 mm	6.00 mm	55.00 mm	3.00 mm	13.50 mm	1.00 mm	GF7B682B.1233	CHF 343.00
MJ 8x1-2xD	7.95 mm	8.00 mm	60.00 mm	3.00 mm	17.50 mm	1.00 mm	GF7B682B.1235	CHF 396.00
MJ 8x1,25-2xD	7.95 mm	8.00 mm	60.00 mm	3.75 mm	17.88 mm	1.25 mm	GF7B682B.2026	CHF 396.00
MJ 10x1-2xD	9.95 mm	10.00 mm	70.00 mm	3.00 mm	21.50 mm	1.00 mm	GF7B682B.1764	CHF 429.00
MJ 10x1,5-2xD	9.95 mm	10.00 mm	70.00 mm	4.50 mm	22.25 mm	1.50 mm	GF7B682B.2308	CHF 429.00
MJ 10x1,25 - 2xD	9.95 mm	10.00 mm	70.00 mm	3.75 mm	21.88 mm	1.25 mm	GF7B682B.1236	CHF 429.00
MJ 12x1-2xD	11.95 mm	12.00 mm	80.00 mm	3.00 mm	25.50 mm	1.00 mm	GF7B682B.2310	CHF 500.00
MJ 12x1,5-2xD	11.95 mm	12.00 mm	80.00 mm	4.50 mm	26.25 mm	1.50 mm	GF7B682B.2056	CHF 500.00
MJ 12x1,25-2xD	11.95 mm	12.00 mm	80.00 mm	3.75 mm	25.88 mm	1.25 mm	GF7B682B.1237	CHF 500.00
MJ 12x1,75-2xD	11.95 mm	10.00 mm	74.00 mm	5.25 mm	26.63 mm	1.75 mm	GF7B682B.1912	CHF 429.00
MJ 14x1,5 - 2xD	13.95 mm	12.00 mm	80.00 mm	4.50 mm	30.25 mm	1.50 mm	GF7B682B.1238	CHF 500.00
MJ 14x2,0-2xD	13.95 mm	12.00 mm	80.00 mm	6.00 mm	31.00 mm	2.00 mm	GF7B682B.2505	CHF 500.00
MJ 16x1,5 - 2xD	15.95 mm	14.00 mm	84.00 mm	4.50 mm	34.25 mm	1.50 mm	GF7B682B.1239	CHF 589.00
MJ 16x2,0-2xD	15.95 mm	14.00 mm	85.00 mm	6.00 mm	35.00 mm	2.00 mm	GF7B682B.1955	CHF 589.00
1/4-28 UNF-2xD	6.30 mm	6.00 mm	55.00 mm	2.72 mm	14.06 mm	0.91 mm	GF7B682B.5043	CHF 328.50
5/16-24 UNF-2xD	7.90 mm	8.00 mm	58.00 mm	3.17 mm	17.46 mm	1.06 mm	GF7B682B.5044	CHF 377.00
3/8-24 UNF-2xD	9.50 mm	8.00 mm	62.00 mm	3.17 mm	20.64 mm	1.06 mm	GF7B682B.5045	CHF 377.00
7/16-20 UNF-2xD	11.05 mm	10.00 mm	70.00 mm	3.81 mm	24.13 mm	1.27 mm	GF7B682B.5046	CHF 410.00
1/2-20 UNF-2xD	12.65 mm	12.00 mm	80.00 mm	3.81 mm	27.31 mm	1.27 mm	GF7B682B.5047	CHF 479.00
9/16-18 UNF-2xD	14.20 mm	14.00 mm	80.00 mm	4.23 mm	30.69 mm	1.41 mm	GF7B682B.5048	CHF 479.00
5/8-18 UNF-2xD	15.80 mm	14.00 mm	83.00 mm	4.23 mm	33.87 mm	1.41 mm	GF7B682B.5049	CHF 562.00
3/4-16 UNF - 2xD	19.00 mm	16.00 mm	93.00 mm	4.76 mm	40.48 mm	1.59 mm	GF7B682B.5050	CHF 597.00
Nr.6-40 UNF - 2xD	3.45 mm	3.00 mm	39.00 mm	1.90 mm	7.96 mm	0.64 mm	GF7B682B.5039	CHF 340.50
Nr.8-36 UNF - 2xD	4.10 mm	4.00 mm	40.00 mm	2.12 mm	9.39 mm	0.71 mm	GF7B682B.5040	CHF 340.50
Nr.10-32 UNF -2xD	4.80 mm	4.00 mm	42.00 mm	2.38 mm	10.84 mm	0.79 mm	GF7B682B.5041	CHF 340.50
1/4-20 UNC-2xD	6.30 mm	6.00 mm	55.00 mm	3.81 mm	14.61 mm	1.27 mm	GF7B682B.5009	CHF 328.50
3/4 - 10 UNC - 2xD	19.00 mm	16.00 mm	96.00 mm	7.62 mm	41.91 mm	2.54 mm	GF7B682B.5016	CHF 597.00
5/16-18 UNC-2xD	7.90 mm	8.00 mm	62.00 mm	4.23 mm	17.99 mm	1.41 mm	GF7B682B.5010	CHF 377.00
3/8-16 UNC-2xD	9.50 mm	8.00 mm	62.00 mm	4.76 mm	21.43 mm	1.59 mm	GF7B682B.5011	CHF 377.00
7/16-14 UNC-2xD	11.05 mm	10.00 mm	70.00 mm	5.44 mm	24.95 mm	1.81 mm	GF7B682B.5012	CHF 410.00
1/2-13 UNC-2xD	12.65 mm	12.00 mm	80.00 mm	5.86 mm	28.33 mm	1.95 mm	GF7B682B.5013	CHF 479.00
9/16-12 UNC-2xD	14.20 mm	12.00 mm	82.00 mm	6.35 mm	31.75 mm	2.12 mm	GF7B682B.5014	CHF 479.00
5/8-11 UNC-2xD	15.80 mm	14.00 mm	87.00 mm	6.93 mm	35.21 mm	2.31 mm	GF7B682B.5015	CHF 562.00
Nr.6-32 UNC - 2xD	3.45 mm	3.00 mm	39.00 mm	2.38 mm	8.20 mm	0.79 mm	GF7B682B.5005	CHF 340.50
Nr.8-32 UNC - 2xD	4.05 mm	4.00 mm	40.00 mm	2.38 mm	9.52 mm	0.79 mm	GF7B682B.5006	CHF 340.50
Nr.10-24 UNC - 2xD	4.80 mm	4.00 mm	42.00 mm	3.17 mm	11.24 mm	1.06 mm	GF7B682B.5007	CHF 340.50
1/4(.25)-20 UNJC-2xD	6.30 mm	6.00 mm	55.00 mm	3.81 mm	14.61 mm	1.27 mm	GF7B682B.5485	CHF 361.50
5/16(.3125)-18UNJC-2xD	7.90 mm	8.00 mm	62.00 mm	4.23 mm	17.99 mm	1.41 mm	GF7B682B.5486	CHF 415.00
3/8(.375)-16 UNJC-2xD	9.50 mm	8.00 mm	62.00 mm	4.76 mm	21.43 mm	1.59 mm	GF7B682B.5487	CHF 415.00
7/16(.4375)-14UNJC-2xD	11.05 mm	10.00 mm	70.00 mm	5.44 mm	24.95 mm	1.81 mm	GF7B682B.5488	CHF 451.00
1/2(.50)-13 UNJC-2xD	12.65 mm	12.00 mm	80.00 mm	5.86 mm	28.33 mm	1.95 mm	GF7B682B.5489	CHF 527.00
9/16(.5625)-12 UNJC - 2xD	14.20 mm	12.00 mm	82.00 mm	6.35 mm	31.75 mm	2.12 mm	GF7B682B.5490	CHF 527.00
5/8(.625)-11 UNJC - 2xD	15.80 mm	14.00 mm	87.00 mm	6.93 mm	35.21 mm	2.31 mm	GF7B682B.5491	CHF 618.00
3/4(.75)-10 UNJC - 2xD	19.00 mm	16.00 mm	96.00 mm	7.62 mm	41.91 mm	2.54 mm	GF7B682B.5492	CHF 657.00
Nr.6(.138)-32 UNJC - 2xD	3.45 mm	3.00 mm	39.00 mm	2.38 mm	8.20 mm	0.79 mm	GF7B682B.5481	CHF 374.00
Nr.8(.164)-32-UNJC - 2xD	4.05 mm	4.00 mm	40.00 mm	2.38 mm	9.52 mm	0.79 mm	GF7B682B.5482	CHF 374.00
Nr.10(.19)-24 UNJC - 2xD	4.80 mm	4.00 mm	42.00 mm	3.17 mm	11.24 mm	1.06 mm	GF7B682B.5483	CHF 374.00
1/4(.25)-28 UNJF-2xD	6.30 mm	6.00 mm	55.00 mm	2.72 mm	14.06 mm	0.91 mm	GF7B682B.5511	CHF 361.50
5/16(.3125)-24UNJF-2xD	7.90 mm	8.00 mm	58.00 mm	3.17 mm	17.46 mm	1.06 mm	GF7B682B.5512	CHF 415.00
3/8(.375)-24 UNJF-2xD	9.50 mm	8.00 mm	62.00 mm	3.17 mm	20.64 mm	1.06 mm	GF7B682B.5513	CHF 415.00
7/16(.4375)-20UNJF-2xD	11.05 mm	10.00 mm	70.00 mm	3.81 mm	24.13 mm	1.27 mm	GF7B682B.5514	CHF 451.00
1/2(.500)-20 UNJF-2xD	12.65 mm	12.00 mm	80.00 mm	3.81 mm	27.31 mm	1.27 mm	GF7B682B.5515	CHF 527.00
9/16(.5625)-18 UNJF - 2xD	14.20 mm	12.00 mm	80.00 mm	4.23 mm	30.69 mm	1.41 mm	GF7B682B.5516	CHF 527.00
5/8(.625)-18 UNJF - 2xD	15.80 mm	14.00 mm	83.00 mm	4.23 mm	33.87 mm	1.41 mm	GF7B682B.5517	CHF 618.00
3/4(.75)-16 UNJF - 2xD	19.00 mm	16.00 mm	93.00 mm	4.76 mm	40.48 mm	1.59 mm	GF7B682B.5518	CHF 657.00
Nr.6(.138)-40 UNJF - 2xD	3.45 mm	3.00 mm	39.00 mm	1.90 mm	7.96 mm	0.64 mm	GF7B682B.5507	CHF 374.00
Nr.8(.164)-36 UNJF - 2xD	4.10 mm	4.00 mm	40.00 mm	2.12 mm	9.39 mm	0.71 mm	GF7B682B.5508	CHF 374.00
Nr.10(.19)-32 UNJF - 2xD	4.80 mm	4.00 mm	42.00 mm	2.38 mm	10.84 mm	0.79 mm	GF7B682B.5509	CHF 374.00

Materialeignung

P	P1	P2	P3	P4	P5	P6
P

M	M1	M2	M3
M

K	K1	K2	K3	K4
K

N	N1	N2	N3	N4
N

S	S1	S2	S3	S4	S5
S

H	H1	H2	H3
H
