ZGF-S-CUT-2xD-IKZ-HA-LH-Rot-TiAlN-T46 Zirkular-Gewindefräser aus Vollhartmetall

Artikelnummer:

Lieferbar innert 1-2 Arbeitstagen

Lieferbar ab externem Lager innert

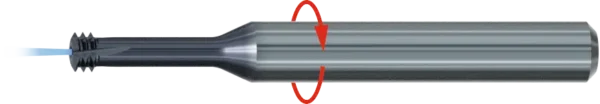

ZGF-S-CUT-2xD-IKZ-HA-LH-Rot-TiAlN-T46 Zirkular-Gewindefräser aus Vollhartmetall

ZGF-S-CUT-2xD-IKZ-HA-LH-Rot-TiAlN-T46 Zirkular-Gewindefräser aus Vollhartmetall – Bild 2

Abmessung

Zurücksetzen

Produktbeschreibung

Bearbeitung von Innengewinde.

Produktmerkmale und Vorteile:

Für exotische Werkstoffe, wie Inconel und Titan.
Ab Gewindeabmessung M3.
Vorgebohrtes Kernloch notwendig.
Linksdrehendes Werkzeug.
Steigungsgebundenes Werkzeug mit korrigiertem Gewindeprofil.

Internationaler Werkstoffvergleich

Zur Herstellerseite

Technische Details

Schema ZGF-S-CUT-2xD-IKZ-HA-LH-Rot-TiAlN-T46 Zirkular-Gewindefräser aus Vollhartmetall

Werkzeugtyp Gewinde	Gewindefräser
Gewindefräsertyp	Zirkular Gewindefräser
Schneidstoff	HM
Schaftform	HA
Marke	Emuge
max. Gewindeauslauf	4.00 mm
Beschichtet	Ja

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Downloads

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Abmessung	d1	d2	l1	l2	l3	Steigung	Artikelnummer	Preis
M 2-2xD	1.98 mm	3.00 mm	39.00 mm	1.20 mm	4.60 mm	0.40 mm	GF26A729.0020	CHF 281.85
M 2,5-2xD	2.45 mm	3.00 mm	39.00 mm	1.35 mm	5.68 mm	0.45 mm	GF26A729.0025	CHF 281.85
M 3-2xD	2.95 mm	3.00 mm	39.00 mm	1.50 mm	6.75 mm	0.50 mm	GF26A729.0030	CHF 294.85
M 4-2xD	3.95 mm	4.00 mm	42.00 mm	2.10 mm	9.05 mm	0.70 mm	GF26A729.0040	CHF 342.80
M 5-2xD	4.95 mm	6.00 mm	52.00 mm	2.40 mm	11.20 mm	0.80 mm	GF26A729.0050	CHF 383.00
M 6-2xD	5.95 mm	6.00 mm	55.00 mm	3.00 mm	13.50 mm	1.00 mm	GF26A729.0060	CHF 383.00
M 8-2xD	7.95 mm	8.00 mm	60.00 mm	3.75 mm	17.88 mm	1.25 mm	GF26A729.0080	CHF 490.25
M 10-2xD	9.95 mm	10.00 mm	70.00 mm	4.50 mm	22.25 mm	1.50 mm	GF26A729.0100	CHF 606.85
M 12-2xD	11.90 mm	10.00 mm	74.00 mm	5.25 mm	26.63 mm	1.75 mm	GF26A729.0112	CHF 606.85
M 14-2xD	13.95 mm	12.00 mm	80.00 mm	6.00 mm	31.00 mm	2.00 mm	GF26A729.0114	CHF 685.10
M 16-2xD	1.58 mm	3.00 mm	39.00 mm	1.05 mm	3.73 mm	0.35 mm	GF26A729.0016	CHF 281.85
M 16-2xD	15.90 mm	14.00 mm	85.00 mm	6.00 mm	35.00 mm	2.00 mm	GF26A729.0116	CHF 811.00
M 20 - 2xD	19.90 mm	18.00 mm	102.00 mm	7.50 mm	43.75 mm	2.50 mm	GF26A729.0120	CHF 910.90
M 24 - 2xD	23.90 mm	20.00 mm	110.00 mm	9.00 mm	52.50 mm	3.00 mm	GF26A729.0124	CHF 931.25
1/4-28 UNF-2xD	6.30 mm	6.00 mm	55.00 mm	2.72 mm	14.06 mm	0.91 mm	GF26A729.5043	CHF 383.00
5/16-24 UNF-2xD	7.90 mm	8.00 mm	58.00 mm	3.17 mm	17.46 mm	1.06 mm	GF26A729.5044	CHF 490.25
3/8-24 UNF-2xD	9.50 mm	10.00 mm	67.00 mm	3.17 mm	20.64 mm	1.06 mm	GF26A729.5045	CHF 600.75
7/16-20 UNF-2xD	11.00 mm	10.00 mm	74.00 mm	3.81 mm	24.13 mm	1.27 mm	GF26A729.5046	CHF 606.85
1/2-20 UNF-2xD	12.65 mm	12.00 mm	78.00 mm	3.81 mm	27.31 mm	1.27 mm	GF26A729.5047	CHF 683.95
9/16-18 UNF-2xD	14.20 mm	14.00 mm	80.00 mm	4.23 mm	30.69 mm	1.41 mm	GF26A729.5048	CHF 809.75
5/8-18 UNF-2xD	15.80 mm	14.00 mm	85.00 mm	4.23 mm	33.87 mm	1.41 mm	GF26A729.5049	CHF 809.75
3/4-16 UNF - 2xD	19.00 mm	18.00 mm	95.00 mm	4.76 mm	40.48 mm	1.59 mm	GF26A729.5050	CHF 910.90
Nr.2-64 UNF-2xD.	2.15 mm	3.00 mm	39.00 mm	1.59 mm	4.96 mm	0.40 mm	GF26A729.5035	CHF 281.85
Nr.4-48 UNF-2xD	2.80 mm	3.00 mm	39.00 mm	2.12 mm	6.48 mm	0.53 mm	GF26A729.5037	CHF 281.85
Nr.6-40 UNF - 2xD	3.45 mm	3.00 mm	39.00 mm	2.54 mm	7.96 mm	0.64 mm	GF26A729.5039	CHF 281.85
Nr.8-36 UNF - 2xD	4.10 mm	4.00 mm	42.00 mm	2.12 mm	9.39 mm	0.71 mm	GF26A729.5040	CHF 361.35
Nr.10-32 UNF -2xD	4.75 mm	4.00 mm	42.00 mm	2.38 mm	10.84 mm	0.79 mm	GF26A729.5041	CHF 342.80
1/4-20 UNC-2xD	6.30 mm	6.00 mm	55.00 mm	3.81 mm	14.61 mm	1.27 mm	GF26A729.5009	CHF 383.00
1/2-13 UNC-2xD-LH-Rot	12.65 mm	12.00 mm	80.00 mm	5.86 mm	28.33 mm	1.95 mm	GF26A729.5013	CHF 683.95
1/56 UN Nr.2-56 UNC-2xD	2.10 mm	3.00 mm	39.00 mm	1.36 mm	5.05 mm	0.45 mm	GF26A729.5001	CHF 294.85
1/40 UN ab #4-40 UNC-2xD	2.80 mm	3.00 mm	39.00 mm	1.90 mm	6.64 mm	0.64 mm	GF26A729.5003	CHF 294.85
3/4 - 10 UNC - 2xD	19.00 mm	16.00 mm	97.00 mm	10.16 mm	41.91 mm	2.54 mm	GF26A729.5016	CHF 890.50
5/16-18 UNC-2xD	7.90 mm	8.00 mm	58.00 mm	4.23 mm	17.99 mm	1.41 mm	GF26A729.5010	CHF 490.25
3/8-16 UNC-2xD	9.45 mm	8.00 mm	62.00 mm	4.76 mm	21.43 mm	1.59 mm	GF26A729.5011	CHF 490.25
7/16-14 UNC-2xD	11.00 mm	10.00 mm	70.00 mm	5.44 mm	24.95 mm	1.81 mm	GF26A729.5012	CHF 600.75
9/16-12 UNC-2xD	14.20 mm	12.00 mm	83.00 mm	8.47 mm	31.75 mm	2.12 mm	GF26A729.5014	CHF 683.95
5/8-11 UNC-2xD	15.80 mm	14.00 mm	88.00 mm	9.24 mm	35.21 mm	2.31 mm	GF26A729.5015	CHF 809.75
Nr.6-32 UNC - 2xD	3.45 mm	3.00 mm	39.00 mm	2.38 mm	8.20 mm	0.79 mm	GF26A729.5005	CHF 294.85
Nr.8-32 UNC - 2xD	4.17 mm	4.00 mm	42.00 mm	2.38 mm	9.52 mm	0.79 mm	GF26A729.5006	CHF 361.35
Nr.10-24 UNC - 2xD	4.75 mm	4.00 mm	42.00 mm	3.17 mm	11.24 mm	1.06 mm	GF26A729.5007	CHF 342.80
