NC-Reibahle aus Vollhartmetall, Standardausführung

Artikelnummer:

Lieferbar innert 1-2 Arbeitstagen

Lieferbar ab externem Lager innert

Durchmesser (d1)

Gesamtlänge (l1)

Toleranz Werkstück

Beschichtet

Zurücksetzen

Zum Katalog

Technische Details

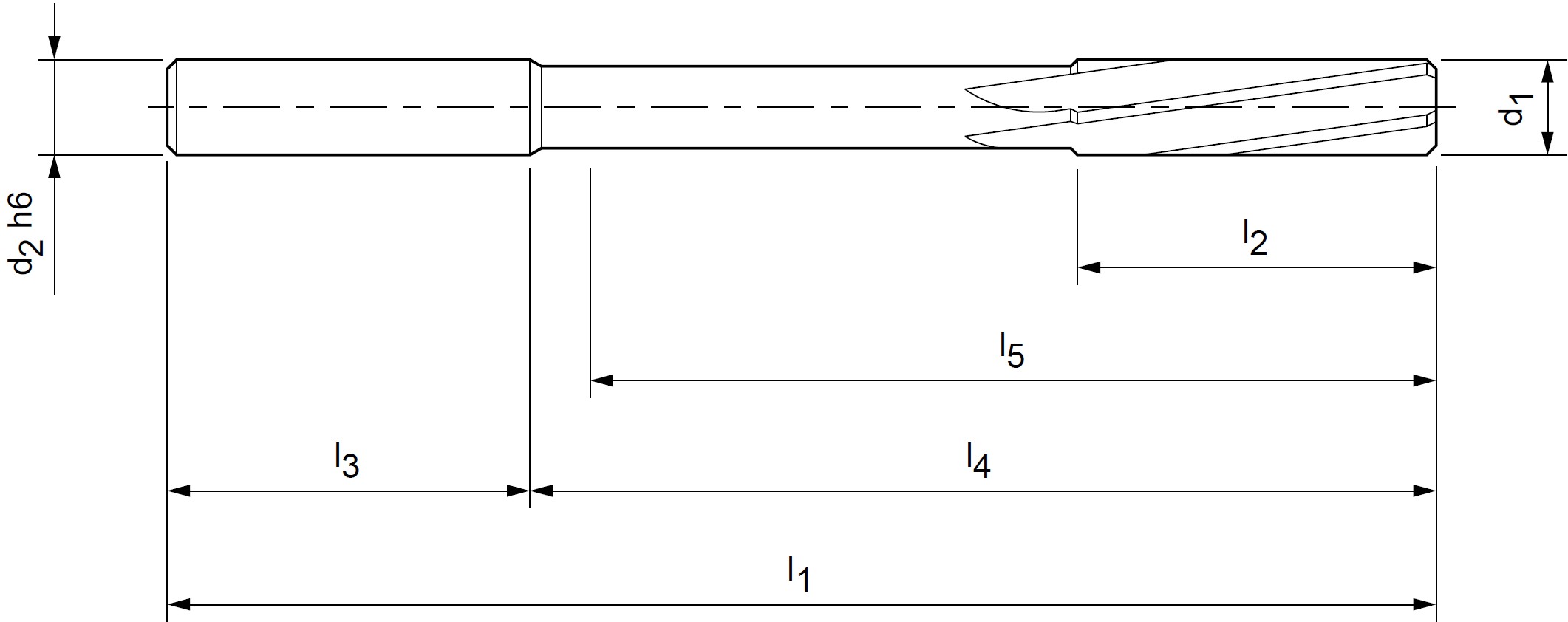

Schema NC-Reibahle aus Vollhartmetall, Standardausführung

Werkzeugtyp Reiben	Maschinenreibahle
Schneidstoff	HM
Marke	Beck
Beschichtet	Nein

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

Downloads

Variante über untenstehende Tabelle auswählen, um weitere Infos anzuzeigen.

d1	l1	Toleranz Werkstück	d2	l2	l3	Artikelnummer	Preis
0.98 mm	50.00 mm	+0.004	3.00 mm	6.00 mm	17.50 mm	BW040211.00980	CHF 48.95
0.99 mm	50.00 mm	+0.004	3.00 mm	6.00 mm	17.50 mm	BW040211.00990	CHF 48.95
1.00 mm	50.00 mm	H7	3.00 mm	6.00 mm	17.50 mm	BW040211.0100H7	CHF 42.75
1.00 mm	50.00 mm	H7	3.00 mm	6.00 mm	17.50 mm	BW043211.0100H7	CHF 63.10
1.01 mm	50.00 mm	+0.004	3.00 mm	6.00 mm	17.50 mm	BW040211.01010	CHF 48.95
1.02 mm	50.00 mm	+0.004	3.00 mm	6.00 mm	17.50 mm	BW040211.01020	CHF 48.95
1.03 mm	50.00 mm	+0.004	3.00 mm	6.00 mm	17.50 mm	BW040211.01030	CHF 48.95
1.10 mm	50.00 mm	H7	3.00 mm	9.00 mm	17.50 mm	BW040211.0110H7	CHF 54.70
1.20 mm	50.00 mm	H7	3.00 mm	9.00 mm	17.50 mm	BW040211.0120H7	CHF 54.70
1.48 mm	50.00 mm	+0.004	3.00 mm	9.00 mm	18.00 mm	BW040211.01480	CHF 49.80
1.49 mm	50.00 mm	+0.004	3.00 mm	9.00 mm	18.00 mm	BW040211.01490	CHF 49.80
1.50 mm	50.00 mm	H7	3.00 mm	9.00 mm	18.00 mm	BW040211.0150H7	CHF 42.75
1.51 mm	50.00 mm	+0.004	3.00 mm	10.00 mm	18.00 mm	BW040211.01510	CHF 49.80
1.52 mm	50.00 mm	+0.004	3.00 mm	10.00 mm	18.00 mm	BW040211.01520	CHF 49.80
1.53 mm	50.00 mm	+0.004	3.00 mm	10.00 mm	18.00 mm	BW040211.01530	CHF 49.80
1.60 mm	50.00 mm	H7	3.00 mm	10.00 mm	18.00 mm	BW040211.0160H7	CHF 54.70
1.80 mm	50.00 mm	H7	3.00 mm	11.00 mm	18.50 mm	BW040211.0180H7	CHF 54.70
1.98 mm	50.00 mm	+0.004	3.00 mm	12.00 mm	18.50 mm	BW040211.01980	CHF 49.80
1.99 mm	50.00 mm	+0.004	3.00 mm	12.00 mm	18.50 mm	BW040211.01990	CHF 49.80
2.00 mm	50.00 mm	H7	3.00 mm	12.00 mm	18.50 mm	BW040211.0200H7	CHF 42.75
2.00 mm	50.00 mm	H7	3.00 mm	12.00 mm	18.50 mm	BW043211.0200H7	CHF 51.25
2.01 mm	50.00 mm	+0.004	3.00 mm	12.00 mm	18.50 mm	BW040211.02010	CHF 49.80
2.02 mm	50.00 mm	+0.004	3.00 mm	12.00 mm	18.50 mm	BW040211.02020	CHF 49.80
2.03 mm	50.00 mm	+0.004	3.00 mm	12.00 mm	18.50 mm	BW040211.02030	CHF 49.80
2.20 mm	50.00 mm	H7	3.00 mm	12.00 mm	18.50 mm	BW040211.0220H7	CHF 54.70
2.48 mm	60.00 mm	+0.004	3.00 mm	16.00 mm	29.00 mm	BW040211.02480	CHF 49.80
2.49 mm	60.00 mm	+0.004	3.00 mm	16.00 mm	29.00 mm	BW040211.02490	CHF 49.80
2.50 mm	60.00 mm	H7	3.00 mm	16.00 mm	29.00 mm	BW040211.0250H7	CHF 42.75
2.51 mm	60.00 mm	+0.004	3.00 mm	16.00 mm	29.00 mm	BW040211.02510	CHF 49.80
2.52 mm	60.00 mm	+0.004	3.00 mm	16.00 mm	29.00 mm	BW040211.02520	CHF 49.80
2.53 mm	60.00 mm	+0.004	3.00 mm	16.00 mm	29.00 mm	BW040211.02530	CHF 49.80
2.97 mm	65.00 mm	+0.004	4.00 mm	17.00 mm	33.00 mm	BW040211.02970	CHF 51.30
2.98 mm	65.00 mm	+0.004	4.00 mm	17.00 mm	33.00 mm	BW040211.02980	CHF 51.30
2.99 mm	65.00 mm	+0.004	4.00 mm	17.00 mm	33.00 mm	BW040211.02990	CHF 51.30
3.00 mm	65.00 mm	H7	4.00 mm	17.00 mm	33.00 mm	BW040211.0300H7	CHF 45.05
3.00 mm	65.00 mm	H7	4.00 mm	17.00 mm	33.00 mm	BW043211.0300H7	CHF 54.05
3.01 mm	65.00 mm	+0.004	4.00 mm	17.00 mm	33.00 mm	BW040211.03010	CHF 51.30
3.02 mm	65.00 mm	+0.004	4.00 mm	17.00 mm	33.00 mm	BW040211.03020	CHF 51.30
3.03 mm	65.00 mm	+0.004	4.00 mm	17.00 mm	33.00 mm	BW040211.03030	CHF 51.30
3.20 mm	65.00 mm	H7	4.00 mm	16.00 mm	33.00 mm	BW040211.0320H7	CHF 45.05
3.50 mm	75.00 mm	H7	4.00 mm	18.00 mm	43.00 mm	BW040211.0350H7	CHF 45.05
3.97 mm	75.00 mm	+0.004	4.00 mm	19.00 mm	43.00 mm	BW040211.03970	CHF 60.20
3.98 mm	75.00 mm	+0.004	4.00 mm	19.00 mm	43.00 mm	BW040211.03980	CHF 60.20
3.99 mm	75.00 mm	+0.004	4.00 mm	19.00 mm	43.00 mm	BW040211.03990	CHF 60.20
4.00 mm	75.00 mm	H7	4.00 mm	19.00 mm	43.00 mm	BW040211.0400H7	CHF 53.60
4.00 mm	75.00 mm	H7	4.00 mm	19.00 mm	43.00 mm	BW043211.0400H7	CHF 64.40
4.01 mm	75.00 mm	+0.004	4.00 mm	19.00 mm	43.00 mm	BW040211.04010	CHF 60.20
4.02 mm	75.00 mm	+0.004	4.00 mm	19.00 mm	43.00 mm	BW040211.04020	CHF 60.20
4.03 mm	75.00 mm	+0.004	4.00 mm	19.00 mm	43.00 mm	BW040211.04030	CHF 60.20
4.50 mm	80.00 mm	H7	6.00 mm	21.00 mm	39.00 mm	BW040211.0450H7	CHF 53.60
4.97 mm	93.00 mm	+0.004	6.00 mm	23.00 mm	52.00 mm	BW040211.04970	CHF 65.90
4.98 mm	93.00 mm	+0.004	6.00 mm	23.00 mm	52.00 mm	BW040211.04980	CHF 65.90
4.99 mm	93.00 mm	+0.004	6.00 mm	23.00 mm	52.00 mm	BW040211.04990	CHF 65.90
5.00 mm	93.00 mm	H7	6.00 mm	23.00 mm	52.00 mm	BW040211.0500H7	CHF 60.20
5.00 mm	93.00 mm	H7	6.00 mm	23.00 mm	52.00 mm	BW043211.0500H7	CHF 72.10
5.01 mm	93.00 mm	+0.004	6.00 mm	23.00 mm	52.00 mm	BW040211.05010	CHF 65.90
5.02 mm	93.00 mm	+0.004	6.00 mm	23.00 mm	52.00 mm	BW040211.05020	CHF 65.90
5.03 mm	93.00 mm	+0.004	6.00 mm	23.00 mm	52.00 mm	BW040211.05030	CHF 65.90
5.50 mm	93.00 mm	H7	6.00 mm	26.00 mm	53.00 mm	BW040211.0550H7	CHF 60.20
5.97 mm	93.00 mm	+0.004	6.00 mm	26.00 mm	53.00 mm	BW040211.05970	CHF 71.40
5.98 mm	93.00 mm	+0.004	6.00 mm	26.00 mm	53.00 mm	BW040211.05980	CHF 71.40
5.99 mm	93.00 mm	+0.004	6.00 mm	26.00 mm	53.00 mm	BW040211.05990	CHF 71.40
6.00 mm	93.00 mm	H7	6.00 mm	26.00 mm	53.00 mm	BW040211.0600H7	CHF 64.65
6.00 mm	93.00 mm	H7	6.00 mm	26.00 mm	53.00 mm	BW043211.0600H7	CHF 77.60
6.01 mm	93.00 mm	+0.004	6.00 mm	26.00 mm	53.00 mm	BW040211.06010	CHF 71.40
6.02 mm	93.00 mm	+0.004	6.00 mm	26.00 mm	53.00 mm	BW040211.06020	CHF 71.40
6.03 mm	93.00 mm	+0.004	6.00 mm	26.00 mm	53.00 mm	BW040211.06030	CHF 71.40
6.50 mm	101.00 mm	H7	6.00 mm	28.00 mm	61.00 mm	BW040211.0650H7	CHF 64.65
7.00 mm	109.00 mm	H7	8.00 mm	31.00 mm	68.00 mm	BW040211.0700H7	CHF 71.40
7.00 mm	109.00 mm	H7	8.00 mm	31.00 mm	68.00 mm	BW043211.0700H7	CHF 102.20
7.50 mm	109.00 mm	H7	8.00 mm	31.00 mm	68.00 mm	BW040211.0750H7	CHF 71.40
7.97 mm	117.00 mm	+0.004	8.00 mm	33.00 mm	77.00 mm	BW040211.07970	CHF 89.85
7.98 mm	117.00 mm	+0.004	8.00 mm	33.00 mm	77.00 mm	BW040211.07980	CHF 89.85
7.99 mm	117.00 mm	+0.004	8.00 mm	33.00 mm	77.00 mm	BW040211.07990	CHF 89.85
8.00 mm	117.00 mm	H7	8.00 mm	33.00 mm	77.00 mm	BW040211.0800H7	CHF 83.20
8.00 mm	117.00 mm	H7	8.00 mm	33.00 mm	77.00 mm	BW043211.0800H7	CHF 99.70
8.01 mm	117.00 mm	+0.004	8.00 mm	33.00 mm	77.00 mm	BW040211.08010	CHF 89.85
8.02 mm	117.00 mm	+0.004	8.00 mm	33.00 mm	77.00 mm	BW040211.08020	CHF 89.85
8.03 mm	117.00 mm	+0.004	8.00 mm	33.00 mm	77.00 mm	BW040211.08030	CHF 89.85
8.04 mm	117.00 mm	+0.004	8.00 mm	33.00 mm	77.00 mm	BW040211.08040	CHF 89.85
8.50 mm	117.00 mm	H7	8.00 mm	33.00 mm	77.00 mm	BW040211.0850H7	CHF 83.20
9.00 mm	125.00 mm	H7	10.00 mm	36.00 mm	80.00 mm	BW040211.0900H7	CHF 91.10
9.00 mm	125.00 mm	H7	10.00 mm	36.00 mm	80.00 mm	BW043211.0900H7	CHF 129.10
9.50 mm	125.00 mm	H7	10.00 mm	36.00 mm	80.00 mm	BW040211.0950H7	CHF 91.10
9.97 mm	133.00 mm	+0.004	10.00 mm	38.00 mm	88.00 mm	BW040211.09970	CHF 104.85
9.98 mm	133.00 mm	+0.004	10.00 mm	38.00 mm	88.00 mm	BW040211.09980	CHF 104.85
9.99 mm	133.00 mm	+0.004	10.00 mm	38.00 mm	88.00 mm	BW040211.09990	CHF 104.85
10.00 mm	133.00 mm	H7	10.00 mm	38.00 mm	88.00 mm	BW040211.1000H7	CHF 98.15
10.00 mm	133.00 mm	H7	10.00 mm	38.00 mm	88.00 mm	BW043211.1000H7	CHF 117.55
10.01 mm	133.00 mm	+0.004	10.00 mm	38.00 mm	88.00 mm	BW040211.10010	CHF 104.85
10.02 mm	133.00 mm	+0.004	10.00 mm	38.00 mm	88.00 mm	BW040211.10020	CHF 104.85
10.03 mm	133.00 mm	+0.004	10.00 mm	38.00 mm	88.00 mm	BW040211.10030	CHF 104.85
10.04 mm	133.00 mm	+0.004	10.00 mm	38.00 mm	88.00 mm	BW040211.10040	CHF 104.85
10.05 mm	133.00 mm	+0.004	10.00 mm	38.00 mm	88.00 mm	BW040211.10050	CHF 104.85
10.50 mm	133.00 mm	H7	10.00 mm	38.00 mm	88.00 mm	BW040211.1050H7	CHF 98.15
11.00 mm	142.00 mm	H7	10.00 mm	41.00 mm	97.00 mm	BW040211.1100H7	CHF 125.85
11.97 mm	151.00 mm	+0.004	12.00 mm	44.00 mm	100.00 mm	BW040211.11970	CHF 125.85
11.98 mm	151.00 mm	+0.004	12.00 mm	44.00 mm	100.00 mm	BW040211.11980	CHF 125.85
11.99 mm	151.00 mm	+0.004	12.00 mm	44.00 mm	100.00 mm	BW040211.11990	CHF 125.85
12.00 mm	151.00 mm	H7	12.00 mm	44.00 mm	100.00 mm	BW040211.1200H7	CHF 125.85
12.00 mm	151.00 mm	H7	12.00 mm	44.00 mm	100.00 mm	BW043211.1200H7	CHF 150.85
12.01 mm	151.00 mm	+0.004	12.00 mm	44.00 mm	100.00 mm	BW040211.12010	CHF 125.85
12.02 mm	151.00 mm	+0.004	12.00 mm	44.00 mm	100.00 mm	BW040211.12020	CHF 125.85
12.03 mm	151.00 mm	+0.004	12.00 mm	44.00 mm	100.00 mm	BW040211.12030	CHF 125.85
12.04 mm	151.00 mm	+0.004	12.00 mm	44.00 mm	100.00 mm	BW040211.12040	CHF 125.85
12.05 mm	151.00 mm	+0.004	12.00 mm	44.00 mm	100.00 mm	BW040211.12050	CHF 125.85
13.00 mm	151.00 mm	H7	12.00 mm	44.00 mm	100.00 mm	BW040211.1300H7	CHF 123.55
14.00 mm	160.00 mm	H7	16.00 mm	19.00 mm	106.00 mm	BW040211.1400H7	CHF 123.55
15.00 mm	162.00 mm	H7	16.00 mm	19.00 mm	108.00 mm	BW040211.1500H7	CHF 131.45
16.00 mm	170.00 mm	H7	16.00 mm	22.00 mm	116.00 mm	BW040211.1600H7	CHF 134.95
17.00 mm	175.00 mm	H7	18.00 mm	22.00 mm	121.00 mm	BW040211.1700H7	CHF 138.60
18.00 mm	182.00 mm	H7	18.00 mm	22.00 mm	128.00 mm	BW040211.1800H7	CHF 139.65
19.00 mm	189.00 mm	H7	20.00 mm	22.00 mm	133.00 mm	BW040211.1900H7	CHF 145.45
20.00 mm	195.00 mm	H7	20.00 mm	22.00 mm	139.00 mm	BW040211.2000H7	CHF 147.65

Materialeignung

P	P1	P2	P3	P4	P5	P6
P

M	M1	M2	M3
M

K	K1	K2	K3	K4
K

N	N1	N2	N3	N4
N

S	S1	S2	S3	S4	S5
S

H	H1	H2	H3
H
